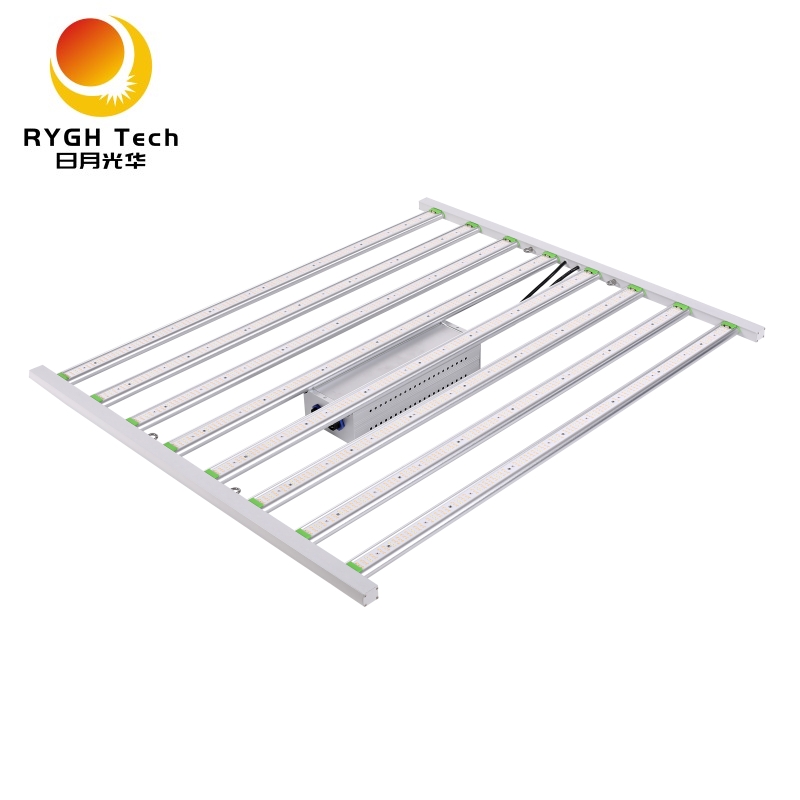

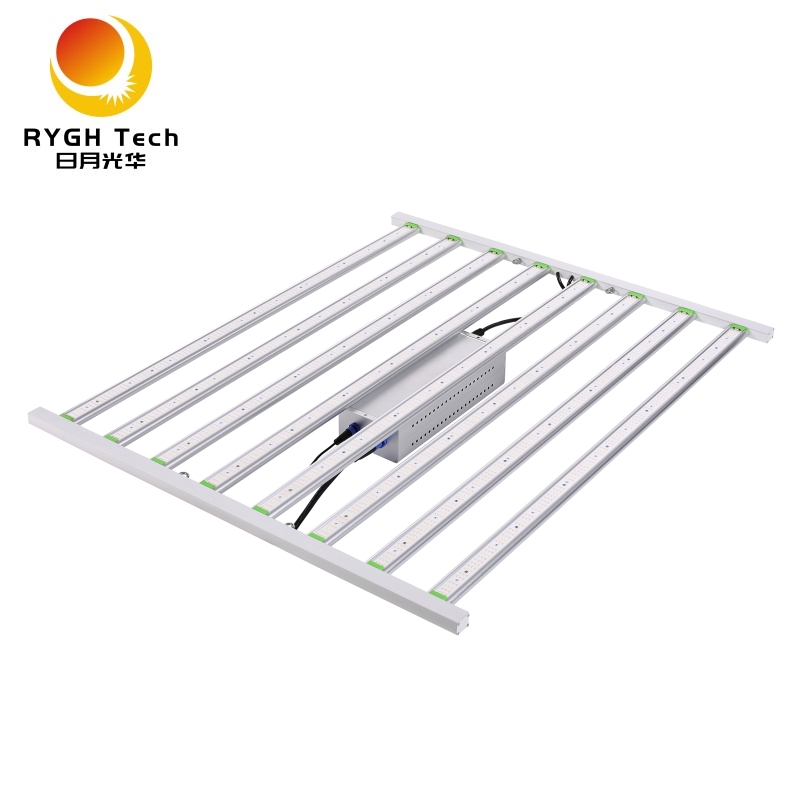

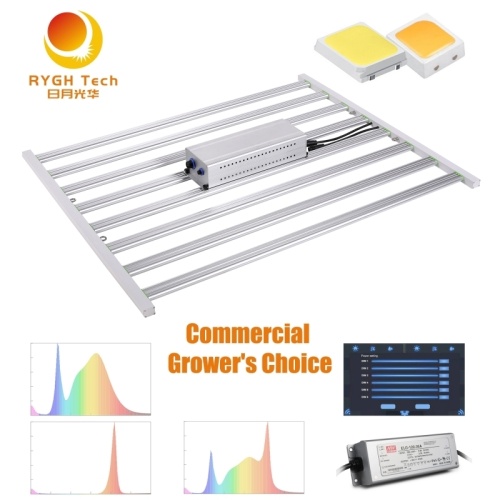

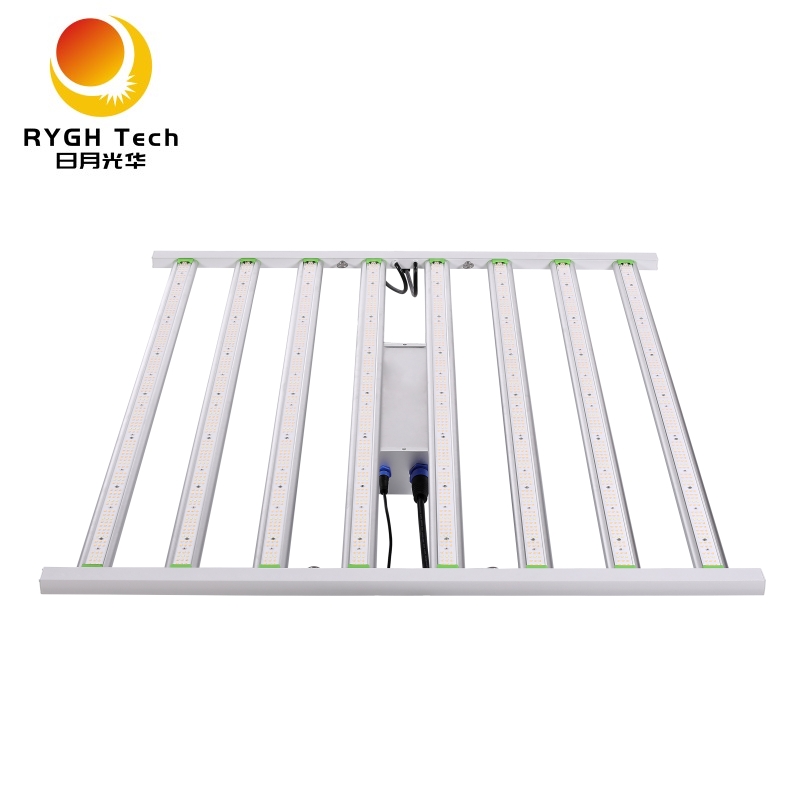

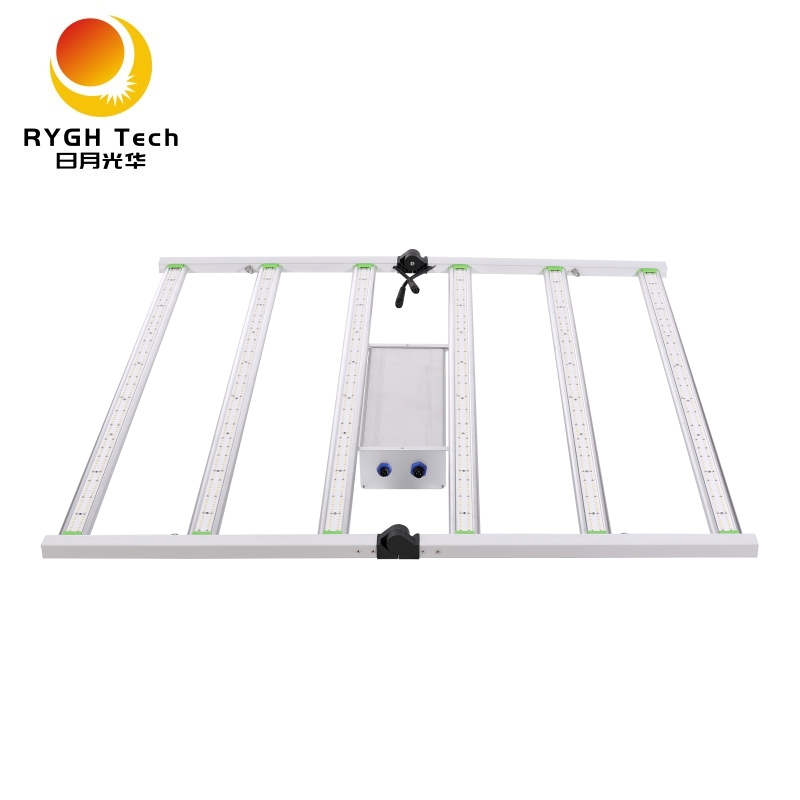

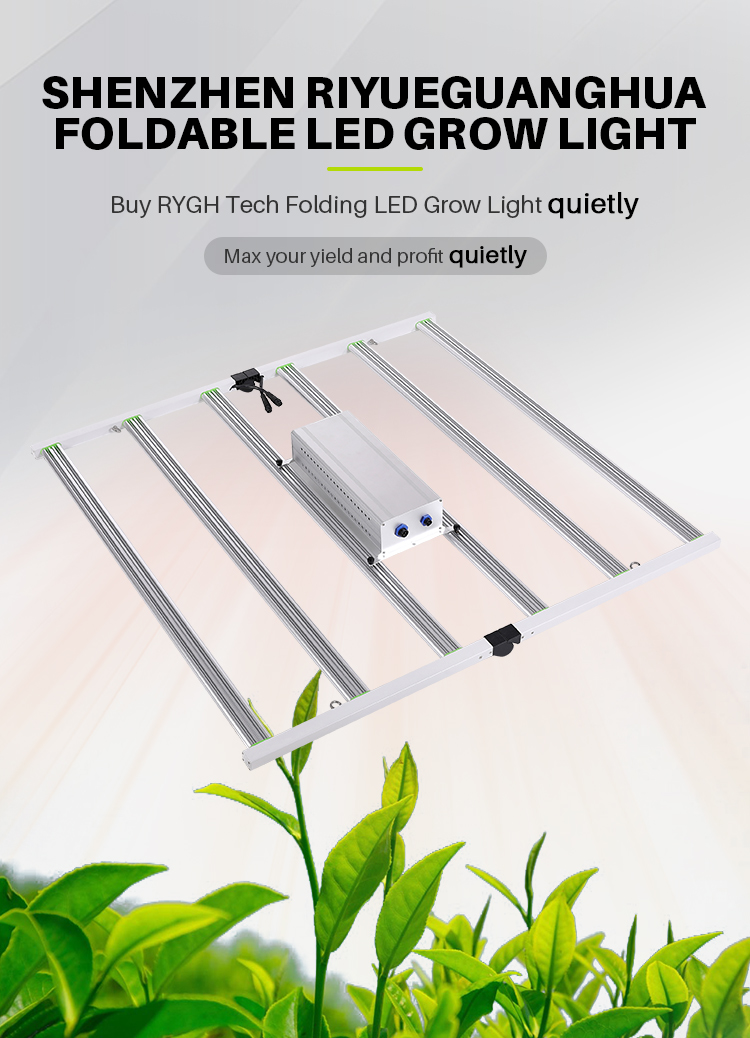

High yield 1000w led grow light full spectrum

Product Description

Model No.	RYGH-ZG6	RYGH-ZG8	RYGH-ZG10
Wattage	600W	800W	1000W
Bars	6 bars	8 bars	10 bars
Input Voltage	AC 85-305V	AC 85-305V	AC 85-305V
LEDs	Top bin 3030 leds	Top bin 3030 leds	Top bin 3030 leds
LED Driver	Zhihe/MEANWELL/SOSEN /INVENTRONICS	Zhihe/MEANWELL/SOSEN /INVENTRONICS	Zhihe/MEANWELL/SOSEN /INVENTRONICS
Spectrum	3000K/5000K /RED 660nm (UV 395nm /IR 730nm can be customized)	3000K/5000K /RED 660nm (UV 395nm /IR 730nm can be customized)	3000K/5000K /RED 660nm (UV 395nm /IR 730nm can be customized)
PPF	1560 umol/s	2080 umol/s	2600 umol/s

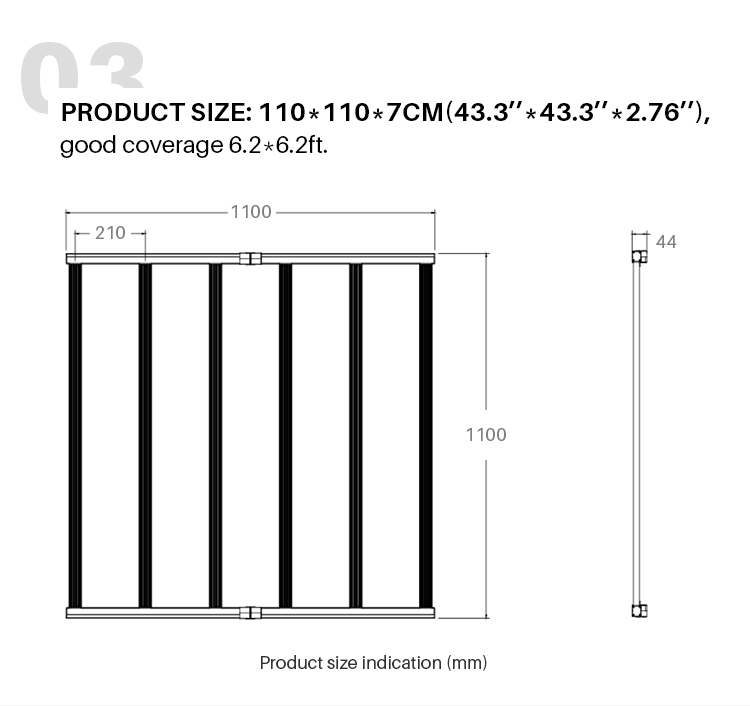

Size	1100*1100*70mm	1100*1120*70mm	1100*1100*70mm
PF	>0.95	>0.95	>0.95
Beam Angle	120°	120°	120°
Dimming	1-10V	1-10V	1-10V
Material	Pure Aluminum	Pure Aluminum	Pure Aluminum

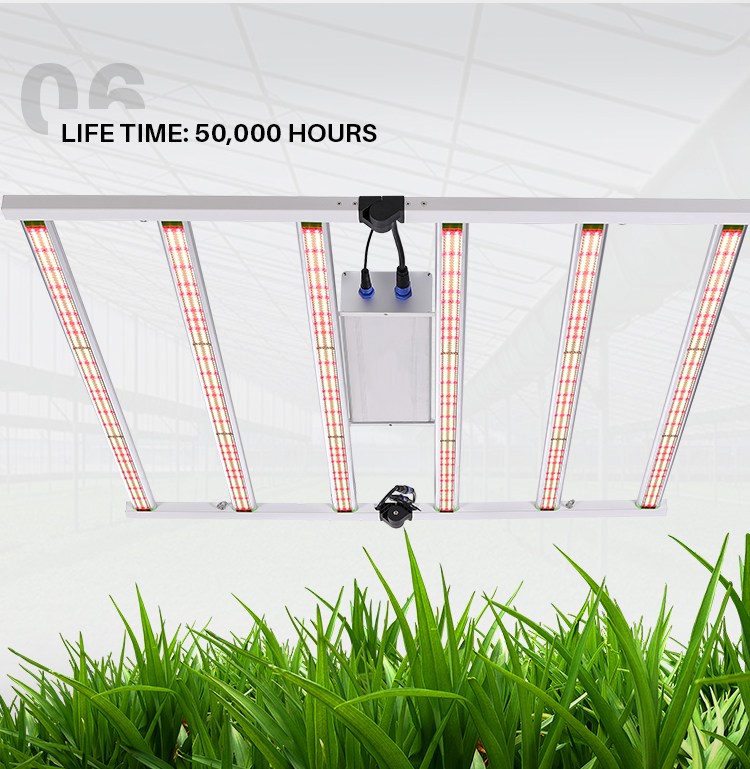

Life Time	50000 hours	50000 hours	50000 hours
Warranty	3/5 years	3/5 years	3/5 years
Application	Medical Plant, Vegetable, Fruit, Green Plant, Grow Tent, Greenhouse	Medical Plant, Vegetable, Fruit, Green Plant, Grow Tent, Greenhouse	Medical Plant, Vegetable, Fruit, Green Plant, Grow Tent, Greenhouse

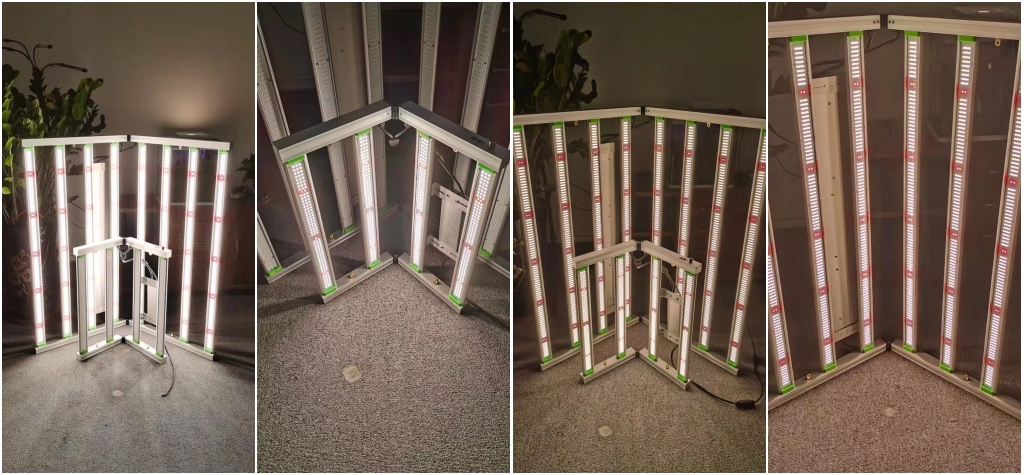

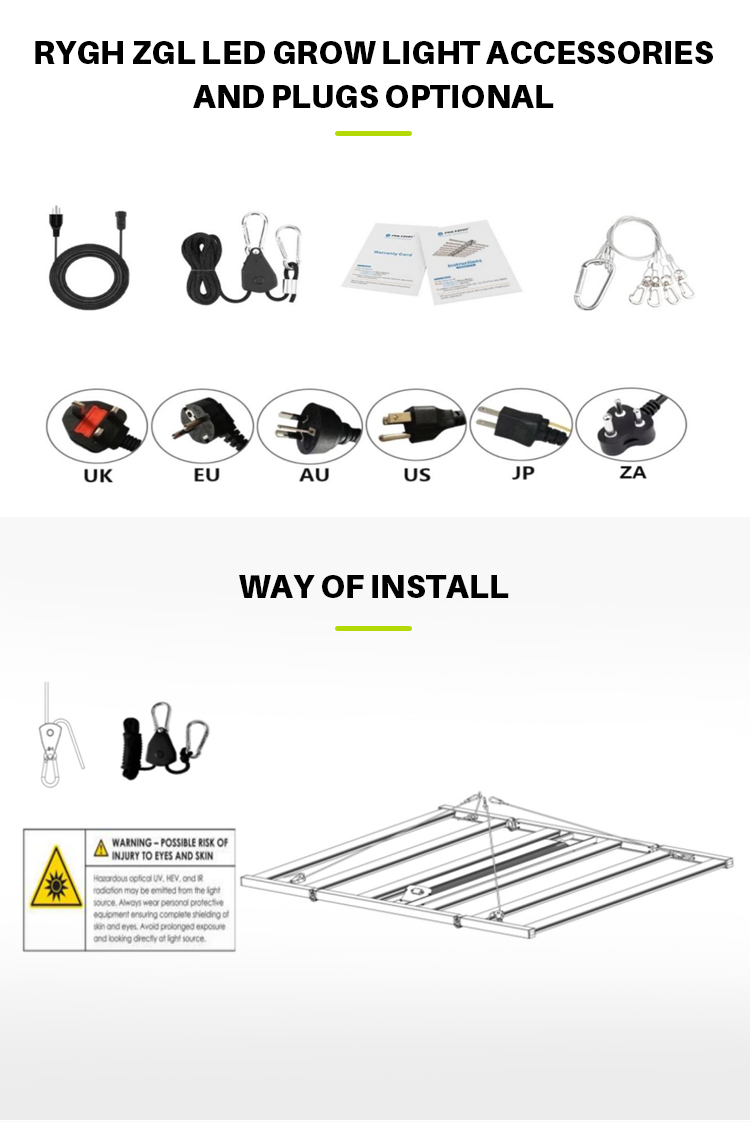

RYGH LED Grow Light Bar way of install

RYGH Tech LED Grow Light way of control

RYGH LED Grow light bar smart master controller set up

1, Set up power

2, Set up time

Company Profile

00:00

00:17

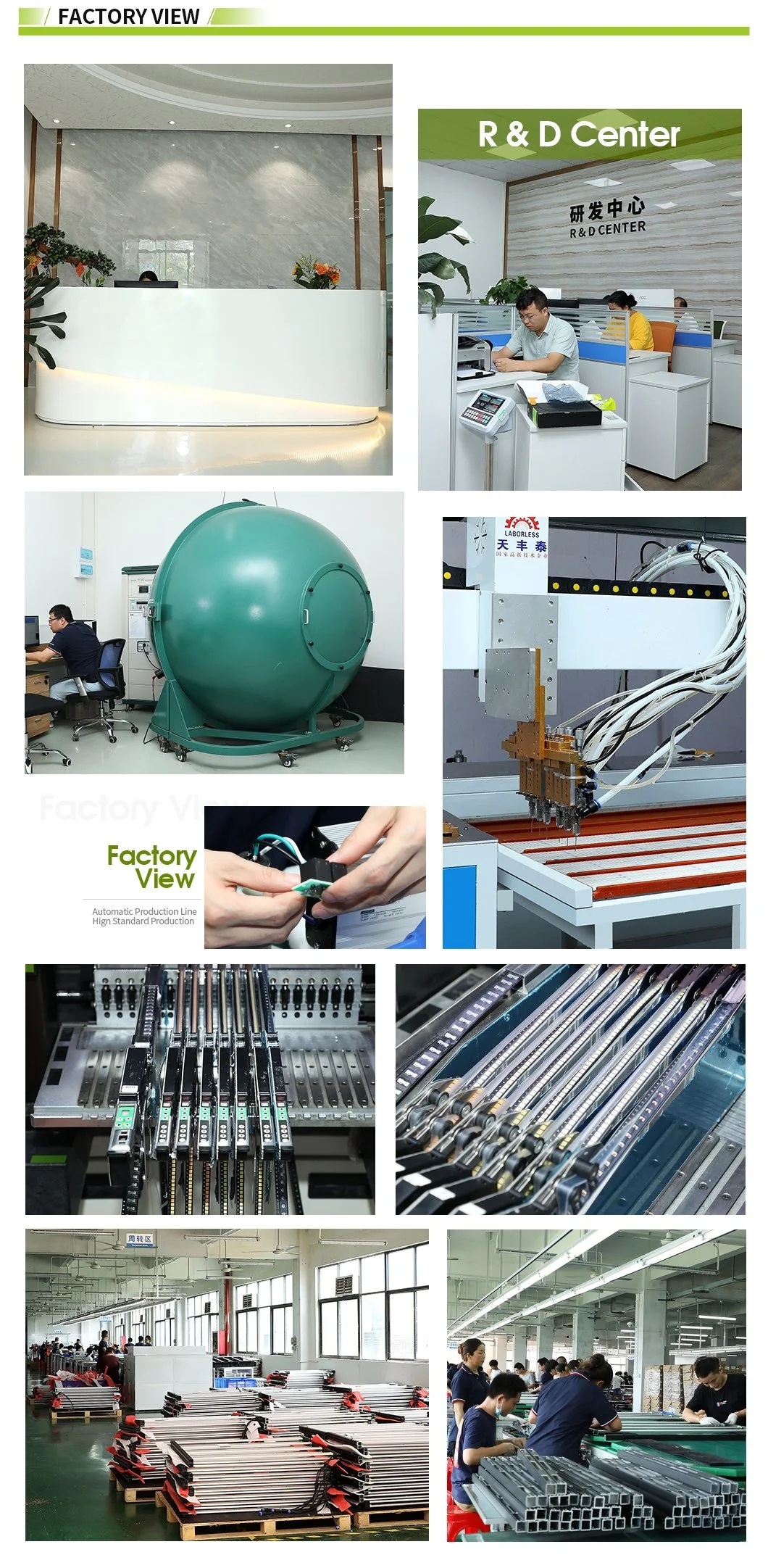

Shenzhen Riyueguanghua Technology Co.,Limited Factory View

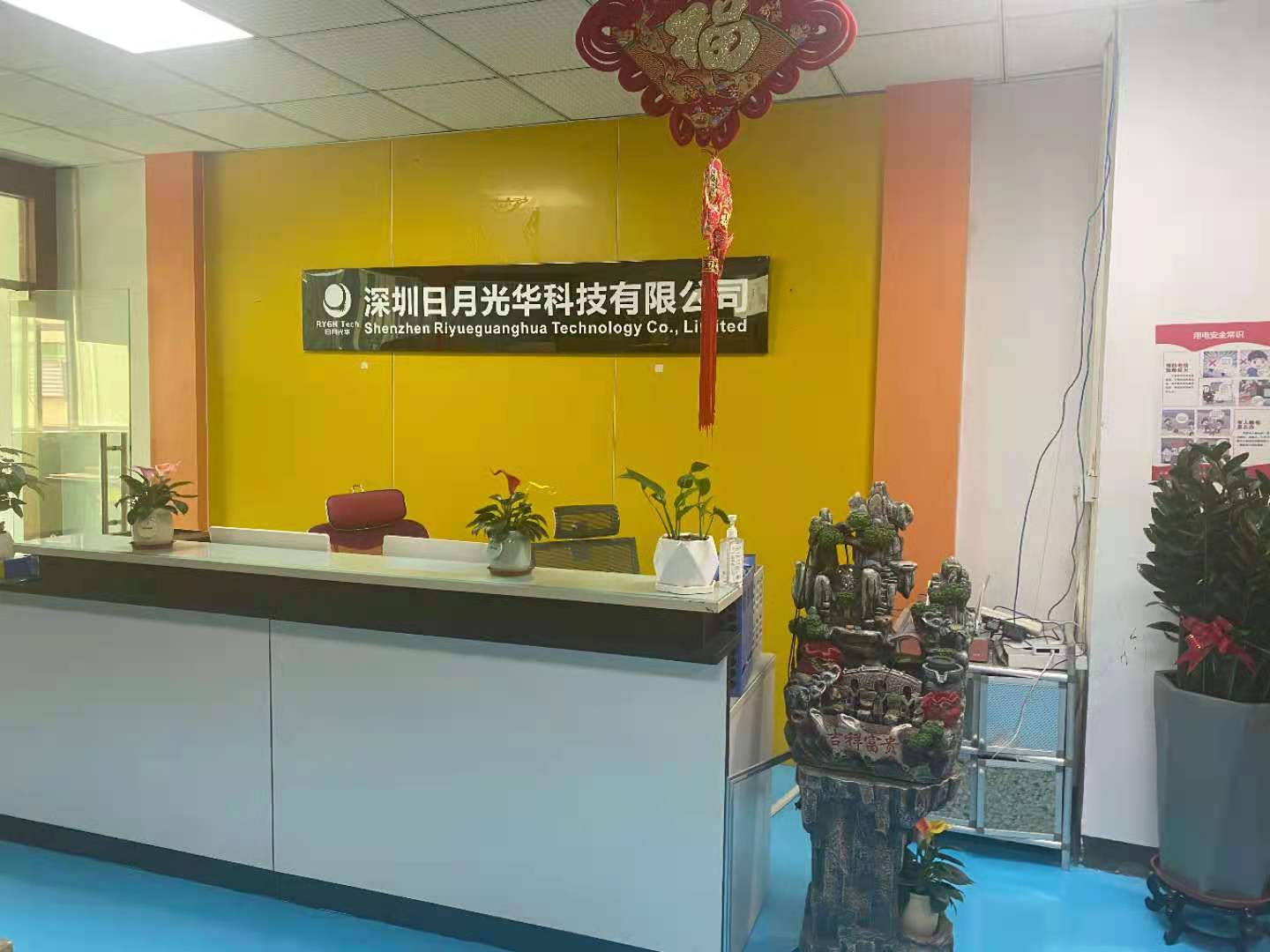

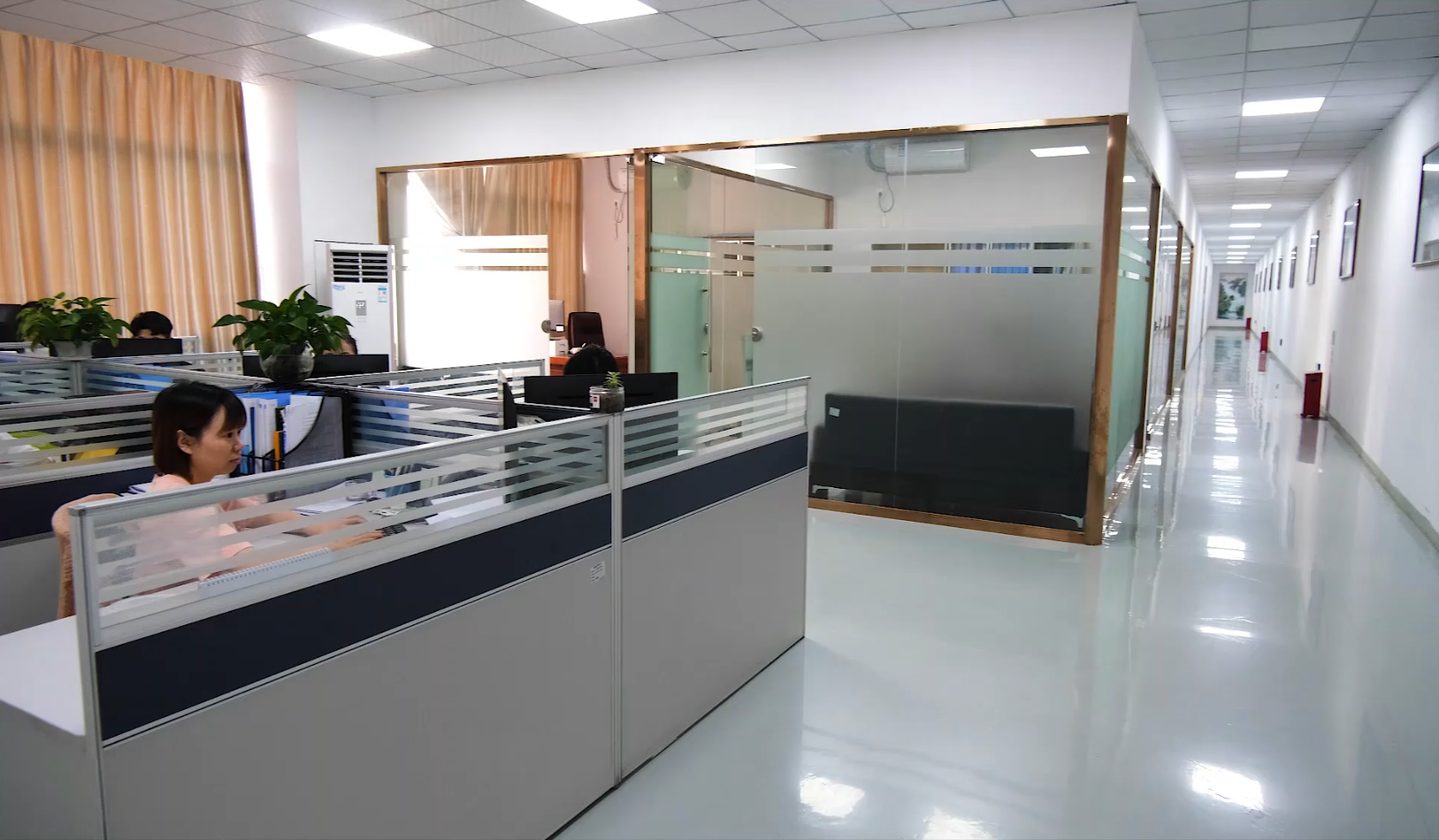

1, Reception

2, Research and Development Center

3, Integrating sphere spectrometer

4, Automatic glue machine

5, Japanese SMT Machine

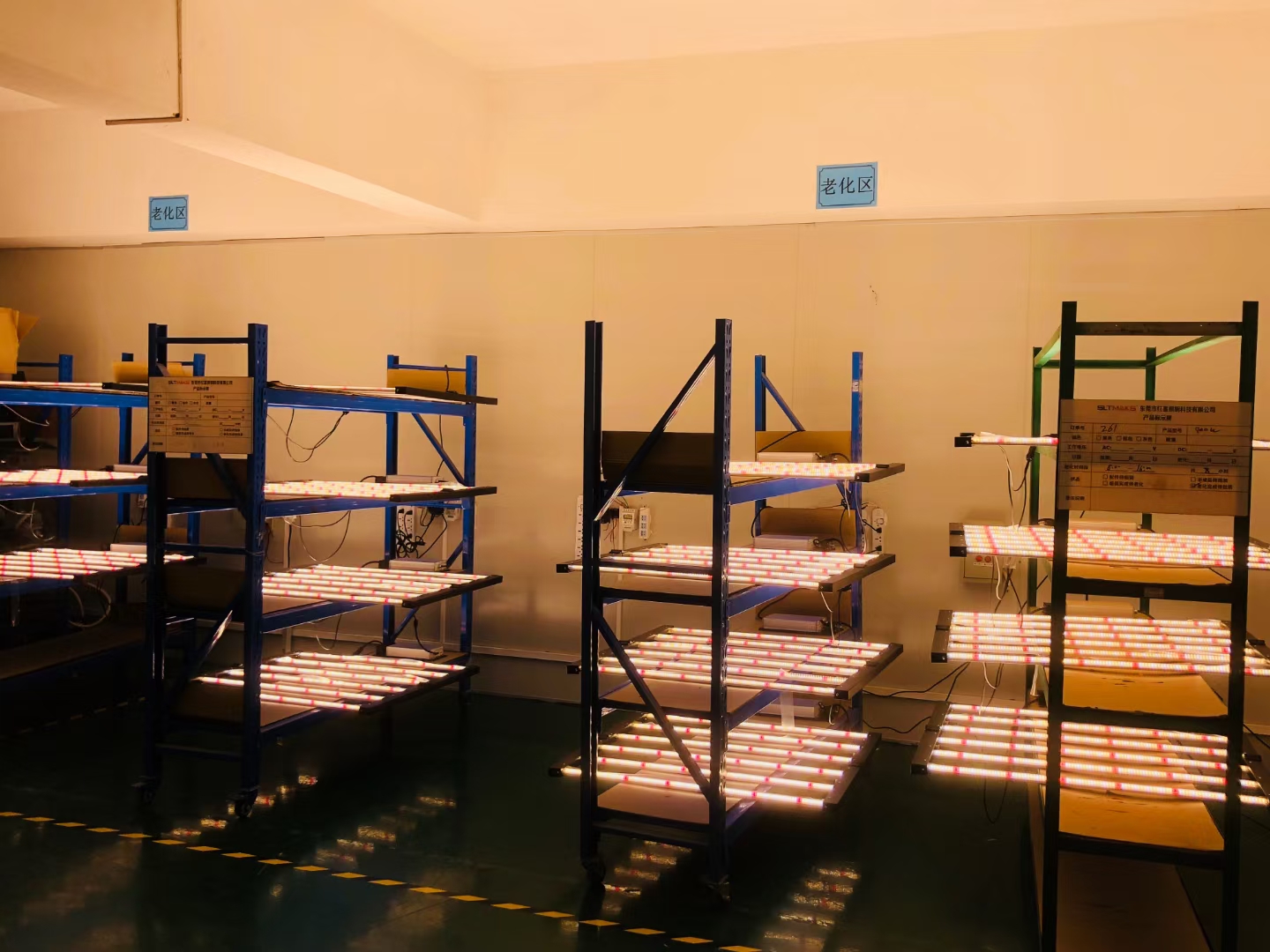

6, Factory work shop

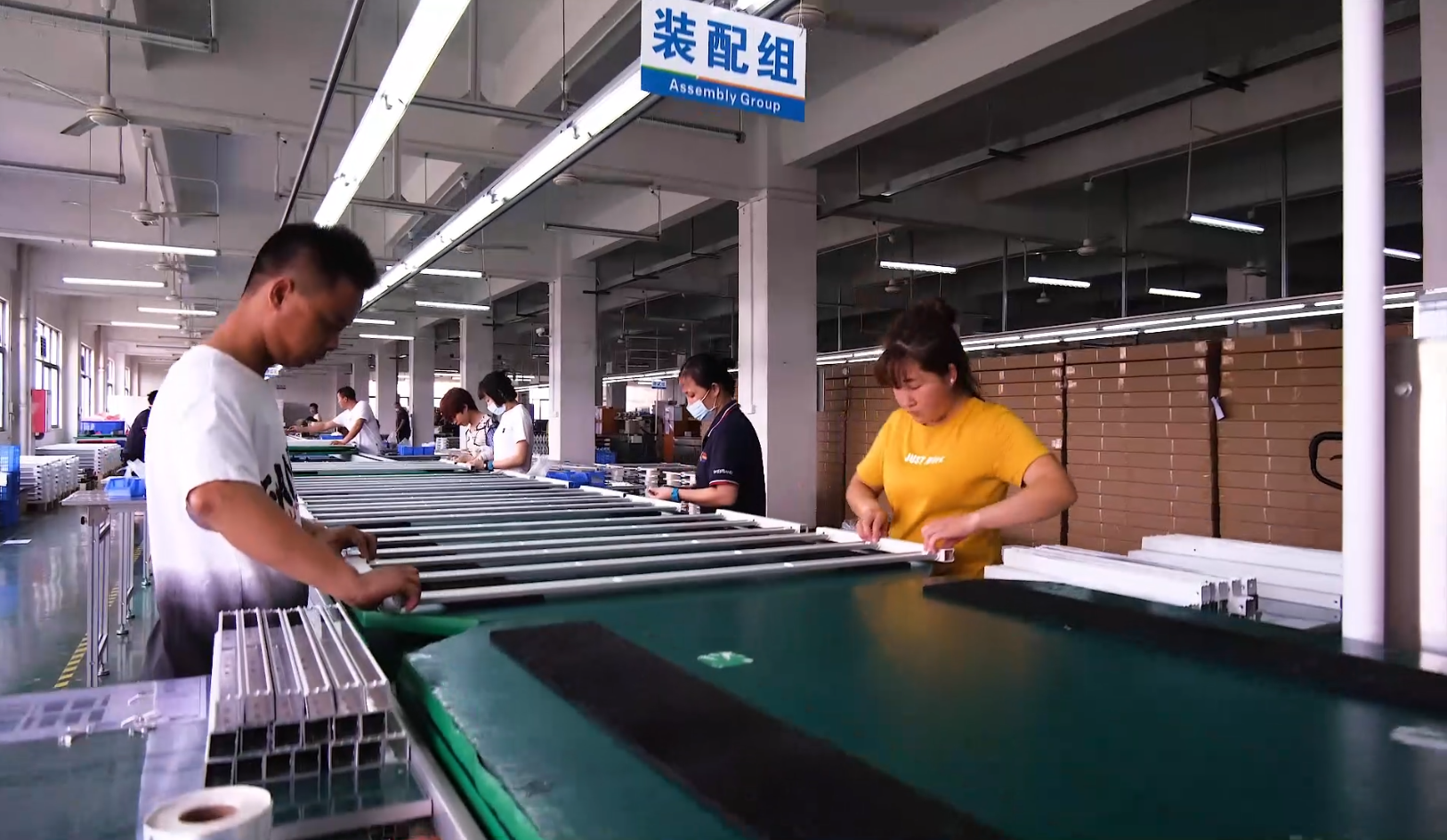

7, Assemble lines

Shenzhen RIYUEGUANGHUA Technology Co., Limited is a professional LED Light manufacturer which is specialized in researching, designing, manufacturing and exporting LED Lighting. Our company has high-quality professional technicians and advanced modern production equipment. We strive to make every piece of high quality LED Light. Our products have passed CE, RoHS certifications. All the products researched and developed by RIYUEGUANGHUA have reached the advanced level in the international market. From the beginning, RIYUEGUANGHUA takes quality and profession as its service standards. Its management principle is to persistently endeavor; to persistently pursuit and to unremittingly create. Provide clients with high quality products, with a full set of after service, with much competitive prices compared with competitors, so as to meet the satisfaction of different clients; win clients' compliments and supports. At the same time, company is one of the designated OEM/ODM factories in led lamps. RIYUEGUANGHUA occupies an area of 1500 square meters. We works with the LED lighting manufacturers, lighting engineering companies, lighting importers and retailers in USA, Mexico, Argentina, Indonasia, Fiji, Venezuela,Panama, South Africa, Mauritius, Spain, Danmark, etc. We have worked on led grow lighting for commercial growers, street led lighting projects, industrial area led lighting projects, air port lighting projects, factory lighing projects in Mexico, South Africa, and Austrania, etc. Our clients develops due to our good quality products and rapid after sales service, and we develops together with our clients. Some clients began to copperate with us since 2010, and finally the partnership between us has grown beyond business cooperation, and we even become good friends. We believe that honesty is the best policy. We insist that we must be honesty to clients, and to ourselves, and put it into work, production, and life. Our aim is to be a respectable led lighting manufacturer, and also respectable people in LED lighting industry, and to make RIYUEGUANGHUA a reliable manufacturer and partner in commercial lighting,industrial lighting and outdoor lighting. The annuel revenue of our company last year was around 2,000,000 US Dollars. Relying on the advantages of the strategic union of the company, RIYUEGUANGHUA have developed into a genuine cross-century modern enterprise with resource sharing, division & cooperation, advantages complementary and high-performance operation. Look to future, we will spare no efforts to serve clients. We will grasp the chance of LED industry and create even more accomplishment to pay back the society. Meanwhile, promote company's development. Warmly welcome clients all over the world contact us for business.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(45.00%),South America(30.00%),Northern Europe(7.00%),Domestic Market(4.00%),Africa(4.00%),Southeast Asia(4.00%),Mid East(3.00%),Eastern Europe(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LED Grow Light,LED Street Light,Solar LED Street Light,LED Flood Light,LED Bay Light

4. why should you buy from us not from other suppliers?
OEM & ODM Available 15 years experienced engineers Sincere and honest in service

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German

RYGH Tech Industry-Leading Solution:

1. Industry top efficacy and light output - 2.9 μmol/j ;

2. Built with the best parts ,Top Bin Sam-sung & Os-ram Chip and brand
driver for higher efficacy and longer lifespan;

3. Most trusty Full-cycle Sun-like Spectrum with proven result, optimized for
rapid growth and complete plant development;

4. 3 Channels Dimmers, VEG switch , Bloom switch ,UV switch separately controlled,
Freely adjust the lamps according to different growing stages;

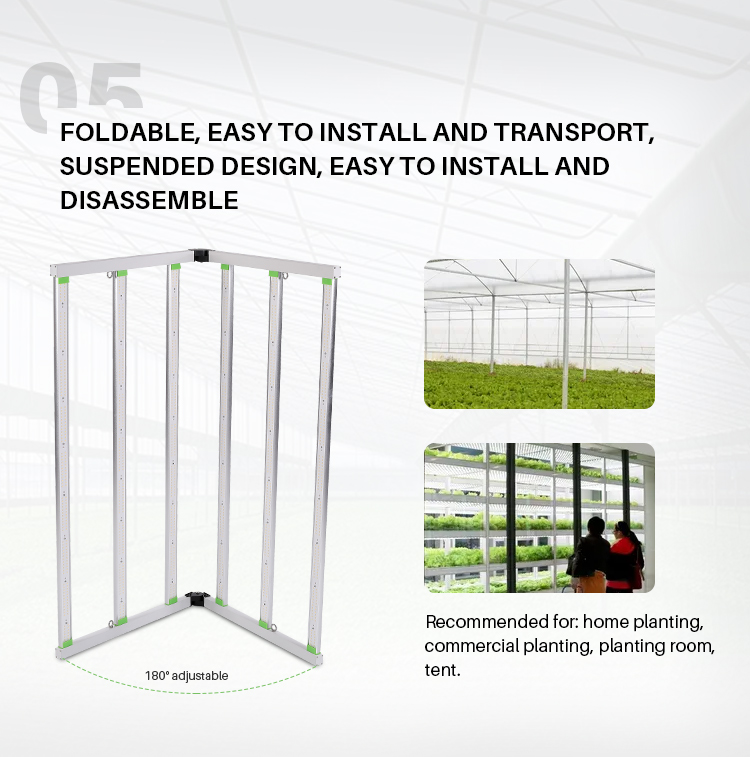

5. Plug & Play design, The light bars are 'folding' making for
super easy assembly and maintenance.

6. Optional Daisy Chain Group Controller, idea for Group Control (max 100 lamps) &Timing and
Dimmable Function.

7. 5 Years Warranty, Make sure give you need from a high-quality grow lights – at a price that affordable. For
any questions,feel free to e-mail us and we will help you resolve it. Quality backed by our ironclad.

OUR MISSION:
01.Delivering the highest quality, plant-loving light to your crops is one of our two primary aims at Grow Light Science.

02.Our second aim is to offer lower LED fixture cost. Our strategy is to give your plants what they need to flourish while giving you what you need most--exceptional ROI and more money in your pocket.

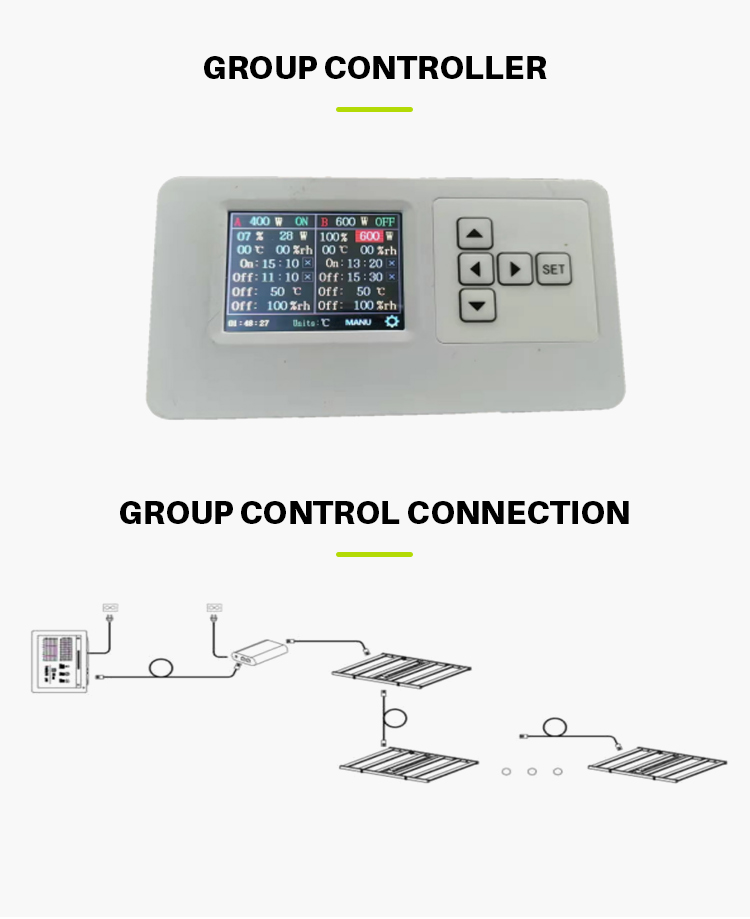

RYGH Master controller for group control

RYGH Tech Control system: rx485 signal intelligent control system

1: Input AC100-240V output DC 12V 2A adapter 1

2: Control signal mode: rx485 signal output, long distance transmission

3: Intelligent temperature monitoring

4: Intelligent humidity monitoring

5: Intelligent time division function

6: Two channels of rx485 signal output.

7: Two 2m low resistance network port lines.

8: Function Description: with our company's intelligent control board, it can be realized, 100 sets of each circuit can be connected in series continuously, and each controller can carry 200 sets of lamps. The functions of real shunt turn off, shunt brightness adjustment, time division timing switch and time division brightness can be realized. If the signal amplifier is loaded, the overall control of more than 400 sets can be realized

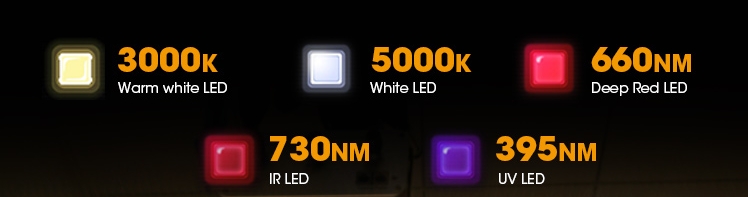

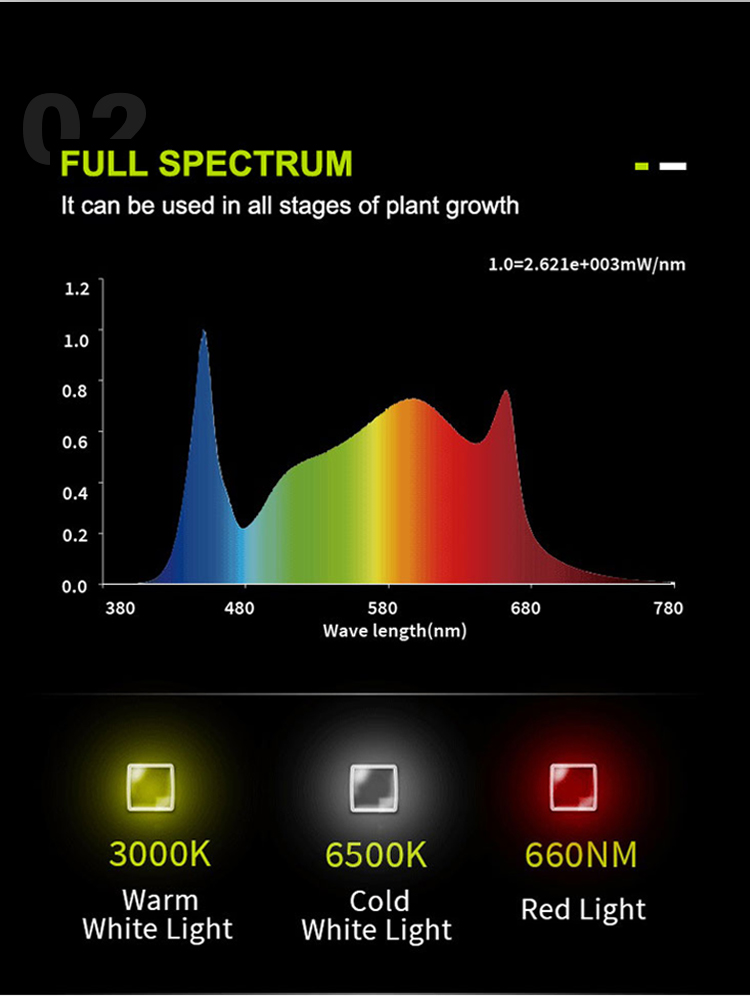

RYGH LED Grow Bar Spectrum

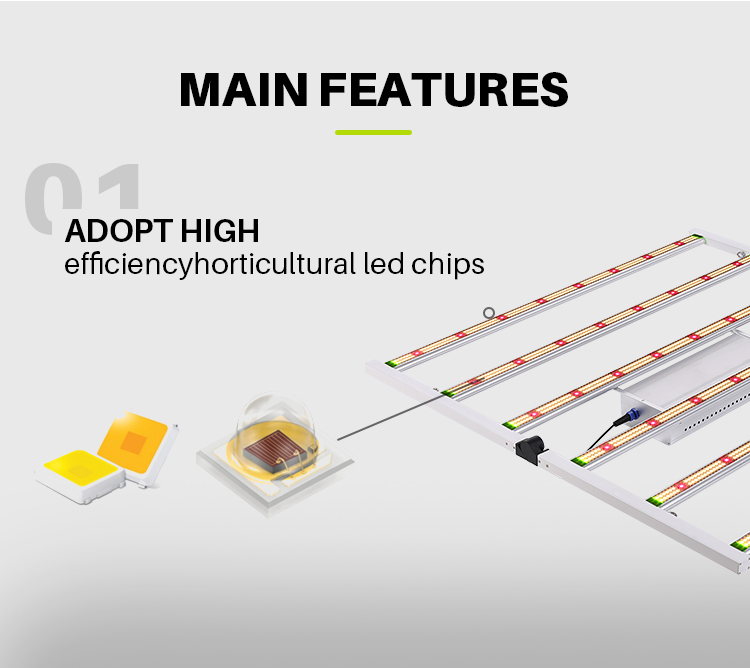

RYGH Tech LED Grow light bar use:

3000K: SAM Bead LM301B or LM281B

5000K: SAM Bead LM301B or LM281B

660nm: OS-RAM Bead

730nm and 395nm: Refond

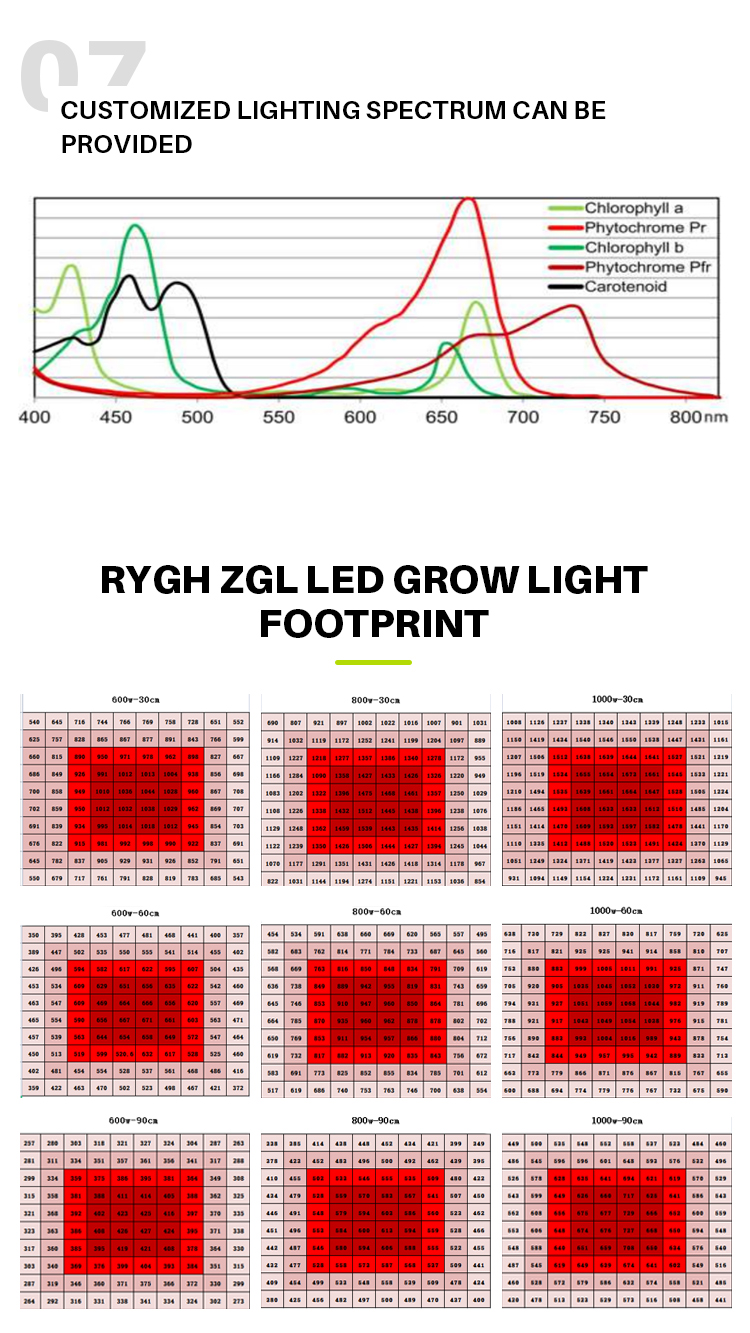

RYGH Tech LED Grow Light Bar Spectrum:

RYGH Tech LED Grow Light Bar Spectrum: Selected Spectrum For Optimum Growth

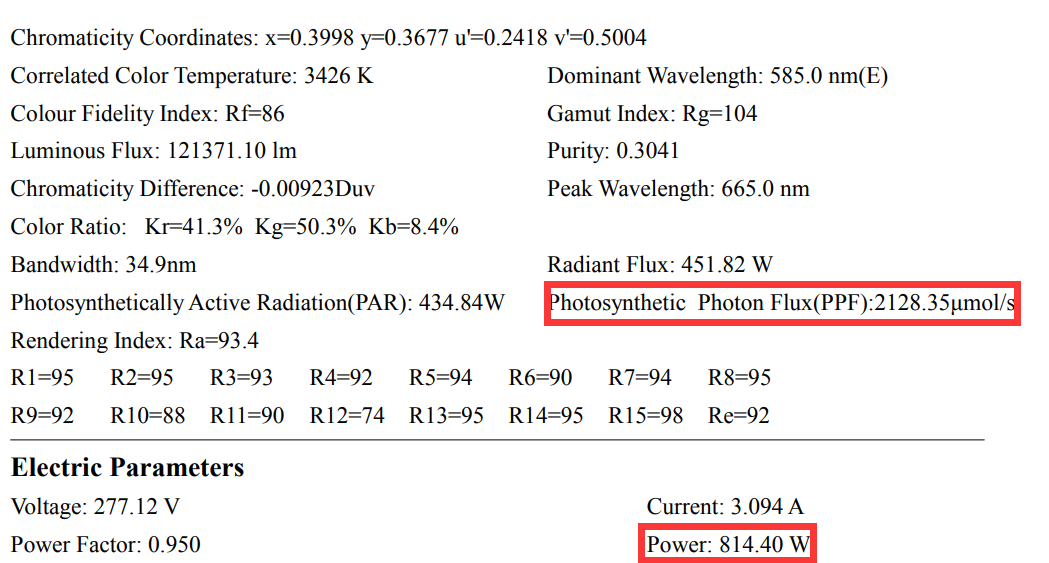

800W LED Grow Light Test Report:

Power: 814.40W

PPF: 2128.35umol/s

PPE: 2.61

RYGH Tech led grow light yield

RYGH Tech led grow light yield up to 2.0 grams per watt, while HPS grow light yield up to 1.2 grams per watt.

Increase Profit Significantly: 1. Save 100%-200% on lighting compared to other brands; 2. Reduce HVAC and electricity costs by 50-60%; 3.Make you get 30% Higher Yield compare the traditional lamps, Increases revenue with better quality flower and higher yield(maximize crop yield by growing vertical).

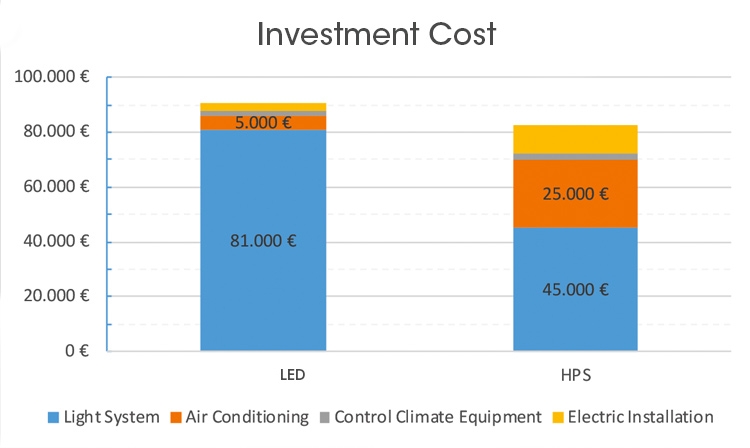

RYGH Tech LED Grow Light Investment Cost

The benefits of RYGH Tech have a direct and straightforward impact on the business performance. In this page,we present the main numbers of two 100m 2 indoor growroom; one with RYGH Tech LED ,another with HPS. The investment in light equipment is greater with RYGH Tech LED . However, the RYGH Tech room saves 65% of power compared to HPS and do not need that much investment in control climate and air conditioning.

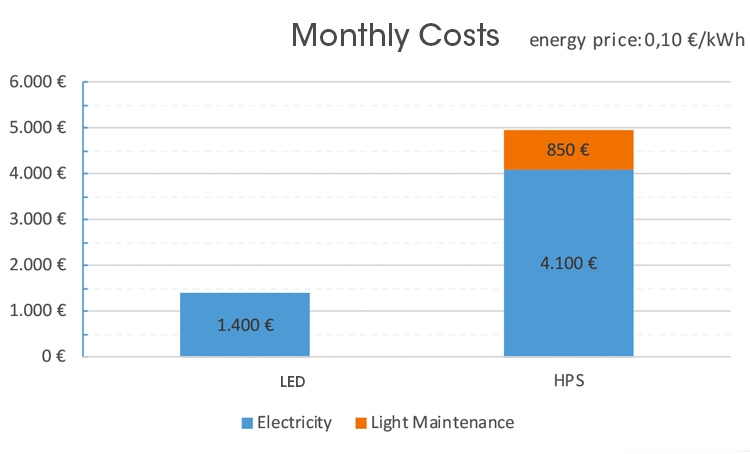

RYGH Tech LED Grow Light Monthly Costs

With RYGH Tech LED yield is increased with a better quality product. Your cus-tomers will appreciate the difference. At the end, RYGH Tech room harvest 30% more while reducing the operation costs.

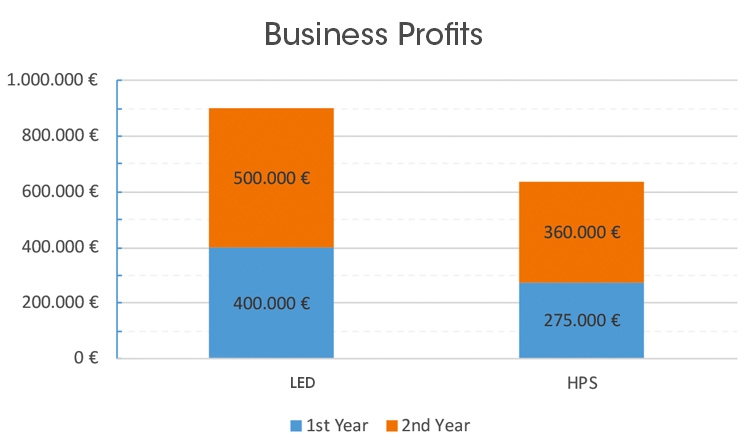

RYGH Tech LED Grow Light Business Profits

Finally, with HPS you need to change the bulbs once or twice a year, producing an environmental dangerous residue. With RYGH Tech LED you save time and money while protecting the environment.

Substantial increase in profits:

Compared with traditional growth lights, the yield increased by 30%. Compared with traditional growth lights, 38% of the optical power consumption is lower. Compared with traditional growth lights, PPFD is 50% higher. Compared with traditional HPS HID lamps, HVAC cost is reduced by 50%

Features & Benefits

Form factor The RYGH ZGL folding LED growth lamp can be designed to seamlessly adapt to the existing HPS layout. It is not only an energy-efficient LED, but also designed to provide sustained growth power. It is designed as a real fixture alternative to help the industrial revolution. The RYGH ZGL folding LED growth lamp has wiring and electrical requirements for most indoor growth environments, which means that the compact ceiling lamp can greatly limit the cost and downtime required to convert 20 or even 10000 lighting devices.

Output and efficiency

Compared with 1000 W de and single ended HPS lamps, it helps crops thrive by providing more plant available light and up to 20% energy saving to the canopy. The RYGH ZGL folding LED growth lamp operates at 600-1000 watts of power and outputs 1600-2600 µmol/ s, which achieves the astonishing effect of 2.6 2.6 µmol /s per watt. Your lighting energy use drops, and your plants absorb the photons that supply them.

External control

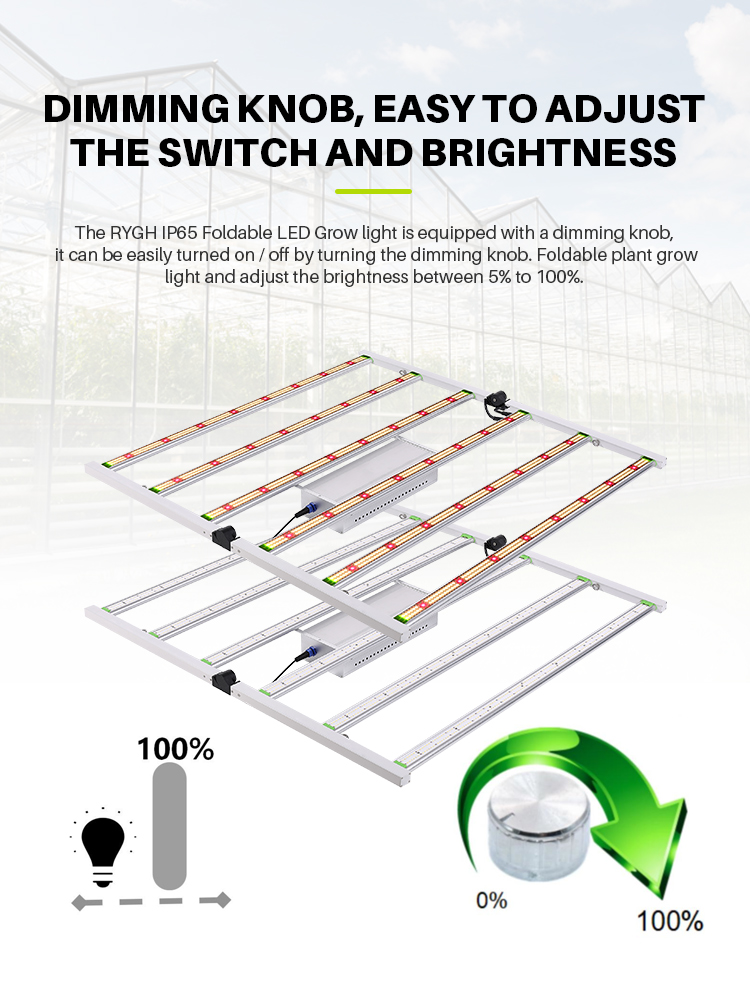

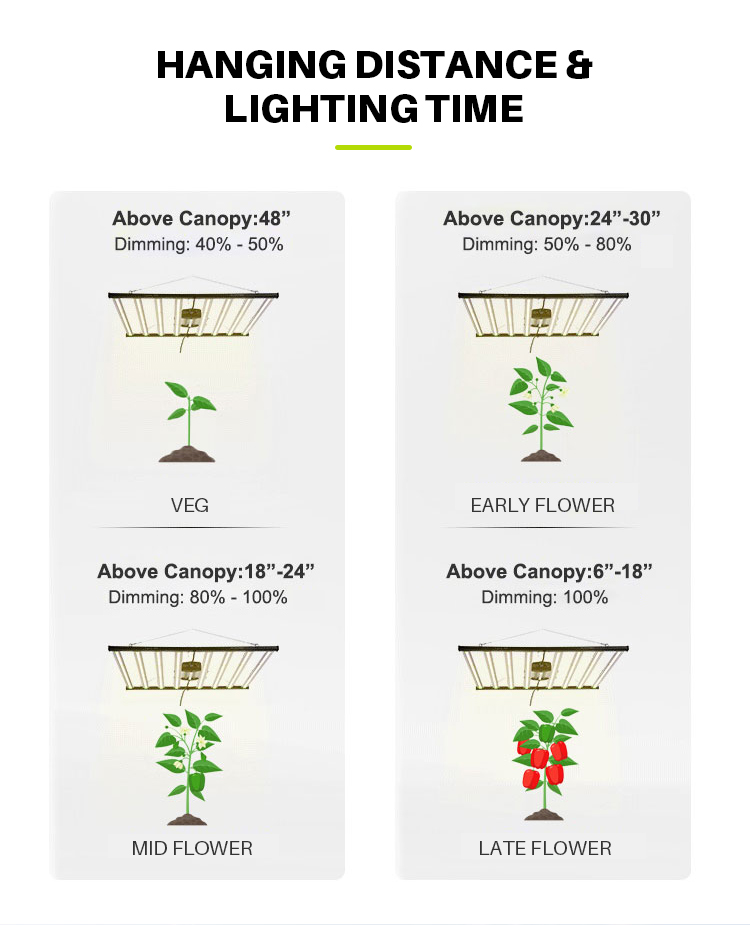

Adding a master controller (sold separately) can turn your fixture into a multifunctional power unit to grow crops that like light or maintain yield, both using the same equipment. The dimming range of 5% to 100% allows you to reproduce sunrise, sunset and changing day lengths, creating the ideal lighting level for anything you grow at each stage of growth. The controller embedded in each lamp can control up to 50 lamps in each control channel and help maintain a stable output from light to light.

Durability

Each RYGH ZGL folding LED Grow Light is designed to withstand the worst growth conditions. As one of the highest environmental temperature grades in the market, the temperature readings up to 55 55° C can not match the RYGH ZGL foldable LED grow light. IP65 wet rating means that each fixture is protected against dust, oil and even water flow. This allows you to easily fight the accumulation of sulfur and other residues through the ejector, while ensuring the safety of personnel and equipment. No matter where you grow, you can install it in a low room, on a vertical shelf, on a rolling bench, or even in a tent. The RYGH ZGL folding LED growth lamp is designed for excellent performance in any environment.

More information

Spectrum The standard LED can reproduce the blue and red required for plant growth. The performance of RYGH ZGL folding led long light lamp exceeds that of traditional LED, which can be extended from 400 nm to 700 nm. It has incredible uniformity, enhances the blue and red wavelengths, and achieves a beneficial green balance between the two. The advanced driver that powers each diode helps to create a wide, full spectrum light source that can induce vigorous growth when plant needs change, with amazing accuracy and amazing fixture life.

Uniformity

Under the RYGH ZGL folding LED grow light, the light intensity of hundreds of plants remained unchanged from edge to edge. The wide optical system creates almost the same lighting mode as HPS lamps and improves performance through a uniform lighting range from left to right. This is an amazing level of consistency that helps unlZGLk plant growth and can change the world.

OUR MISSION:

01. Providing the highest quality and plant loving light for your crops is one of the two main objectives of our planting optical science.

02. Our second goal is to provide lower cost LED lamps. Our strategy is to give your plants the prosperity they need, and give you what you need most - excellent return on investment and more money in your pZGLket. Comparison Of 100 Square Indoor Grow Room The benefits of RYGH Tech have a direct impact on business performance. In this page, we show the main quantities of two 100m2 indoor growth chambers; One is the rygh tech led and the other is the HPS. RYGH tech LEDs invest more in lighting. However, compared with HPS, rygh technology room saves 65% power and does not need to make much investment in climate control and air conditioning. Through RYGH tech, LED output and product quality are improved. Your customers will appreciate the difference. last, RYGH technology room reaps more than 30% while reducing operating costs. Finally, with HPS, you need to replace the bulb once or twice a year, resulting in residues harmful to the environment. With RYGH tech, you can save time and money while protecting the environment.     RYGH Tech LED Grow Light RYGH Tech was founded in 2013. Since 2010, it has been committed to R & D, manufacturing and application of top qualified LED. We are a professional manufacturer specializing in the design and production of high-performance Sam-sung Cr-ees&Os-ram diode LED growth lamp, from 100 watts to 1000 watts. These products are widely used in planting tents, family gardens, potted plants, Under the leadership of RYGH Tech, there is a professional team that does its best to provide high-quality products, efficient production time, good after-sales service and reasonable price. Our two leaders have been involved in the LED industry since 2010. They continue to learn and finally master the core technology from the beginning. They see too many companies fail in the past and learn from it. Now they know the management mode very well, especially that quality is everything. There is no quality and no RYGH Tech led. Our sales team is a group of young people full of passion and vitality, Be loyal to solving problems, study the market, develop customer needs, treat customers like family members, and give customers the best solutions. Thanks to their efforts, our products are exported to 20 countries and regions such as the United States, Canada, Britain, Germany, Japan, Italy, Spain, France and Australia. Please feel free to contact us for more information about RYGH Tech! We are here waiting for your inquiry and visit to deal with the win-win long-term cooperation!



RYGH ZGL LED Grow Light

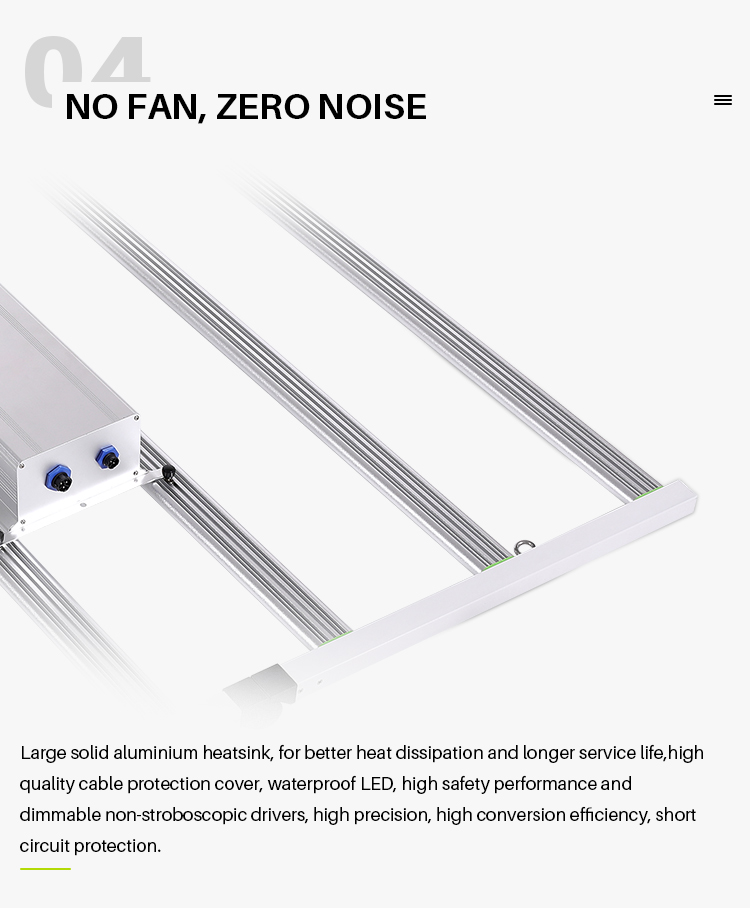

1 pure aluminum radiator

2 larger and more powerful 3.0mm LED

3 up to 20% energy savings compared to 1000 W single ended HPS units (based on average watts per unit)

4 industry 2.5:1 HPS replacement

5 compared with 1000 W HPS lamps (based on the average wattage of each lamp), the output of 1600 µ mol / S is impressive and can provide more light at an energy saving rate of up to 20%

6 the compact design fits perfectly with the HPS layout, reducing the pain of replacing hundreds of components at a time

7 broad spectrum design to provide dark blue, hot red and balanced green for long-term plant growth

8 wide and uniform light distribution, matching with HPS light projection, and improving the coverage of peripheral plants

9 daisy chain up to 50 devices per control channel, enabling you to centrally control the entire space with consistent performance

10 IP65 wet grade and UL 8800 standard

11 2-5 years limited warranty
