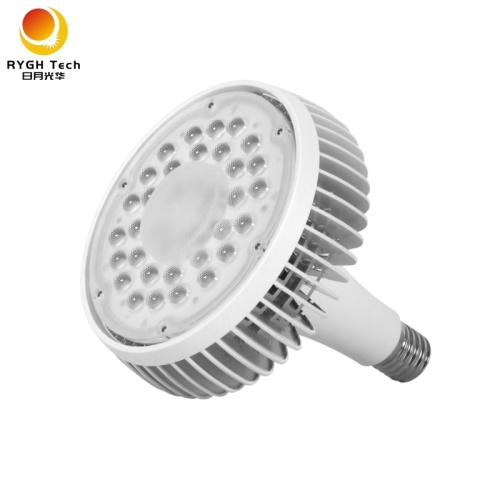

60W 100W 150W driverless DOB led bay light with 5 years warranty

60W 100W 150W driverless DOB led bay light with 5 years warranty

$19.15 - $35.13/Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Guangzhou, Zhongshan

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 pcs / month
Supply Ability:	5000 pcs / month
Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
HS Code:	9405409000
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Zhongshan

Product Description

100w Led Bay Light1 Jpg 150w Led Bay Light3 Jpg 60w Led Bay Light6 Jpg

product Features

Ø Invention patent and appearance patent：ZLXXXXXXXXXX ；

Ø AL1070 aluminum fin heat dissipation material

Ø E40 standard thread interface;

Ø Fin internal riveting interconnect technology, stable structure and simple appearance Quick rotation lock structure of lamp holder and lamp body, easy to maintain and package；

Ø Surface electrophoretic paint protection；

Ø Beam angle:60°/90°

Ø CE certification

Ø L70B50>30000Hrs, 3 years warranty；

ufo-led bay light1

ufo-led bay light2 ufo-led bay light3 ufo-led baylight4

Electrical Parameters

1	Input Power（W）	60W	100W	150W	200W
2	Input Voltage/ Frequency	220~240Vac 50/60Hz	220-240Vac 50/60Hz	220-240Vac 50/60Hz	220-240Vac 50/60Hz
3	Input Current（A）	Max0.28	Max 0.47	Max 0.7	Max 0.94
4	DC operation possible?	/	/	/	/
5	DC-Voltage operation range	/	/	/	/
6	Driver Efficiency	/	/	/	/
7	PF	≥0.90	≥0.90	≥0.90	≥0.90
8	Control Mode	On-off(non dimmable)
9	Driver Type	Linear DOB	Linear DOB	Linear DOB	Linear DOB
10	Driver Brand
11	Driver Surge Protection	L/N-PE 2KV , L-N 4KV	L/N-PE 2KV , L-N 4KV	L/N-PE 2KV, L-N 4KV	L/N-PE 2KV, L-N 4KV
12	With SPD?	/	/	/	/
13	Surge Protection	N/A	N/A	N/A	N/A
14	THD	<20%	<20%	<20%	<20%
15	Odd Harmonics	IEC 61000-3-2 Class C
16	Inrush Current at 230V	TBD	TBD	TBD	TBD
17	Inrush charge time Th50[us]	TBD	TBD	TBD	TBD
18	Driver Protection	/	/	/	/
19	Start Time	<0.5S	<0.5S	<0.5S	<0.5S
20	Output current	/	/	/	/
21	Flicker	100%	100%	100%	100%
22	consumption	/	/	/	/
23	Short circuit power	N/A	N/A	N/A	N/A
24	Integrated switch or dimmer?	/	/	/	/
25	Dimming function	None 0-10V. DALI TIMER Leading edge phase control. Step Dim Trailing edge phase control
26	Color matching function	NO
27	intelligent control	Blue tooth Zigbee RF Microwave Infrared Light induction Touch sensitive NO
28	Sensor Distance	/
29	Connection	None　 Quick Disconnect Wago　 Terminal Block
30	Number of socket	No 2　 4
31	Emergency Lighting charging Max power and Current	/	/	/	/
32	Emergency time	/	/	/	/

Optical Parameters

1	Led Type	SMD2835	SMD2835	SMD2835	SMD2835
2	Led Brand	made in China	made in China	made in China	made in China
3	Led Qty	84	135	198	270
4	Beam Angle（°）	60°/90°	60°/90°	60°/90°	60°/90°
5	CCT（K）	3985±275K (ANCI)
6	X,Y Chromaticity coordinate values	X:0.3818 Y:0.3797
7	CRI	Ra>80
8	SDCM	< 6
9	Glare-UGR	/
10	Luminaire Efficiency（%）	/
11	luminaire efficacy of luminaire lm/W	80	90	90	90
12	Luminous Flux(lm)	4800	9000	13500	18000
13	Energy consumption	/	/	/	/
14	EEI Energy Efficiency Index	/	/	/	/
15	Energy efficiency class	/	/	/	/
16	Lumen Maintenance(6000h)	/	/	/	/

HL DOB UFO LED Bay Light Application

The products are widely used in large-scale lighting such as shipyards, mines, workshops, warehouses, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasiums and other places requiring industrial, mining lighting and the replacement of traditional HID and CFL lamps.

Advantages:
1, Our engineer has 15 years experience in led lighting field
2, 6 years focus on AC linear led lighting
3, 3nd Generation Linear IC from Top Taiwan Team-Vendor of AURORA Lighting
4, Driverless led lighting already worked 5-6 years all over the world, failure rate <0.5%, you can sleep well at night because very few complaints
5, Working voltage max 300V, other company max 265V
6, With Over voltage protection, over temperature protection, short circuit protection, over load protection
7, Pass Safety Certification, EMC/EMI
8, 4KVA Surge Protecion on board, 6KVA and 10KVA SPD available
9, 3-5 years warranty,
10, Can be work in harsh environment from minus 30 degrees to 50 degrees
11, High voltage, low working current, no capacitor, no shocking current when turning on, very few interference on power grid, low temperature on power lines
12, Easy for maintenance, easy to change a DOB if failed
13, 99.9% solid components, life time 100, 000 hours, much longer life time than LED
14,much higher cost performance than MEANWELL driver, lumileds and OSRAM Chip warranty 5 years
15, No spark when switching, , which can be used as explosion proof lighting
16, We know and protect our product like our child, and vitnessed the change and improvement of our product in last 6 years
17, We insist on updating our DOB Technology
18, Best SKD solution, you do not need engineer but only need to solder the cable as well as a screw driver.
