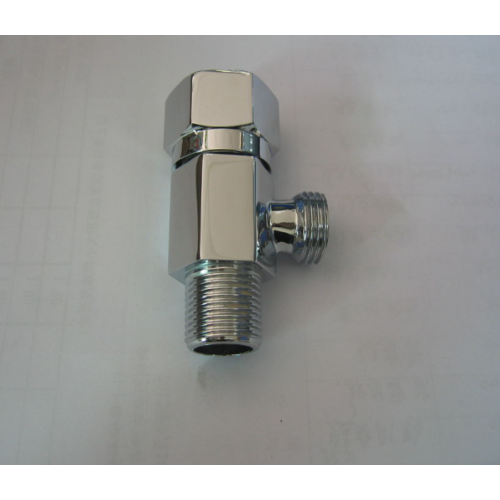

Faucet Accessory Angle Valve with Chrome Plated

Modern Brass Angle Valve is made from high purity brass body to ensure a lifetime of durability. 1/2" Mips x 1/2" Mips non compression outlet controls water flow to household plumbing fixtures.The Angle valves most used where the water pipe enters the room from the floor.Brass Check Valve is a single handle quick-open switch.Ceramic cartridge,quality guarantee time:5 years no leakage.You are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home. Modern appearance and high quality solid brass construction.

Specification:

Product Name: Angle Globe Valve

Model No.: HN-820

Connection size: G1/2 inch

Brand: Handy

Material: Brass

Surface finished: Chrome

Easy to install and clean.

Installation: wall mounted.

Valve type: One in one out

Service conditions:
1) The working pressure of the product is 0.05MPa-0.9MPa
2) The working temperature is more than 0°

3) Don't use vapor when supply hot water.
4) The temperature is no more than 85° when supply hot water.

Attention:

1. Before installing, you must clean up the water supply pipe and check the thread specification of the pipe to ensure it can match the angle Seat Valve.

2. When installing the joints, the pipe thread should be wrapped with the appropriate raw material to ensure the reliability of sealing.

3. Adjust the direction of the water outlet to make angle valve in the right place.

4. Please take effective heating measures to your home water equipment when environmental temperature is less than 0℃.

5. Please set up drainage facilities to avoid water leaking.

6. Please check the angle valve is solid or not after you have installed, then turn on the switch and check the connected of the water mains to ensure whether leak or not.

 Package included:

1 x Angle valve
