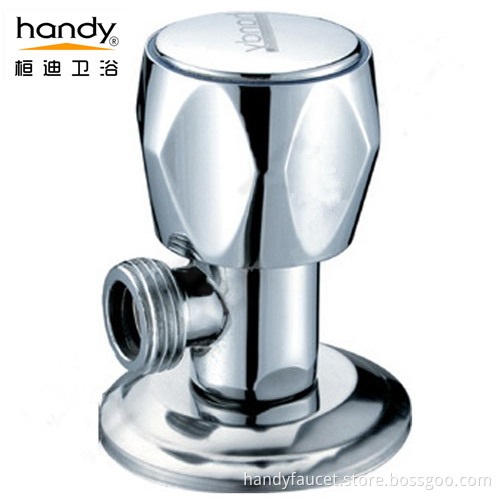

Wash Basin Angle Valve Connector

Brass Angle Valve for Lavatory Faucet&Kitchen Mixer Taps

Suitable for the connection of stainless steel hose and  brass faucet, adjusting the water pressure or controlling the flow of water; wall-mounted single-hole vertical wall installation, single-handle independent switch design; using imported ceramic valve Core, 5 years of watertight warranty; the main body is made of high-purity copper; the surface of the angle valves is made of 5 layers of electroplating. After a strict 48-hour salt spray test, the coating is still bright and durable; the water outlet is the G1/2 inch connecting pipe of the national standard. use.

Specification:

Product Name: Angle valve HN-804

Material: Brass

Surface finished: Polished Chrome color

Connection size: G1/2 inch

Valve type: One in one out

Installation: wall mounted

Easy to install and clean.

Weight: 165g

Package included:

1 x Angle valve

1 x Decorative cover

Service conditions:
1) The working pressure of the product is 0.05MPa-0.9MPa
2) The working temperature is more than 0°

3) Don't use vapor when supply hot water.
4) The temperature is no more than 85° when supply hot water.

Attention:

1. Before installing, you must clean up the water supply pipe and check the thread specification of the pipe to ensure it can match the Angle Seat Valve.

2. When installing the joints, the pipe thread should be wrapped with the appropriate raw material to ensure the reliability of sealing.

3. Adjust the direction of the water outlet to make Brass Check Valve in the right place.

4. Please take effective heating measures to your home water equipment when environmental temperature is less than 0℃.

5. Please set up drainage facilities to avoid water leaking.

6. Please check the angle valve is solid or not after you have installed, then turn on the switch and check the connected of the water mains to ensure whether leak or not.
