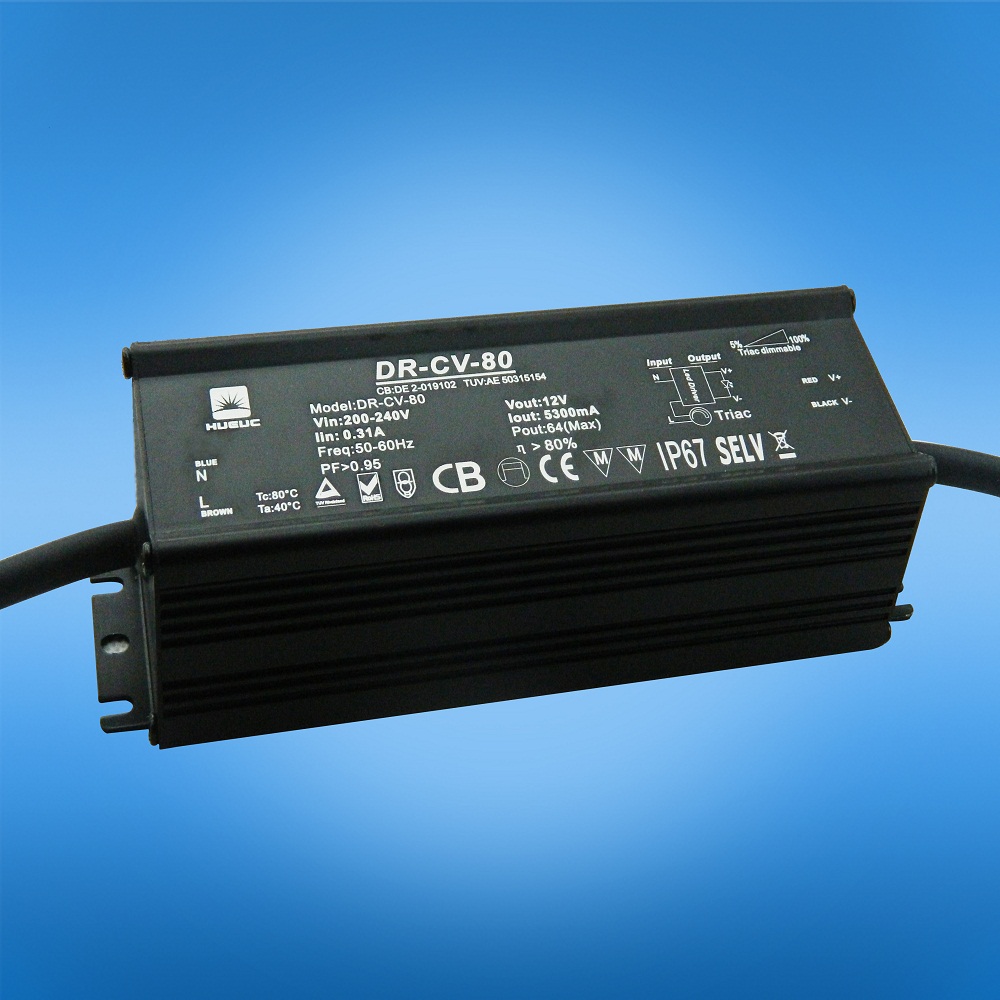

Hot sales 80W DC12V LED 0-10v dimming driver

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 5 Days

Transportation:: Ocean, Air, EXPRESS

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000pcs/day
Supply Ability:	10000pcs/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	EXW
Certificate:	ISO9001
HS Code:	85044014
Transportation:	Ocean,Air,EXPRESS
Port:	Shenzhen

Product Description

Part Number: 80W DC12V LED 0-10v dimming driver C

Technical parameters

Operating characteristic:
• Compliant with SELV standards with output voltage<60DC
• Efficiency>85%
• Soft start and low ripple current output
• Fit for class I protection lighting fixture
• Have multiple protection for output exception such as open circuit,short circuit,over load etc.
• Approved by over-temperature protection certification so it can be fit for class F lighting fixture
• Compliant with international standards sush as safety,EMI,anti-interference etc.
• New power supply and appearance design,solid case protection & waterproof IP67 and extreme heat dissipation that is easy installation & design of lamps.
• Work is stable,Flicker free and long service life,5years warranty.

Model: pv-cv-100 DC Voltage: 12VDC
DC current: 6.67A Rated power: 80W Input power: 100-120VAC 200-240VAC Efficiency: 88%
Size: 184*56*39mm Warranty: 5 years Weight: 1kg/piece
Packing: 12pcs/ Carton G. W.: 12kg/carton Carton size: 33*21*40cm

Constant Current
Model	Dimming Principle	Input Voltage (V/AC)	Output Power (W)	Output Current (mA)±5%	Output Voltage (V/DC)	No Load (Vmax)	PF	Efficiency	Notes
PV-CV-80	0-10V dimmable 1-10v dimmable	100-240	80	1067	38-75	80	>0.95	80-86%
				1460	28-55	60
				1860	22-43	48
				2285	18-35	40

waterproof 80w 0-10v dimamble led driver, waterproof 80w triac dimamble led driver,waterproof 80w 0-10v dimamble led driver

Trade Terms

1. Payment: T/T, Western Union and paypal;

2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;

3. Sample can be delivered within 3days;

4. Shipping freight are quoted under your requests;

5. Shipping port: Shenzhen, Mainland China;

6. Discounts are offered based on order quantities;

7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
Neutral Package, or customer color box package upon requirements.

Packaging

Protection:

² Short circuit / over current / over voltage/ Over load/ Over temperature

Tips:

1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product

2. Do not short circuit.

3.Please refer to the instruction manual before use.

4. If not sure how to use the product,please contact us before use.

Quality guarantee:

1.The warranty period is 5 years.

2. If the product have any question during the time, we can fix it or change the same to you.

3.We can design the product according to your requirement. If you want to guarantee over 5 years,

the price could be negotiated separately.

Storage:

1.Keep Dry, don`t shock

2.Storage in below 35°C,humidity less than 75% environment

Packing for:Bubble bag ,inner box,and carton etc

about sample and mass production:

Dear buyer arrange the sample cost and freight(if you have express account,provide it),sample time:5 working days,

after confirmed the sample, dear buyer arrange the deposit and we will finish it 10- 15 days after got the deposit,balance before deliver,your own courier or we arrange is possible.
