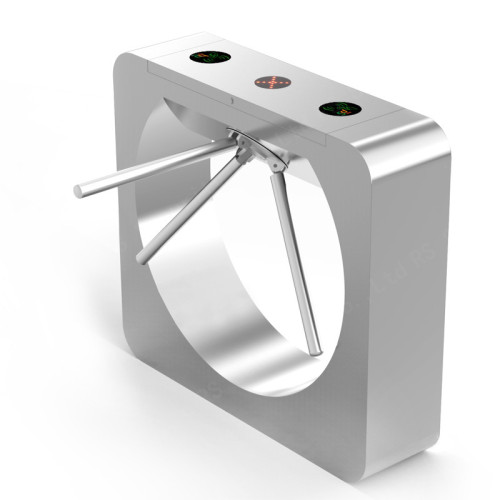

ODM BRT Bus Railway Station Trio Tripod Turnstile
Tripod Turnstile Description:
Access Tripod Turnstiles RS 118 combines optimal efficiency and space-saving size. The turnstile is the most in demand among this type of turnstiles. Servo-actuator provides access of 20 pedestrians per minute in single access mode and 60 pedestrians per minute in free access. Probability of delays at access control points is excluded due to rapid response that ensures no-queue state at site entrance.
Optionally the turnstile`s housing can be made of painted, brushed or polished steel. It is designed both for indoor or outdoor application (without add-on protection).
304 Stainless Steel Rustproof Tripod Turnstiles Barrier Application
| Picture | Name | Model | Length(mm) | Width(mm) | Height(mm) | Application |
|
Tripod Turnstile | RS 118 | 1200 | 280 | 980 | Bus Station |
| Tripod Turnstile | RS 218 | 420 | 330 | 980 | Metro Station | |
| Tripod Turnstile | RS 318 | 1200 | 280 | 980 | School | |
| Tripod Turnstile | RS 418 | 1200 | 280 | 980 | Fitness Center | |
| Tripod Turnstile | RS 518 | 1200 | 280 | 980 | Public Park | |
| Tripod Turnstile | RS 618 | 1200 | 280 | 980 | Gym | |
| Tripod Turnstile | RS 718 | 1200 | 280 | 980 | Supermarket | |
| Tripod Turnstile | RS 818 | 1200 | 280 | 980 | Shopping Mall | |
| Tripod Turnstile | RS 918 | 1200 | 280 | 980 | Office Building |
Tripod Barriers Gate RS 118 is compatible with a wide range of systems
Bridge Type 2.0mm Thickness Access Control Tripod Gates System Specification
| Technical parameters | |
| Housing material | 304 stainless steel |
| Dimensions | L1200 x W280 x H980mm |
| Arm length | 550mm |
| Weight | 80Kg |
| Power | DC24V |
| Voltage | AC220V±10% |
| Frenquency | 50Hz |
| MCBF | 5 million cycles |
| Transit speed | 35 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -30°C ~ 60°C |
| Operating humidity | ≤95% no condensation |
Tripod Turnstyles RS 118 is certified by ISO 9001, CE, RoHS, SGS, etc.
Tripod Turnstile Barrier production process in RS Security Co.,Ltd
Packaging&Shipping:
1. Wooden well protection package
2.Fast way: By express,such as: DHL, Fedex, UPS, TNT, EMS...take about 3~7days.
3.Cheap way(small package):By China post,should take about 15~70days.
| Certificat | Information | |
|
ISO 9001:2008
Quality management systems
|
Certificat ISO 9001:2008 - Shenzhen RS Security Co.,Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
ISO 14001:2008
Environmental management systems
|
Certificat ISO 14001:2008 - Shenzhen RS Security Co.,Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
OHSAS 18001:2008
Assessment specification for occupational health & safety management systemsenvironmental management systems
|
Certificat OHSAS 18001:2008 - Shenzhen RS Security Co.,Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
