Constant Current Power Supply For Led Panel Lighting
- Payment Type:
- Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, HongKong, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,HongKong,Shekou |
Product Description

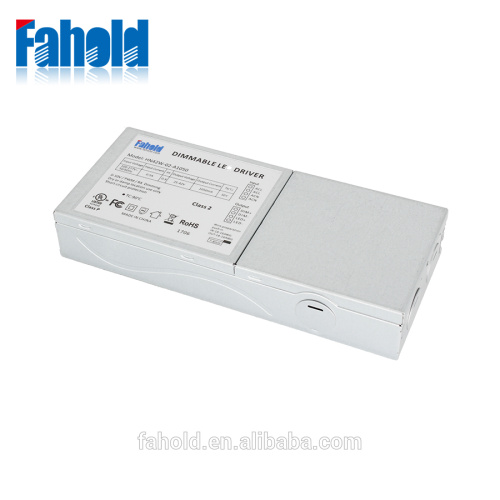

The HN42W-02 series is a 60W LED driver for LED Panel, LED ceiling light, LED Downlight with UL certificate , which operates from 100VAC to 277VAC input with high power actor. this model has a metal case, and includes short circuit, over current, over voltage and over load protections. The input range can be 90-350VAC
Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547. It features four 0.20 inch mounting holes for surface mounting and is designed with mounting hole positions to hold compatible power supplies securely.
Product Feature:
- Single channel output, output current level selectable by DIP S.W.
- Support 1-10V analog dimming signal, Passive or active signal.
- Wide range of input voltage 100VAC ~ 277VAC
- High efficiency up to 87%
- Built-in active PFC function
- 100% output when no dimming signal input, can be used as normal power supply
- Dimming effect smooth, non-flicker
- Protections: Short circuit.
- Suitable for LED Panel Lights
Technical Parameter:
|
Product Name |
Flat Panel Dimmable Led Driver | |||
|
Item |
HN42W-02 | |||
|
Output |
Current |
100mA |
1050mA |
|
|
DC Voltage |
25-42V |
25-42V | ||
|
Rated power |
-- |
42W |
||
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 120VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
87% |
|||
|
Power Factor(Typ) |
≥ 0.98@180VAC |
|||
|
AC Current(Typ) |
0.11A@230VAC |
|||
|
Leakage Current |
<5mA/240VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
NO |
||
|
Others |
Dimension |
200(L) *86(W)*35(H)mm |
||
|
Working temp. |
-20℃ ~ 50℃ |
|||
Fahold's Benefits
a. Factory direct sales.
b. OEM & ODM are welcome.
c. Sample fee: negotiable, sample can be supplied in 5 days.
d. High quality, complete kinds, good stability, strong practicability.
e. Good after-sales service & point to point technical supports.
f. Energy saving, long using life.
g. Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, Leviton, JUNG, Berker, Be Lichtregler, etc.
h. Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
Related Products
|
Item No. |
Input Voltage |
Output Current |
Output Voltage |
Output Power |
Cross flow accuracy |
|
HE018-01 |
100-240VAC |
150-600mA |
30-65V |
18W |
±4% |
|
HE042-01 |
100-240VAC |
550-1300mA |
30-42/20-30VDC |
46W | ±3% |
|
HE042-02 |
100-240VAC |
550-1250mA |
30-42V |
46W |
±3% |
| HU40-01 | 100-240VAC |
100-1050mA |
27-42VDC |
40W |
±3% |
| HU50-01 | 100-240VAC |
100-1200mA |
30-42VDC |
50W |
±3% |
| HS20W-01 | 100-240VAC |
100-500mA |
27-42VC |
20W |
±3% |
| HW55W-02 | 100-240VAC |
100-1300mA |
25-40VDC |
50W |
±3% |
| HY12-01 | 220-240VAC |
100-300 |
27-42VDC |
12W |
±3 |
