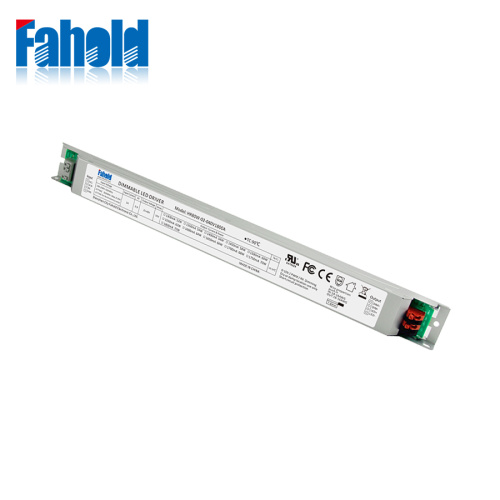

80W 1800mA UL Dimmable SLIM LED Driver
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou |
Fahold's LED drivers solve the compatible problem between fluorescent lamps and LED lamps very successfully. They are widely used with various kinds of capacity dimming system to control the LED ceiling light, LED downlight, LED panel lights, LED wallwashers, LED strip lights and so on. Our 0-10V/1-10V dimmers support both linear and logarithmic dimming curve, dimming the lights very smoothly and are compatible with various famous lighting control systems, such as Lutron, Dynalite, Schneider, Clipsal, Osram, Philips, ABB and so on.
Product Feature
- Single channel output, output current level selectable by DIP S.W.
- Support 1-10V analog dimming signal, Passive or active signal.
- Wide range of input voltage 100VAC ~ 277VAC
- High efficiency up to 88%
- Built-in active PFC function
- 100% output when no dimming signal input, can be used as normal power supply
- Dimming effect smooth, non-flicker
- Protections: Short circuit, Open Circuit.
- Suitable for indoor LED linear lighting application
Technical Parameter
|
Product Name |
Dimmable LED Driver 80W |
|||
|
Item |
HR80W-02 | |||
|
Output |
Current |
1800mA |
||
|
DC Voltage |
25-40V | |||
|
Rated power |
-- | -- |
80W |
|
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 277VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
88% |
|||
|
Power Factor(Typ) |
≥ 0.95 |
|||
|
AC Current(Typ) |
0.11A/230VAC |
|||
|
Leakage Current |
<5mA/240VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
1-10V dimming (Passive or active) |
||
|
Others |
Dimension |
346(L) 30(W)*22.5(H)mm |
||
|
Working temp. |
-20℃ ~ 50℃ |
|||
Fahold's Benefits
a. Factory direct sales.
b. OEM & ODM are welcome.
c. Sample fee: negotiable, sample can be supplied in 5 days.
d. High quality, complete kinds, good stability, strong practicability.
e. Good after-sales service & point to point technical supports.
f. Energy saving, long using life.
g. Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, Leviton, JUNG, Berker, Be Lichtregler, etc.
h. Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
Related Products
|
Item No. |
Input Voltage |
Output Current |
Output Voltage |
Output Power |
Cross flow accuracy |
|
HE018-01 |
100-240VAC |
150-600mA |
30-65V |
18W |
±4% |
|
HE042-01 |
100-240VAC |
550-1300mA |
30-42/20-30VDC |
46W | ±3% |
|
HE042-02 |
100-240VAC |
550-1250mA |
30-42V |
46W |
±3% |
| HU40-01 | 100-240VAC |
100-1050mA |
27-42VDC |
40W |
±3% |
| HU50-01 | 100-240VAC |
100-1200mA |
30-42VDC |
50W |
±3% |
| HS20W-01 | 100-240VAC |
100-500mA |
27-42VC |
20W |
±3% |
| HW55W-02 | 100-240VAC |
100-1300mA |
25-40VDC |
50W |
±3% |
| HY12-01 | 220-240VAC |
100-300 |
27-42VDC |
12W |
±3% |
80W 1800mA UL Dimmable LED Driver 38V Output Constant Current Led Driver
