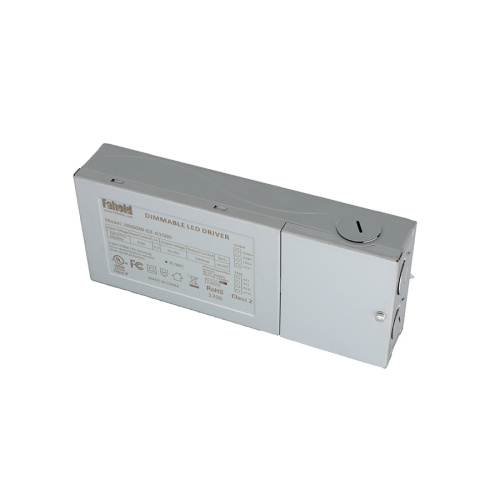

Constant Current 100-277V Ac to Dc Driver
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, EXW
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,HongKong |
· High PFC
· Long slim shape
UL listed power led driver
· Single channel output, output current level selectable.
· Wide range of input voltage 100VAC ~ 277VAC
· High efficiency up to 87%
· Built-in active PFC function
· 100% output dimming signal input, can be used as normal power supply
· Protections: Short circuit,over load, over voltage & over temperature protections
· Suitable for indoor LED lighting application
Fahold's Benefit
1.OEM & ODM are welcome.
2.High quality, complete kinds, good stability, strong practicability.
3.Good after-sales service & point to point technical supports.
4.Energy saving, long using life.
5.Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, 6.Leviton, JUNG, Berker, Be Lichtregler, etc.
7.Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
Technical Parameter
|
Item No. |
HN60W-02 | |
|
Output |
Current |
300mA-1500mA |
|
DC Voltage |
25-42V |
|
|
Rated power |
60W Max. |
|
|
Current Accuracy |
±3% |
|
|
Ripple and Noise |
800mVp-p |
|
|
Channels |
1 |
|
|
Input |
Voltage Range |
100VAC – 277VAC |
|
Frequency Range |
47 – 63Hz |
|
|
Efficiency(Typ) |
88% |
|
|
Power Factor(Typ) |
≥ 0.9 |
|
|
AC Current(Typ) |
0.8A@100VAC |
|
|
Leakage Current |
<0.25mA@347VAC |
|
|
Inrush current(Typ) |
<60A at 230VAC |
|
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
|
Function |
Dimming |
1-10V dimming (Passive or active), |
|
Others |
Dimension |
180(L) *76(W)*33(H)mm |
|
G.W |
340 |
|
|
Packing |
470(L)*200(W)*220(H)mm;50pcs/Carton |
|
|
Working temp. |
-20℃ ~ 60℃ |
|
Shenzhen Fahold Electronics Co.,Ltd. was established in 2010, a factory which integrating the LED drivers design, R&D and manufacture, passed the ISO9001 quality management system certification. It covering an area of 5000 squre meters, existing staff morethan 200 workers which including 25 researchers, 20 quality controls. The production capacity of Fahold are 5 million units per year.
