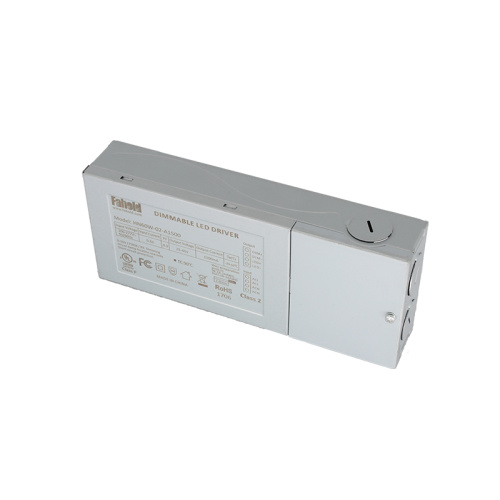

Class2 Panel Light LED Driver 60W
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangzhou shenzhen china |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou |
· High PFC
· Long slim shape
UL listed power led driver
· Single channel output, output current level selectable.
· Wide range of input voltage 100VAC ~ 277VAC
· High efficiency up to 87%
· Built-in active PFC function
· 100% output dimming signal input, can be used as normal power supply
· Protections: Short circuit,over load, over voltage & over temperature protections
· Suitable for indoor LED lighting application
Fahold's Benefit
1.OEM & ODM are welcome.
2.High quality, complete kinds, good stability, strong practicability.
3.Good after-sales service & point to point technical supports.
4.Energy saving, long using life.
5.Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, 6.Leviton, JUNG, Berker, Be Lichtregler, etc.
7.Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
Technical Parameter
|
Item No. |
HN60W-02 | |
|
Output |
Current |
300mA-1500mA |
|
DC Voltage |
25-42V |
|
|
Rated power |
60W Max. |
|
|
Current Accuracy |
±3% |
|
|
Ripple and Noise |
800mVp-p |
|
|
Channels |
1 |
|
|
Input |
Voltage Range |
100VAC – 277VAC |
|
Frequency Range |
47 – 63Hz |
|
|
Efficiency(Typ) |
88% |
|
|
Power Factor(Typ) |
≥ 0.9 |
|
|
AC Current(Typ) |
0.8A@100VAC |
|
|
Leakage Current |
<0.25mA@347VAC |
|
|
Inrush current(Typ) |
<60A at 230VAC |
|
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
|
Function |
Dimming |
1-10V dimming (Passive or active), |
|
Others |
Dimension |
180(L) *76(W)*33(H)mm |
|
G.W |
340 |
|
|
Packing |
470(L)*200(W)*220(H)mm;50pcs/Carton |
|
|
Working temp. |
-20℃ ~ 60℃ |
|
