Details

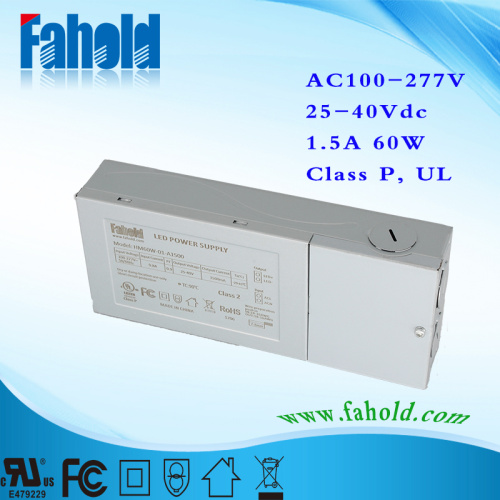

HM60W-01, LED Constant current driver,rugged iron enclosure designed, apply to Traditional led panel light . This constant current Driver LED enclosure was made of lightweight but strong iron with a protective black powder-coated finish. This unit are suitable for Office Panel lights. Other standard features of the range include 100-277V.
Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547. It features four 0.20 inch mounting holes for surface mounting and is designed with mounting hole positions to hold compatible power supplies securely.The HM60W-01 METAL CASE Driver is for use with the following Constant Current Drivers only:
· 1) 100-277Vac 25-40Vdc 1100mA
· 2) 100-277Vac 25-40Vdc 1500mA
· 3) 100-277Vac 25-40Vdc 1800mA
Product Specs:
- Output voltage:25-40V
- Output wattage: 60W
- Dimensions:188x86x33 mm
- Efficiency:88%
- Encironment/IP Rating: indoor/IP20
- Max. Input voltage:277V
- Certificate: UL, FCC.
UL AC100-277V Driver(LED Panel lights Driver), Desigen for high lumen office led panel lights. Its housing was made out of steel and iron, independent design for the output connection structure, suitable for north Amercian market.
