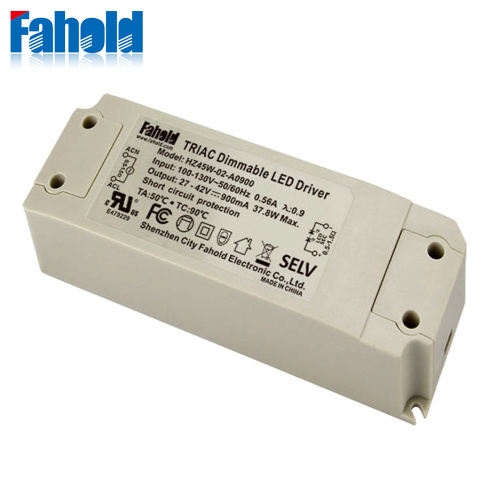

45W Max Output Led Driver 130V Power Supply

45W Max Output Led Driver 130V Power Supply

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Productivity:	200 thousands pcs per month
Supply Ability:	200000pcs
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	ISO9001
HS Code:	8504401400
Transportation:	Ocean,Land,Air
Port:	Yantian

Product Description

Fahold's LED drivers solve the compatible problem between fluorescent lamps and LED lamps very successfully. They are widely used with various kinds of capacity dimming system to control the LED ceiling light, LED downlight, LED panel lights, LED wallwashers, LED strip lights and so on. Our 0-10V/1-10V dimmers support both linear and logarithmic dimming curve, dimming the lights very smoothly and are compatible with various famous lighting control systems, such as Lutron, Dynalite, Schneider, Clipsal, Osram, Philips, ABB and so on.

Product Feature

Single channel output, output current level selectable withing 300-1150mA
Support 1-10V analog dimming signal, Passive or active signal.
Wide range of input voltage 100VAC ~ 130VAC
High efficiency up to 84%
Built-in active PFC function
100% output when no dimming signal input, can be used as normal power supply
Dimming effect smooth, non-flicker
Protections: Short circuit.
Suitable for indoor LED lighting application

Technical Parameter:

Product Name		45W plastic Led Driver
Item		HZ45W-01
Output	Current	300mA	1150mA
	DC Voltage	27-42V	27-42V
	Rated power	--	45W
	Current Accuracy	±3%
	R & N (Max)	75mAp-p
	Channels	1
Input	Voltage Range	100VAC – 120VAC
	Frequency Range	50 – 60Hz
	Efficiency(Typ)	86%
	Power Factor(Typ)	≥ 0.98@180VAC
	AC Current(Typ)	0.11A@230VAC
	Leakage Current	<5mA/240VAC
	Inrush current(Typ)	<1A at 230VAC
Protection	Short Circuit	Output close, recovers automatically after fault removed
Function	Dimming	NO
Others	Dimension	135(L) 46(W)32(H)mm
	Working temp.	-20℃ ~ 50℃

48W Max Output plastic Led Driver 100-120V Input Power Supply
