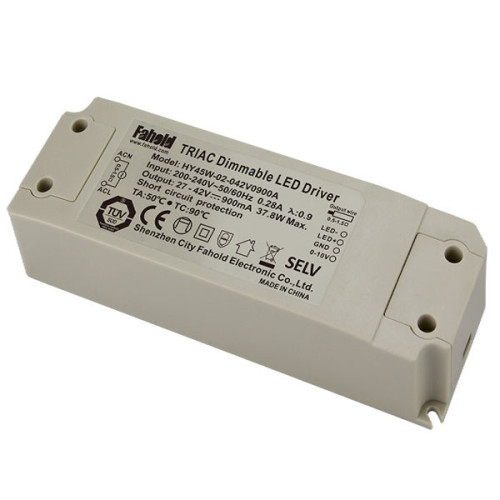

TUV CE 45w 1000mA Triac dimmable driver
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou |
Product Description
Fahold's LED drivers solve the compatible problem between fluorescent lamps and LED lamps very successfully. They are widely used with various kinds of capacity dimming system to control the LED ceiling light, LED downlight, LED panel lights, LED wallwashers so on. Our Traic dimmable 0-10V/1-10V dimmers support both linear and logarithmic dimming curve, dimming the lights very smoothly and are compatible with various famous lighting control systems, such as Lutron, Dynalite, Schneider, Clipsal, Osram, Philips, ABB and so on.
Product Feature
- Single channel output, output current level selectable by DIP S.W.
- Support Traic analog dimming signal, Passive or active signal.
- High efficiency up to 88%
- Built-in active PFC function
- 100% output when no dimming signal input, can be used as normal power supply
- Dimming effect smooth, non-flicker
- Protections: Short circuit.
- Suitable for indoor LED lighting application
Technical Parameter
|
Product Name |
Constant current led driver |
||||
|
Item |
HY45W-02 | ||||
|
Output |
Current |
300mA |
500mA |
700mA |
1500mA |
|
DC Voltage |
27-42V |
27-42V |
27-42V |
27-42V | |
|
Rated power |
12W |
20W |
30W |
45W |
|
|
Current Accuracy |
±3% |
||||
|
R & N (Max) |
75mAp-p |
||||
|
Channels |
1 |
||||
|
Input |
Voltage Range |
220VAC – 240VAC |
|||
|
Frequency Range |
50 – 63Hz |
||||
|
Efficiency(Typ) |
85% |
||||
|
Power Factor(Typ) |
≥ 0.98 |
||||
|
AC Current(Typ) |
0.11A/230VAC |
||||
|
Leakage Current |
<5mA/240VAC |
||||
|
Inrush current(Typ) |
<1A at 230VAC |
||||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
|||
|
Function |
Dimming |
1-10V dimming (Passive or active) |
|||
|
Others |
Dimension |
153(L) *41(W)*28(H)mm |
|||
|
G.W |
120g |
||||
|
Packing |
470(L)*200(W)*220(H)mm;50pcs/6.5kg/Carton |
||||
|
Working temp. |
-20℃ ~ 50℃ |
||||
