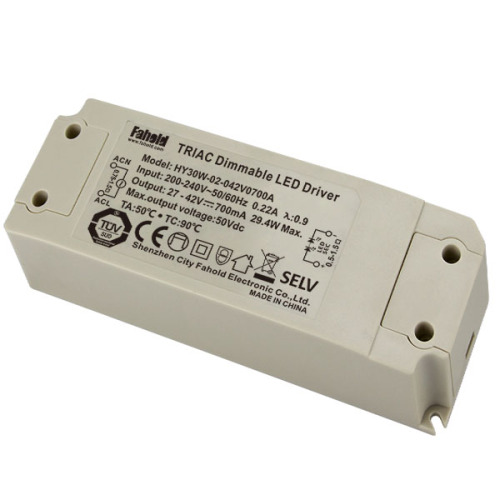

CE 220-240V 700mA no-flicker driver triac dimmable
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- YANTIAN, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | YANTIAN,Shekou |
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6. 3 years warranty
|
Model |
HY30W-02 |
|
DC output voltage |
27-42V |
|
Output voltage error |
±1% |
|
Rated output current |
1300mA/500mA/700mA/1100A |
|
Output current range |
0-1.1A |
|
Wave and noise |
100mVp-p |
|
Inlet stability |
±0.5% |
|
Load stability |
±0.5% |
|
DC output power |
12W/20W/30W/45W |
|
Efficiency |
88% |
|
AC input voltage range |
100-277VAC |
|
Over load protection |
105%~150% rated output power |
|
Protection:Hiccup mode |
|
|
short circuit protection |
Protection:Short Circuit |
|
Temperature coefficient |
±0.03%(050) |
|
Setup rise hold up time |
200ms,100ms,30ms |
|
Vibration |
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
|
Withstand voltage |
I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|
Isolation resistance |
I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH |
|
Working temperature and humidity |
-20~+50°C, 20~90%RH |
