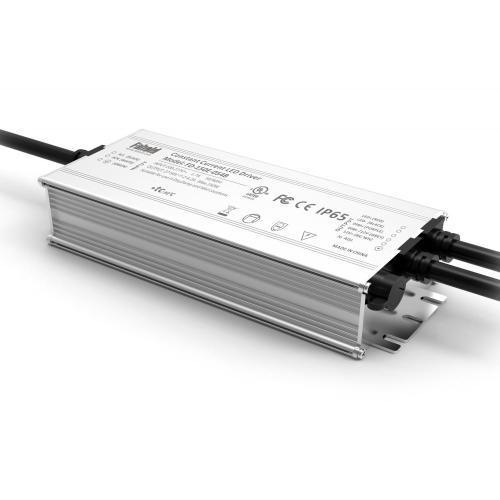

150W 347Vac LED Driver Aux 12V IP65
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, HONGKONG
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,HONGKONG |
Description:
The FD-150ExxxB Series operate from a 90 ~ 305 Vac input range. These units will provide up to a 4.5A of output current and a maximum output voltage of 54 V for 150 W maximum output power. They are designed to be highly efficient and highly reliable. The standard features include dimming control, lightning protection, over voltage protection, short circuit protection, and over temperature protection.
Featutre:
High Efficiency (Up to 91%)
Active Power Factor Correction (Typically 0.99)
Constant Current Output
Dimming Control
Lightning Protection
Waterproof (IP65)
All-Round Protection: OVP, SCP, OTP
Complies with UL8750 & EN61347 Safety Regulations
Application:
moving signs
Backlighting
LED-based decorative lighting
LED-based architectural lighting
LED stage and theater lighting
LED electronic displays
Specification:
Input Voltage 90 ~ 305 Vac
Output Voltage 27-54VDC
Output Current: 2.2-4.5A
Input Frequency 47 ~ 63Hz
Input Current Max 1.3A/100Vac 0.6A/220Vac, full load
Inrush Current 50A/230Vac 25°C, cold start
Leakage Current 1 mA at 277Vac 50Hz input
Power Factor 0.99/110Vac 0.96/220Vac
Ripple & Noise 3% of Voltage
Line Regulation 5%
Load Regulation 5%
Dimming Control Operation via potentiometer or from an input signal of 0–10V
