12V 60W constant voltage dimmable led driver ip67
$9.00 - $11.00/Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- yantian
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 20000pcs/month |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express |
| Port: | yantian |
Product Description
Product Description

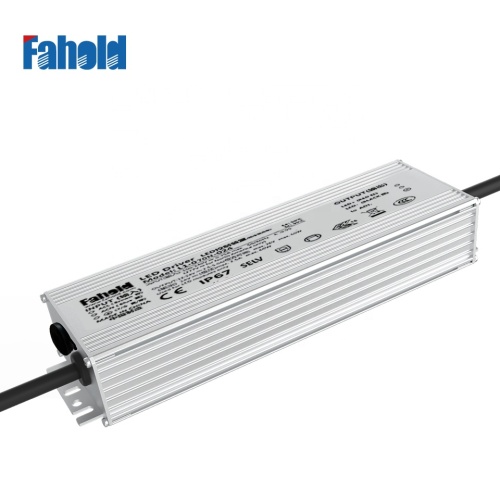

L1 Serie 75W 12-24Vdc led driver
L1 series of products is 12V-24V all-in-one designed constant voltage LED driver for globe market. As the F1's twin series, the L1 retains most of its excellent performance and characteristics, such as ip67 protection grade, 10KV lightning protection grade and -40 to 60℃ working environment temperature, suitable for outdoor landscape lighting application.
Features:
- 12Vdc-24Vdc stepless programmable Constant Voltage LED driver
- Familiy Power Range: 75-320W
- Rated Input Voltage: 100-277Vac
- Dimming option:0-10V
- Output Voltage: 12Vdc-24Vdc stepless programmable
- Surger Protection: DM-6KV, CM-10KV
-
Multi-Protections: SCP/OVP/OTP
- Multi-function: No dimmable(Type N), 3 in 1 Dimmable and Programmable (Type B)
- IP rate:67
| Reted Input Voltage | 100~277Vac |
| Input Frequency Range | 50/60 HZ |
| Life Time | 50000hrs@ Tc=75℃ |
| Dimension | 132*62*32（mm） |
| Certifications | ENEC,CE,CB,CCC |
Products Model:
| Model No | Rated Power | Input Voltage | Output Voltage | Output Current | Typ.Eff | Typ.PF | Max.Tc | Driver Type |
| F1-075X-024 | 75W | 90-305 | 12/24Vdc | 3.12A/6.25A | 88% | >0.9 | 90℃ |
Constant Voltage |
X=B,N
N: No dimmable
B: Dimmable and Programmable
