Modern Office Lighting LED Driver Solution

It is know to all, Led Panel lights are being utilised more and more in Household and commercial applications as they provide an energy efficient source of lighting, with low heat output and are available in a variety of colours. LED Panel lights  also provide a crisp light and instant start up, unlike CFL which take time to warm up. In this situation, it will need high efficiency Led Driver to power the office lighting system. Fahold Office Smart Light Driver will solve these problems.

 Office Panel Light Driver Solution; Lights For Office LED Driver

Features & Benefits

Input Valtage :        100‐277Vac

Input Frequency :     47‐63Hz

Input Current (Typ.):  650mAmax. @ 100‐277Vac & 100% load

Input Current:60Amax. @ 230Vac, 25℃

Power factor(Typ.):PF>0.9@115VAC/230VAC/347VAC, 100% load

THD :THD<15% @115VAC/230VAC/277, 100% load

Output characteristics  :

Current accuracy :5%I 03

No load Valtage : 55Vmax

Efficiency:85%@@ 100‐277Vac & 100% load, see efficiency vs. load curve for the details

Output Voltage: 25V‐40V

Output Current: 300-2000mA, 2000mA Max.

Ripple and Noise:500mVp‐p

Line Regulation:3%I o

Load Regulation:3%I o

Turn On Delay Time:Under normal conditions, the maximum delay time is 1 second

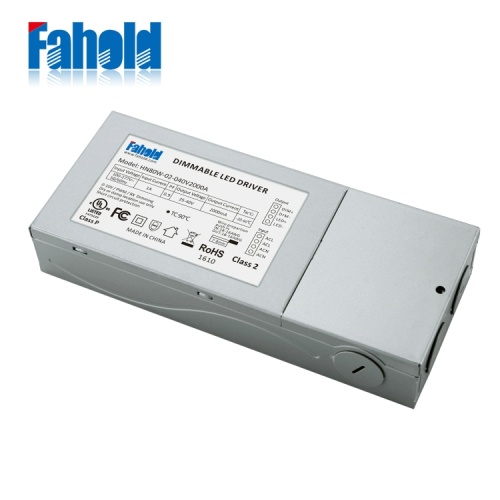

HN80W-02, Fahold designed led driver, especially designed for Led Panel lights, Recessed lighting fixtures applications, to operate general Indoor Lighting Solutions. Constant Current Flicker free 0-10V/PWM/RX dimming, with wattage range of 56W ,UL,FCC,CE compliant. The units are suitable for America market,Commercial LED Troffer Driver,  etc. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.
