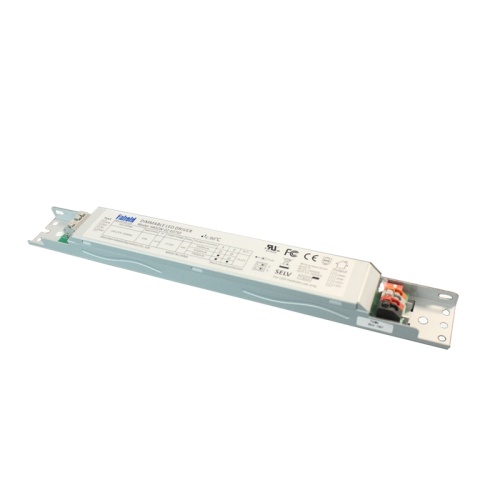

Lineal Driver good design for lineal Liminuaires 30W
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou |
Fahold Electronic Limited Drivers Features:
- Single channel output, output current level selectable by DIP S.W.
- Support Dali/0-10V analog dimming signal, Passive or active signal.
- Wide range of input voltage 100(120)VAC ~ 277VAC
- High efficiency up to 88%
- Built-in active PFC function
- 100% output when no dimming signal input, can be used as normal power supply
- Dimming effect smooth, non-flicker
- Protections: Short circuit.
- Suitable for indoor LED lighting application
Fahold Electronic Limited Drivers specifications:
| Model Number | Watt | Size(mm) |
|
Output current range | PF | |
| H32W-0F | 30W | 268*30*20.1mm(L*W*H) |
100-347VAC DC27-54V |
300/550/750mA |
>0.9 | |
|
H32W-02BF4 |
30W |
268*30*20.1mm(L*W*H) |
100-34VAC DC27-54V |
750mA |
>0.9 | |
|
H32W-02B |
30W |
268*30*20.1mm(L*W*H) |
100-347VAC DC27-54V |
750mA |
>0.9 |
|
Fahold's LED drivers solve the compatible problem between fluorescent lamps and LED lamps very successfully. They are widely used with various kinds of capacity dimming system to control the LED ceiling light, LED downlight, LED panel lights, LED wallwashers, LED strip lights and so on. Our 0-10V/1-10V dimmers support both linear and logarithmic dimming curve, dimming the lights very smoothly and are compatible with various famous lighting control systems, such as Lutron, Dynalite, Schneider, Clipsal, Osram, Philips, ABB and so on.
Certificate: UL/FCC
