Waterproof LED Driver High Voltage 480Vac Input.
-
USD15≥200 Piece/Pieces
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 850440 |
| Transportation: | Ocean,Air |
| Port: | Yantian |

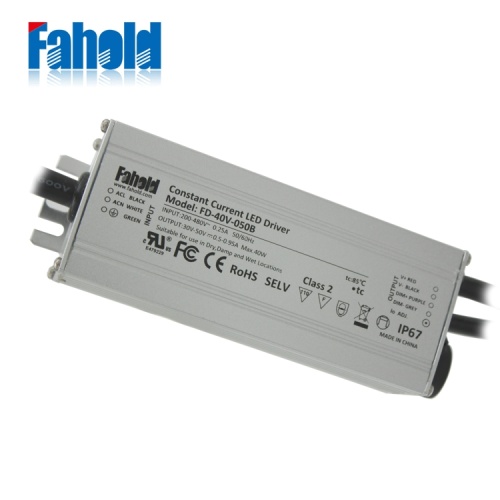

Fhold Each model includes input voltage ranges from 200Vac to 480Vac. The FD-40V constant current driver offers fixed and dimmable output models. Some models are Class 2 rated. The FD-150V is also a constant current driver, offering fixed and dimmable output models. The FD-240V is a constant voltage driver.
All models feature aluminum housings and are IP67 rated--making them suitable for applications subject to moisture. They offer over-voltage, over-current and short circuit protection with automatic recovery to keep luminaires performing. The drivers are UL Recognized for both US and Canada, and are CE certified.
Our Drivers have a variety of applications, including: Street Lights, Parking Lights, Road Lighting, Gate Lighting, Pathway Lighting, Ramp Lighting, Sidewalk Lighting, Campus Lighting, Boat Dock Lighting, Farm & Ranch Lighting, Wildlife Area Lighting, and Perimeter Security Lighting.
Waterproof Led Driver,Long Life Span Led Driver,48V Led Driver;277-480V input LED Driver; Outdoor Lighting LED Lighting Driver
|
Model |
Wattage(W) |
Output volgag(V) |
output current(A) |
Efficiency(%) <at>347V |
|
FD-40V-042 /B/C/D |
40 |
25-42 |
0.5-1.2 |
86 |
|
FD-40V-050 /B/C/D |
40 |
30-50 |
0.4-0.95 |
86 |
|
FD-40V-082 /B/C/D |
40 |
50-82 |
0.3-0.68 |
86 |
|
FD-40V-115 /B/C/D |
40 |
65-115 |
0.15-0.35 |
86 |
Note
Optional letters A, B, C, D or empty, indicating that the output increases with different optional functions. The default space indicates no other optional function (basic model); A letter indicates that the aluminum shell with three-in-one dimming, B letters that three-in-one dimmable light and fine-tuning current, C letters that plastic shell with three A dimming, D letters that plastic shell base models (no dimming function)
Performance
|
Input Rated Voltage : |
200Vac~480Vac |
|
Input Frequency Range: |
47Hz~63Hz |
|
Efficiency : |
87%(MIN)at Rated Voltage |
|
Output power : |
40W Led Driver |
|
Turn On Delay Time: |
<2S (AC:347V and full load) |
|
Safety protection : |
over voltage and current protection |
|
Leakage Current: |
<5mA |
|
Operating Temperature: |
0°C----+60°C |
|
Storage Temperature: |
-40°C----+85°C |
|
Certificate: |
CE UL/CUL FCC ROHS,SAA |
|
Safety Standard : |
EN60950-1 UL8750-1 ESD (EN61000 3-3) |
|
Application: |
can fit UK US Euroepan market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , waterproof led driver,pos machine ,laptop ac adapter and so on . |
