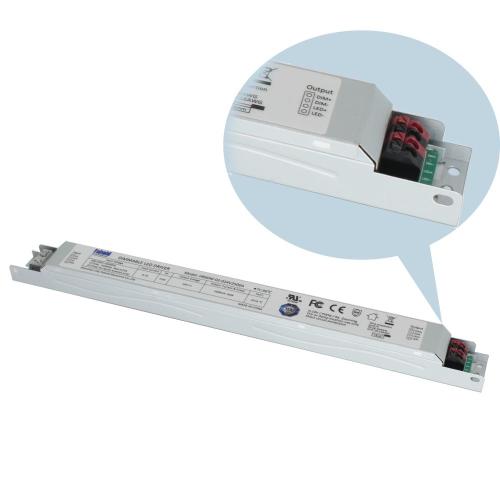

Ultra Slim Constant voltage led driver 150W
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian |
Quick Details
- slim metal housing with class II design
- Dali Dimming
- Protections: Short circuit /Over current /Over voltage /Over temperature
- IP20 rating for indoor linear lighting
- Lifespan is over 5 years
|
Product Name |
Dali LED Driver |
|||
|
Item |
HR-150E-04B | |||
|
Output |
Current |
6.25A | ||
|
DC Voltage |
24Vdc |
|||
|
Rated power |
150W |
|
||
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
220VAC – 240VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
89% |
|||
|
Power Factor(Typ) |
0.98 |
|||
|
AC Current(Typ) |
0.98A@230VAC |
|||
|
Leakage Current |
<5mA/230VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
0-10V/Dali dimming Selectable |
||
|
Others |
Dimension |
378(L) *39(W)*28H)mm |
||
|
G.W |
495g |
|||
|
Packing |
415(L)*340(W)*190(H)mm;24pcs |
|||
|
Working temp. |
-20℃ ~ 60℃ |
|||
Typical application
• Cove lighting, facade accent lighting, ceiling integration,linear lighting.
