Linear LED High Bay Light 80W Led driver

Details

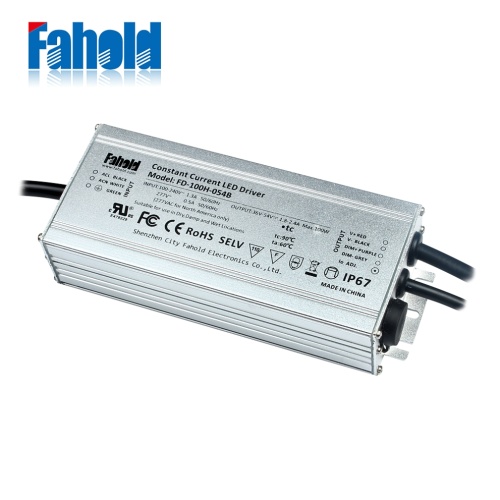

FD-100H-054A, Aluminum case LED Driver designed for linear high bay lights.  Flicker free 0-10V dimming LED Driver 100W 100-4000mA, UL,CB,CE compliant, wide voltage output of IP67 waterproof design. The units are suitable for Linear High Bay Fitting, 100W. Other standard features of the range include 100-277V , Aluminum case, and protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

· UL Listed

· Powder-coated iron

· High PFC

· Single channel output, output current level selectable by DIP S.W.

· Support 0/1-10V analog dimming signal, Passive or active signal.

· Wide range of input voltage 100VAC ~ 277VAC

· Built-in active PFC function

· 100% output when no dimming signal input, can be used as normal power supply

· Dimming effect smooth, non-flicker

· Protections: Short circuit.

Product Specs:

Output voltage:24-38/30-42/36-54/65-115V

Output wattage: 100W

Current:100-4000mA

Dimensions:  195x66x38mm

Efficiency:93%

Encironment/IP Rating: outdoor/outdoor/IP67

Max. Input voltage:277V

Dimming way: 0-10V/PWM/RX

Certificate: UL, FCC, Class P

FD-xH series is high-grade led driver models, Aluminum case, IP67/IP65 design for indoor or outdoor installations. With built-in active PFC function, complete protections and safety certificates (UL, CB, CE, EMC, ENEC). Built-in 3 in 1 dimming function for B- type (0~10V/PWM/Resistance), 5 years warranty. Applications: LED Linear high bay lighting, LED architectural lighting, LED floodlighting. This power supply combined with connectors provide a pleasing and imposing aesthetic with a unique and function design that combines modern aesthetics with the power of a high- grade product.
