0-10V Dimming Plastic case Panel Driver

Three in One Dimming LED Driver

The highly efficient dimmable drivers are able to regulate current that flows through LEDs and can integrate into already existing circuits in order to extend the life of the LEDs themselves. This dimming functionality is found in a number of different popular applications that you may already be familiar with, such as: theatrical lighting, security lighting, signage, sensors as well as decorative and interior lighting.

HW45W-02, Flicker free LED Retrofit Power Supplies 1500mA. This is an isolated, 60W, 0-10V dimmable LED driver design with >0.9 power factor (PF) which meets or exceeds commercial lighting PF and total harmonic distortion (THD) requirements.  It is well suited for integral LED luminaires, or ballasts, that use high-brightness LED emitters. The units are suitable for low wattage downlights,

Features & Benefits

· High PFC

· Lightweight

· Wide range of input voltage 100VAC ~ 277/240VAC

· High efficiency up to 89%

· Built-in active PFC function

· 100% output  dimming signal input, can be used as normal power supply

· Protections: Short circuit,over load, over voltage & over temperature protections

· Suitable for indoor LED lighting application

0-10v led dimmer

Product Specs:

Output voltage:27-42V

Max. Output wattage: 60W

Max. Output Current:700-1500mA

Dimensions:157x52x32 mm

Efficiency:89%

Flicker Free

Encironment/IP Rating: indoor/IP20

Max. Input voltage:277/240V

Certificate:TUV,RCM,CE

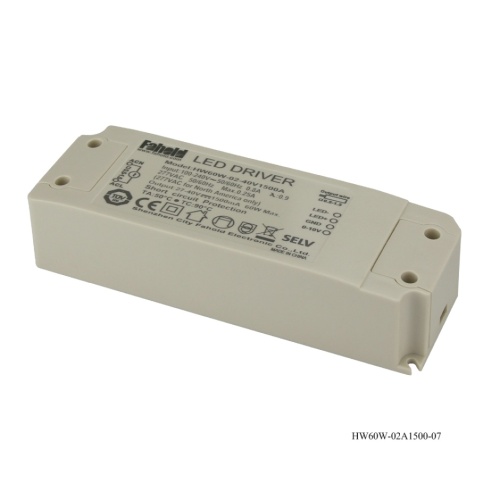

HW60W-02, Flicker free 0-10V dimmable, AC-DC 0-10V dimming Driver ;Desigen for high lumen led Downlights,   Europe market application. Energy saving driver. Its housing was made out of Hard shell,  independent design for the output connection structure, suitable for Europe market.
