LED Driver-Canopy Lights | 80W Driver Power Supply
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian |

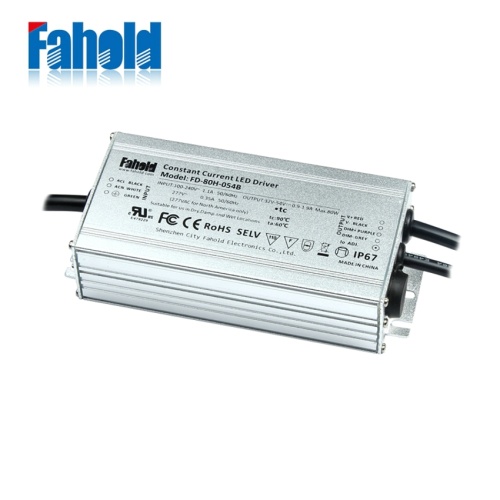

Fahold Provides LED Canopy Driver by combining cost-efficiency with clean design. It offers customers all the benefits of LED lighting – reduced energy consumption, longer service time and less maintenance. Outdoor Led Canopy Lights
IP67
-UL and CUL listed for wet locations
-Solid construction die cast aluminum body
Max output power 80W.
Constant current design.
3 in 1 dimming mode:0‐10V,PWM,RX.
Smoothly dimming(0‐100%),can dim to off.
TUV CB CE UL FCC Certified.
PROTECTION:Short Circuit,Open Circuit
Surface Mount Light Driver
Application
Canopy lights,Street lights,High bay lights, Wall Pack lights.
LED Advertising Sign,LED Architectural Lighting,LED Commercial Industrial Lighting,LED General Luminaries,Commercial Led Wall Lights.
Introduction
|
Model |
Wattage(W) |
Output volgag(V) |
output current(A) |
Efficiency(%) <at>100V |
|
FD-80H-038 /B/C/D |
80 |
24-38 |
1.3-2.7 |
88 |
|
FD-80H-042 /B/C/D |
80 |
30-42 |
1.2-2.5 |
88 |
|
FD-80H-054 /B/C/D |
80 |
36-54 |
0.9-1.9 |
88 |
|
FD-80H-076 /B/C/D |
80 |
45-76 |
0.6-1.4 |
89 |
|
FD-80H-143 /B/C/D |
80 |
65-115 |
0.4-1 |
89 |
Note
Optional letters A, B, C, D or empty, indicating that the output increases with different optional functions. The default space indicates no other optional function (basic model); A letter indicates that the aluminum shell with three-in-one dimming, B letters that three-in-one dimmable light and fine-tuning current, C letters that plastic shell with three A dimming, D letters that plastic shell base models (no dimming function)
Performance
|
Input Rated Voltage : |
100Vac~277Vac |
|
Input Frequency Range: |
47Hz~63Hz |
|
Efficiency : |
89%(MIN)at Rated Voltage |
|
Output power : |
80w Led Driver |
|
Turn On Delay Time: |
<2S (AC:110V and full load) |
|
Safety protection : |
over voltage and current protection |
|
Leakage Current: |
<5mA |
|
Operating Temperature: |
0°C----+60°C |
|
Storage Temperature: |
-40°C----+85°C |
|
Certificate: |
CE UL/CUL FCC ROHS,SAA |
|
Safety Standard : |
EN60950-1 UL8750-1 ESD (EN61000 3-3) |
|
Application: |
can fit UK US Euroepan market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , waterproof led driver,pos machine ,laptop ac adapter and so on . |
