160W Round High Bay Luminaire Driver
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- EXW, FCA
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou |
Description:

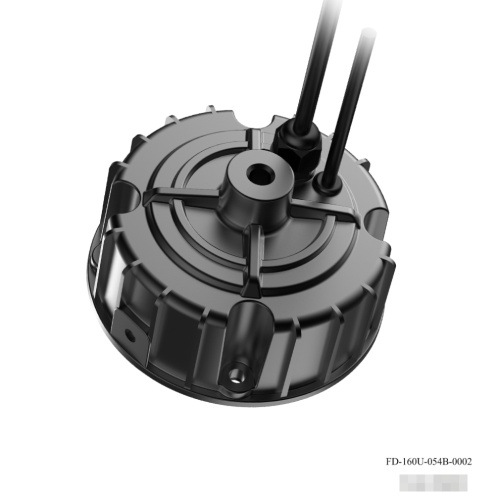

FD-160U-xx Series are a range of IP65 rated circular LED power supplies designed primarily for high bay & Low bay LED lighting. The range has a circular design and is potted within an aluminum enclosure to ensure the IP ratings and also provide heat dissipation. FD-160U-xx is available in 24-38/36-54/76-143VDC single output voltage options with current options of 5A to 0.7A. This version of FD-xxU-xx Series output constant current levels that are adjustable through the internal potentiometer.
Featutre:
Universal AC input range up to 305VAC
Built in active PFC function
High efficiency up to 91.5%
Short circuit, over current, over voltage & over temperature protections
Circular shape design with aluminum case
IP65 rated for indoor and outdoor installations
Suitable for dry, damp, wet locations
Application:
LED high/low bay lighting
Stage lighting
Tunnel lighting
LED spot lighting
Outdoor architectural lighting systems
