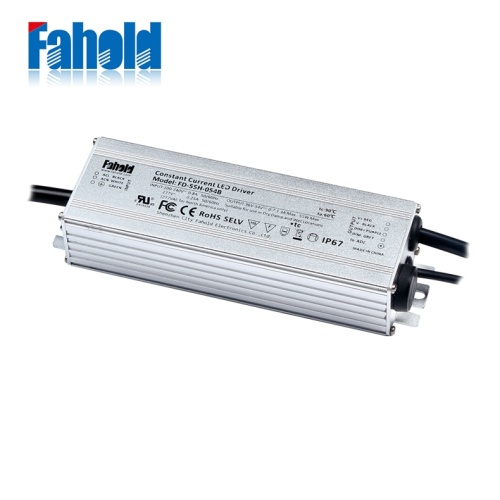

Waterproof Street Lights Driver.
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 850440 |
| Transportation: | Ocean,Air |
| Port: | Yantian |
Feature
IP67 Waterproof.
-UL and CUL listed for wet locations
-Solid construction die cast aluminium body
Max output power 55W.
Constant current design.
3 in 1 dimming mode:0‐10V,PWM,RX.
Smoothly dimming(0‐100%),can dim to off.
TUV CB CE UL FCC Certified.
PROTECTION:Short Circuit,Open Circuit,over voltage,over temperature.
Surface Mount Light Driver
Waterproof Led Driver,Long Life Span Led Driver,48V Led Driver
Application
Canopy lights,Street lights,High bay lights, Wall Pack lights.
LED Advertising Sign,LED Architectural Lighting,LED Commercial Industrial Lighting,LED General Luminaries,Commercial Led Wall Lights.
|
Model |
Wattage(W) |
Output volgag(V) |
output current(A) |
Efficiency(%) <at>100V |
|
FD-55H-038 /B/C/D |
55 |
24-38 |
0.9-1.8 |
88 |
|
FD-55H-042 /B/C/D |
55 |
30-42 |
0.8-1.5 |
88 |
|
FD-55H-054 /B/C/D |
55 |
36-54 |
0.7-1.3 |
88 |
|
FD-55H-076 /B/C/D |
55 |
45-76 |
0.5-1.0 |
89 |
|
FD-55H-115 /B/C/D |
55 |
65-115 |
0.3-0.75 |
90 |
Note
Optional letters A, B, C, D or empty, indicating that the output increases with different optional functions. The default space indicates no other optional function (basic model); A letter indicates that the aluminum shell with three-in-one dimming, B letters that three-in-one dimmable light and fine-tuning current, C letters that plastic shell with three A dimming, D letters that plastic shell base models (no dimming function)
Performance
|
Input Rated Voltage : |
100Vac~277Vac |
|
Input Frequency Range: |
47Hz~63Hz |
|
Efficiency : |
90%(MIN)at Rated Voltage |
|
Output power : |
55w Led Driver |
|
Turn On Delay Time: |
<2S (AC:110V and full load) |
|
Safety protection : |
over voltage and current protection |
|
Leakage Current: |
<5mA |
|
Operating Temperature: |
0°C----+60°C |
|
Storage Temperature: |
-40°C----+85°C |
|
Certificate: |
CE UL/CUL FCC ROHS,SAA |
|
Safety Standard : |
EN60950-1 UL8750-1 ESD (EN61000 3-3) |
|
Application: |
can fit UK US Euroepan market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , waterproof led driver,pos machine ,laptop ac adapter and so on . |
