High Voltage Waterproof LED Street Driver 160W
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200 thousands pcs per month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian |
High Voltage Waterproof LED Street Driver 160W
Introduce

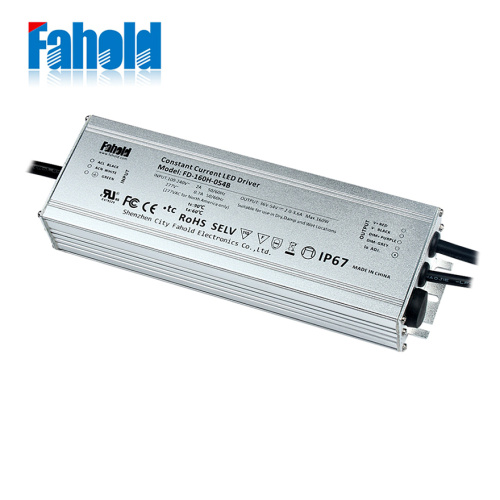

LED Street Driver 160W FD-160H-054B High Voltage Waterproof Driver, is Metal Housing Driver(Aluminium Housing) designed specifically for Outdoor LED Street lights, led canopy lights applications to operate general Outdoor Lighting Solution. Constant Current Flicker free 0-10V/PWM/RX dimming, with wattage range of 160W , wide voltage output of IP67 waterproof design with UL,FCC,CE certifications. The units is fit for LED Street lights & Canopy lights. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.
Standard features of the LED lighting driver includes short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547 and so on.
Features & Benefits
· High PFC
-Aluminum case led driver
· Single channel output, output current level selectable.
· Wide range of input voltage 100VAC ~ 277VAC
· High efficiency up to 93%
· Built-in active PFC function
· 100% output dimming signal input, can be used as normal power supply
· Protections: Short circuit,over load, over voltage & over temperature protections
· Suitable for indoor LED lighting application
Product Specs:
Output voltage:36-54V
Max. Output wattage: 160W
Max. Output Current: 5000mA
Dimensions:216x66x38mm
Efficiency:93%
Encironment/IP Rating: outdoor/IP67
No Flicker
Max. Input voltage:277V
Certificate:UL,FCC,CE
