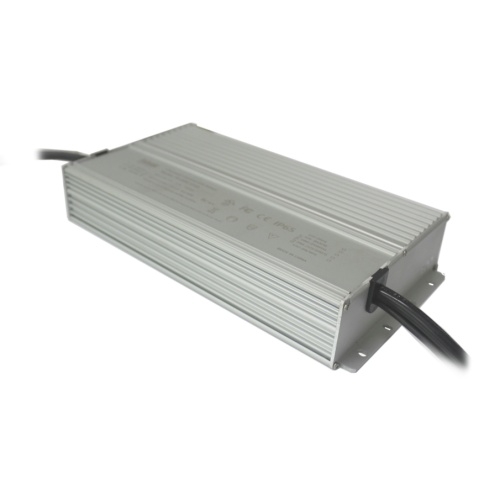

600W IP65 0/1-10V Dimming LED Driver

USD63.5

≥5 Piece/Pieces

Payment Type:: T/T

Incoterm:: EXW

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Yantian, Sekou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Productivity:	200000PCS/Month
Supply Ability:	30000pcs/month
Payment Type:	T/T
Incoterm:	EXW
Certificate:	ISO9001/UL/FCC
HS Code:	850440
Transportation:	Ocean,Land,Air
Port:	Yantian,Sekou

Product Description

Any LED design change which may be required in the future, involves mere programming of the LED driver to the newly required power. Led Grow Light Driver incorporates unique control capabilities including: 0-10V analog dimming, full digital control with real time feedback and on-board dimming profile. The LED driver is field proven with more than 800,000 installed light points worldwide and is approved by leading OEM's being part of their Approval Vendor List. 100w Quantum Board Driver is also a good choice for growers.

Highlights & Features

International AC input voltage with worldwide certified cable use
Up to 94.0% efficiency
10kV common mode & 10kV differential mode surge immunity
IEC/EN 61000-4-2, Level 4 Criteria A, 15kV air discharge, 8kV contact discharge
IP65 mechanical design for indoor and outdoor applications

Input Voltage	100-277Vac
Input Frequency	50/60Hz
Input Current (Typ.)	6.8A @100-305 Vac , 100% load
Output voltage	27-56V
Max output voltage	56Vdc
Output current	8.5-13A
Efficiency	≥93% @ 120 Vac, ≥91% @ 277Vac
Insulation Resistance	I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH.
Operating Temperature	-40℃ to +60℃
Operating Relative Humidity	10% to 90% RH, non-condensing
Storage Temperature	-40℃ to +75℃
Life Time	≥5Years H@277Vac, 100% load. See lifetime vs. Tc curve for the details
MTBF	≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F)
Warranty	5 years
Dimensions	2508441mm(LWH)
Weight	3750g
Remark	1. The parameters above including the power factor, THD, efficiency are all tested under the ambient temperature 25℃ and humidity 50%, AC input 230V and 90% output load.
