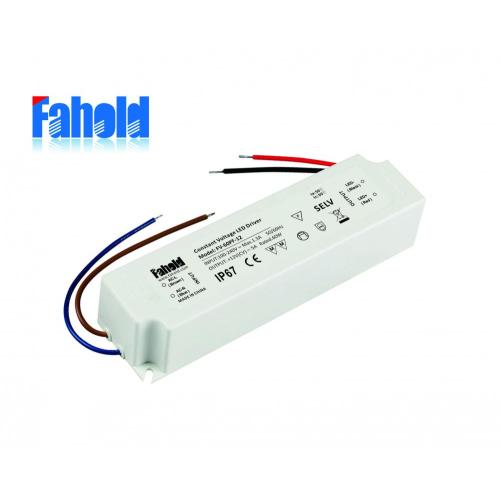

60W 12V 24V high PF LED Driver
-
$13.8250-499 Piece/Pieces
-
$9.21≥500 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong , China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200 thousands pcs per month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | UL, FCC, CE |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Hongkong |
Technical Perameters:
1.Electrical specification
|
Model No. |
PF-40-5 |
PF-60-12 |
PF-60-24 |
|
|
|
|
Output |
DC voltage |
5V |
12V |
24V |
|
|
|
Rated current |
8A |
5A |
2.5A |
|
|
|
|
Load current range |
0~8A |
0~5A |
0~2.5A |
|
|
|
|
Rated power |
40W |
60W |
60W |
|
|
|
|
Ripple&noise |
80mV Vp-p |
100mV Vp-p |
120mV Vp-p |
|
|
|
|
Adjustable voltage |
- |
- |
- |
|
|
|
|
Regulation accuracy |
±1% |
±1% |
±1% |
|
|
|
|
Load regulation accuracy |
±0.5% |
±0.5% |
±0.5% |
|
|
|
|
Source regulation accuracy |
±0.5% |
±0.5% |
±0.5% |
|
|
|
|
Start,rise time |
1500ms,30ms@230VAC;2000ms,30ms@115VAC at full load |
|||||
|
Hold up time |
30ms@230VAC,15ms@115VAC at full load |
|||||
|
Input |
AC input range |
88~264VAC/120~373VDC |
||||
|
Frequency range |
47~63Hz |
|||||
|
Efficiency |
85% |
89% |
91% |
|
|
|
|
Input current |
0.95A@115VAC,0.56A@230VAC |
|||||
|
Inrush current |
45A/230VAC cold start |
|||||
|
Leakage current |
<0.75mA/240VAC |
|||||
|
Protection |
Over load |
Rated load 110%~150% |
||||
|
Hiccup mode, Auto-recovery |
||||||
|
Over output voltage |
5.8~6.7V |
13.8~16.2V |
26.5~33.6V |
|
|
|
|
Shut off the output voltage, auto-recovery |
||||||
|
Over temperature |
By PWM IC OTP function |
|||||
|
Ambient |
Operation temperature |
-30℃~+70℃(Reference to derating curve) |
||||
|
Operation humidity |
20%~90% RH No condensation |
|||||
|
Storage temperature & humidity |
-40℃~+85℃ 10~95% RH |
|||||
|
Temperature coefficient |
±0.03%/℃(0~50℃) |
|||||
|
Vibration resistance |
10~500Hz,5G 10minutes/cycle,each X,Y,Z 60minutes |
|||||
|
Safety STD |
Safety STD |
TUV EN60950-1,EN60335-1,EN61558-1/-2-16,CCC GB4943 |
||||
|
Withstand voltage |
||||||
|
Insulation resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC/25℃/70% RH |
|||||
|
EMI |
EN55022(CISPR22),GB9254(class B),EN55014,EN61000-3-2,-3 |
|||||
|
Other |
MTBF |
650K hrs,MIL-HDBK-217F(25℃) |
||||
|
Dimension |
166*42*34mm |
|||||
|
Weight |
0.29KG |
|||||
|
|
|
|||||
Products details:
Applications:
- LED street lighting
- LED Wall Pack
- Linear High Bay
- LED high-bay lighting
- Parking space lighting
- LED fishing lighting
- LED greenhouse lighting
Shenzhen Fahold Electronics Co., Ltd dedicated to design andmanufacture led driver since 2009,we provide constant current and constant voltage led drivers with multiple dimming functions also accept customize service.
Fahold is located in Shenzhen, China.Having factory more than 5000 square meters and auto-production equipment & facilities to control products' quality through out all stages and meet customer's different demand, in addition, holding 150 professional employees to provide engineering suggestion for you.
Our factory were ISO9001 Certified, Products has been passed UL, CE, SAA Certified,all of these are showing our knowledgeable and reliable productionteam, and perfect QC inspect system.
