Strip driver constant voltage dimmable led driver
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,HongKong |
Description:

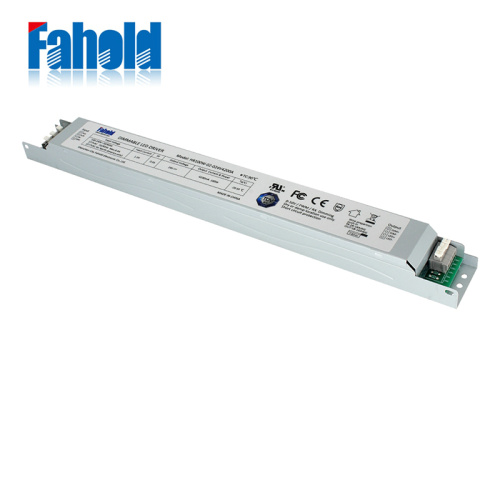

The HR100W-02-24 Series operate from a 90 ~ 305 Vac input range. These units will provide up to a 4.2A of output current and a constant voltage output 24V for 100 W maximum output power. They are designed to be highly efficient and highly reliable. The standard features include dimming control, lightning protection, over voltage protection, short circuit protection, and over temperature protection.
Featutre:
High Efficiency (Up to 91%)
Active Power Factor Correction (Typically 0.99)
Constant Current Output
Dimming Control:0-10V/PWM/Resistor
Lightning Protection
All-Round Protection: OVP, SCP, OTP
Complies with UL8750 & EN61347 Safety Regulations
Application:
moving signs
Backlighting
Linear lighting system
strip light led
LED-based decorative lighting
LED-based architectural lighting
LED stage and theater lighting
LED electronic displays
|
Product Name |
UL Constant voltage 12/24V 60w/100w LED dimmable Drivers for linear lights | |||
|
Item |
HR100W-02-024V | |||
|
Output |
Current |
100mA |
4000mA |
|
|
DC Voltage |
24V |
24V | ||
|
Rated power |
-- |
100W |
||
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 277VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
85% |
|||
|
Power Factor(Typ) |
≥ 0.98@180VAC |
|||
|
AC Current(Typ) |
0.11A@230VAC |
|||
|
Leakage Current |
<5mA/240VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
0-10V/PWM/RX/Dali. |
||
|
Others |
Dimension |
372(L) *39(W)*28(H)mm |
||
|
Working temp. |
-20℃ ~ 50℃ |
|||
