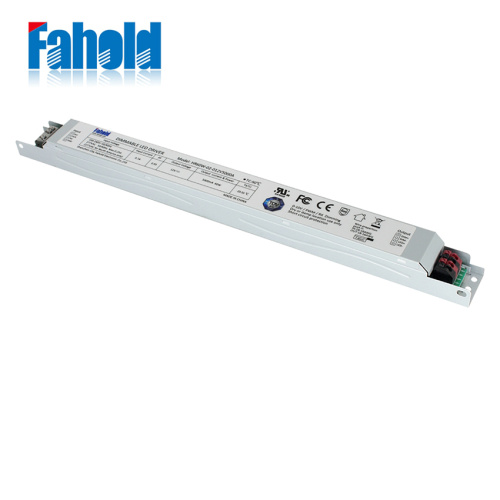

constant voltage led linear light driver 60W
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,HongKong |
Highlights
- Output DC 12V/24V
- Constant voltage output
- 0-10V/PWM/RX Dimmable compatible dali dimming
- No-flicker output.
- UL,FCC,TUV,CE certification
Constant current design
3 in 1 dimming mode:0-10V,PWM,RX
Smoothly dimming(0-100%),can dim to off
TUV CB CE UL FCC Certified
PROTECTION:Short Circuit, Open Circuit
Surge protection: 1KV
SELV safe output design
Application
Down light, Panel light, strip light
|
Product Name |
Slim Led Driver 60W |
|||
|
Item |
HR60W-02-024V/12V | |||
|
Output |
Current |
2500mA/5000mA |
||
|
DC Voltage |
24V | |||
|
Rated power |
-- | -- |
60W |
|
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 277VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
88% |
|||
|
Power Factor(Typ) |
≥ 0.95 |
|||
|
AC Current(Typ) |
0.11A/230VAC |
|||
|
Leakage Current |
<5mA/240VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
1-10V dimming (Passive or active) |
||
|
Others |
Dimension |
346(L) 30(W)*22.5(H)mm |
||
|
Working temp. |
-20℃ ~ 50℃ |
|||
