60W 24V Constant Voltage Dimming Led driver

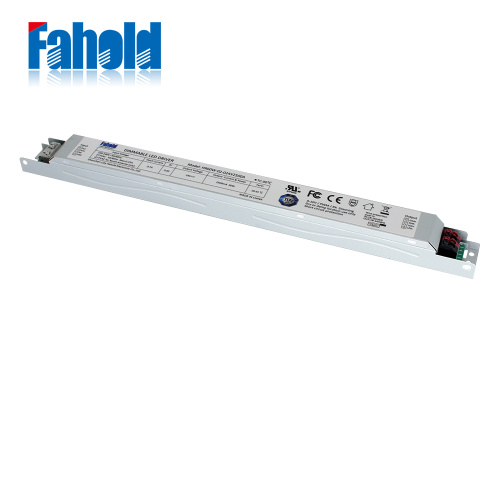

HR60W-02-24 is a 60W 24Vdc 0-10V/PWM/Dali Dimming Constant Voltage LED Driver with 100-277Vac input and IP20 rating for indoor use. This constant voltage 0-10V/PWM/DALI dimming LED driver is capable of 0-100% of load dimming. The Linear iron case is fully isolated and fire resistant, with screw terminals for easy installation.

Product description:

• Constant voltage LED Driver

• Output voltage 24 V

• Max. output power 60 W

• Dimmable via PWM/0-10V/RX/Dali LED dimmers

• Nominal life-time up to 50,000 h

• 5-year guarantee

Typical application

• Cove lighting, facade accent lighting, ceiling integration,linear lighting.

Technical details

• 24 V, 60 W

• Very good THD performance in wide load range < 5 %

• Ripple and Noise  0.18V p-p

• Small cross section

• Push terminal for simple wiring

• Dimming Range 0-100%

Wiring guidelines

• The cables should be run separately from the mains connections and

mains cables to ensure good EMC conditions.

• The LED wiring should be kept as short as possible to ensure good EMC.

The max. secondary cable length is 2 m (4 m circuit).

• The LED Driver has no inverse-polarity protection on the secondary side.

Wrong polarity can damage LED modules with no inverse-polarity protection.

• Wrong wiring of the LED Driver can lead to malfunction or irreparable

damage.

 Earth connection

The earth connection is conducted as protection earth (PE). The LED Driver can be earthed via metal housing. If the LED Driver will be earthed,protection earth (PE) has to be used. There is no earth connection required for the functionality of the LED Driver. Earth connection is recommended to improve following behaviour:

• Electromagnetic interferences (EMI)

• LED glowing at standby

• Transmission of mains transients to the LED output

In general it is recommended to earth the LED Driver if the LED module is mounted on earthed luminaire parts respectively heat sinks and thereby representing a high capacity against earth.
