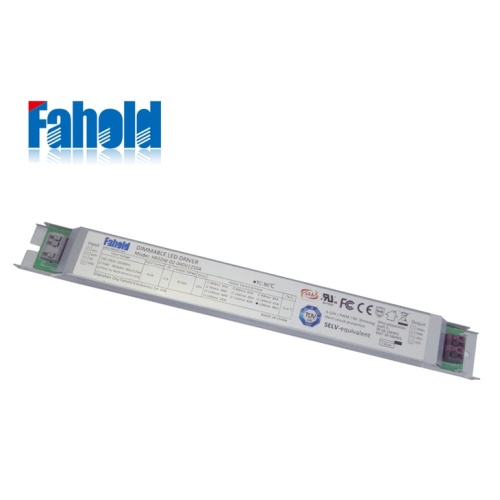

Adjustable Linear Led Driver 50W Power
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian |
- Single channel output, output current level selectable by DIP S.W.
- Support 1-10V analog dimming signal, Passive or active signal.
- Wide range of input voltage 100VAC ~ 277VAC
- High efficiency up to 88%
- Built-in active PFC function
- 100% output when no dimming signal input, can be used as normal power supply
- Dimming effect smooth, non-flicker
- Protections: Short circuit.
- Suitable for indoor LED lighting application
Linear Driver,30W Linear Driver,Constant Current Led Driver,Linear Led Constant Current Driver
Technical Parameter
|
Product Name |
50W LED Power Supply |
|||
|
Item |
HR50W-02 | |||
|
Output |
Current |
1250mA |
||
|
DC Voltage |
25-40V | |||
|
Rated power |
-- | -- |
50W |
|
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 277VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
88% |
|||
|
Power Factor(Typ) |
≥ 0.95 |
|||
|
AC Current(Typ) |
0.11A/230VAC |
|||
|
Leakage Current |
<5mA/240VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
1-10V dimming (Passive or active) |
||
|
Others |
Dimension |
278(L) 30(W)*20(H)mm |
||
|
Working temp. |
-20℃ ~ 50℃ |
|||
Fahold's Benefits
a. Factory direct sales.
b. OEM & ODM are welcome.
c. Sample fee: negotiable, sample can be supplied in 5 days.
d. High quality, complete kinds, good stability, strong practicability.
e. Good after-sales service & point to point technical supports.
f. Energy saving, long using life.
g. Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, Leviton,
JUNG, Berker, Be Lichtregler, etc.
h. Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
Related Products
|
Item No. |
Input Voltage |
Output Current |
Output Voltage |
Output Power |
Cross flow accuracy |
|
HE018-01 |
100-240VAC |
150-600mA |
30-65V |
18W |
±4% |
|
HE042-01 |
100-240VAC |
550-1300mA |
30-42/20-30VDC |
46W | ±3% |
|
HE042-02 |
100-240VAC |
550-1250mA |
30-42V |
46W |
±3% |
| HU40-01 | 100-240VAC |
100-1050mA |
27-42VDC |
40W |
±3% |
| HU50-01 | 100-240VAC |
100-1200mA |
30-42VDC |
50W |
±3% |
| HS20W-01 | 100-240VAC |
100-500mA |
27-42VC |
20W |
±3% |
| HW55W-02 | 100-240VAC |
100-1300mA |
25-40VDC |
50W |
±3% |
| HY12-01 | 220-240VAC |
100-300 |
27-42VDC |
12W |
±3% |
50W LED Power Supply
