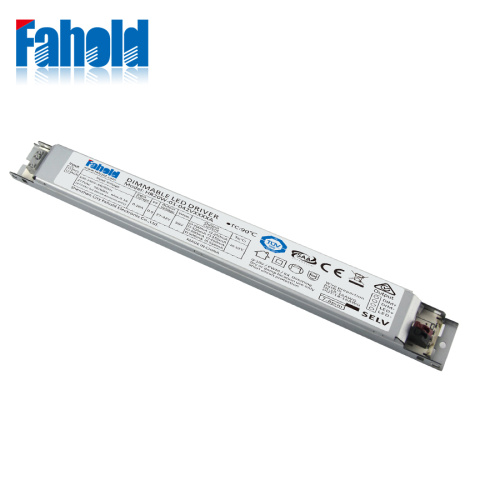

20W Slim led driver for linear lights
-
USD3≥500 Piece/Pieces
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 850440 |
| Transportation: | Ocean,Land |
| Port: | Yantian |
|
Input characteristics |
|
|
Input Valtage |
100-277Vac |
|
Input Frequency |
47-63Hz |
|
Input Current (Typ.) |
360mAmax. @ 100-277Vac , 100% load |
|
Input Current |
60Amax. @ 230Vac, 25℃ |
|
Power factor(Typ.) |
PF>0.9@115VAC/230VAC/277VAC, 100% load |
|
THD |
THD<20%@@115VAC/230VAC/277VAC, 100% load |
|
Output characteristics |
|
|
Current accuracy |
5%I0 |
|
No load Valtage |
50Vmax |
|
Efficiency |
84%%@@ 100-277Vac,100% load, see efficiency vs. load curve for the details |
|
Output Voltage |
25V-40V |
|
Ripple and Noise |
500mVp-p |
|
Line Regulation |
1%Io |
|
Load Regulation |
3%Io |
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 1 second |
|
Protection functions |
|
|
Open circuit |
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed. |
|
Short Circuit |
The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed. |
|
Environmental conditions |
|
|
Operating Temperature |
-40℃ to +40℃ |
|
Operating Relative Humidity |
10% to 100% RH, non-condensing |
|
Storage Temperature |
-40℃ to +85℃ |
|
Storage Relative Humidity |
5% to 100%RH, non-condensing(Sea level to 2,000 m) |
|
Vibration |
10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z. |
|
Degrees of Protection |
IP20 |
|
Safety compliance |
|
|
Safety Standard |
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12. |
|
Dielectric Strength |
I/P-OP:3750VAC/5mA/60S |
|
Insulation Resistance |
I/P-O/P:>100M Ohms / 500VDC / 25℃ / 70% RH. |
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage |
|
EMI |
GB17743,GB17625.1; EN55015;EN61000-3-2, EN61000-3-3. |
|
EMS |
EN 61000-4-2, 3,4,5,6,8,11, EN 61547. |
|
Reliability |
|
|
Life Time |
≥50,000 H@230Vac, 100% load. See lifetime vs. Tc curve for the details |
|
MTBF |
≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F) |
|
warranty |
5 years |
|
Others |
|
|
Dimensions |
205*30*20mm(L*W*H) |
|
Weight |
139±5g |
|
Remark |
|
|
|
|
Shenzhen Fahold Electronics Co.,Ltd. was established in 2010, a factory which integrating the LED drivers design, R&D and manufacture, passed the ISO9001 quality management system certification. It covering an area of 5000 squre meters, existing staff morethan 200 workers which including 25 researchers, 20 quality controls. The production capacity of Fahold are 5 million units per year.
