Indoor Tri-proof shop Light Driver 65W

Get Latest Price

Payment Type:: T/T, Paypal

Incoterm:: FOB, EXW, FCA

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Yantian, Yantian, Shekou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Productivity:	200 thousands pcs per month
Supply Ability:	200000pcs
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO9001/2015
HS Code:	8504401400
Transportation:	Ocean,Land,Air
Port:	Yantian,Yantian,Shekou

Product Description

Fahold's LED drivers solve the compatible problem between fluorescent lamps and LED lamps very successfully. They are widely used with various kinds of capacity dimming system to control the LED ceiling light, LED downlight, LED panel lights, LED wallwashers, LED strip lights and so on. Our 0-10V/1-10V dimmers support both linear and logarithmic dimming curve, dimming the lights very smoothly and are compatible with various famous lighting control systems, such as Lutron, Dynalite, Schneider, Clipsal, Osram, Philips, ABB and so on.

Product Feature

Single channel output, output current level selectable by DIP S.W.
Support 0-10V analog dimming signal, Passive or active signal.
Wide range of input voltage 100VAC ~ 240VAC
High efficiency up to 85%
Built-in active PFC function
100% output when no dimming signal input, can be used as normal power supply
Dimming effect smooth, non-flicker
Protections: Short circuit.
Suitable for indoor LED lighting application

Technical Parameter

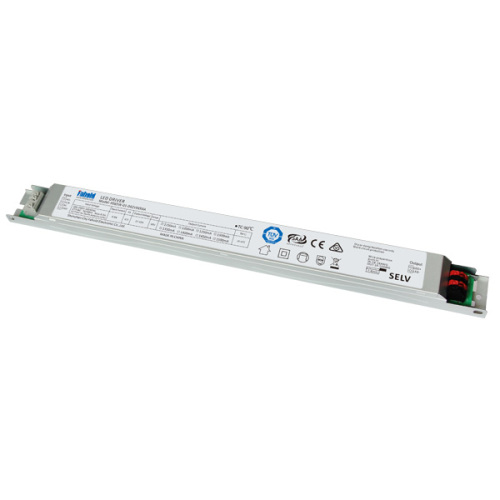

Product Name		Indoor Tri-proof LED Light Driver 65W Flicker free 1500mA Linear Driver
Item		HS65W-02
Output	Current	100mA	1500mA
	DC Voltage	27V	42V
	Rated power	--	65W
	Current Accuracy	±3%
	R & N (Max)	75mAp-p
	Channels	1
Input	Voltage Range	100VAC – 240VAC
	Frequency Range	50 – 60Hz
	Efficiency(Typ)	88%
	Power Factor(Typ)	≥ 0.98@180VAC
	AC Current(Typ)	0.11A@230VAC
	Leakage Current	<5mA/240VAC
	Inrush current(Typ)	<1A at 230VAC
Protection	Short Circuit	Output close, recovers automatically after fault removed
Function	Dimming	0-10V/PWM/RX/Dali.
Others	Dimension	246(L) 30(W)20(H)mm
	Working temp.	-20℃ ~ 50℃

Fahold's Benefits

a. Factory direct sales.

b. OEM & ODM are welcome.

c. Sample fee: negotiable, sample can be supplied in 5 days.

d. High quality, complete kinds, good stability, strong practicability.

e. Good after-sales service & point to point technical supports.

f. Energy saving, long using life.

g. Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB,Schneider, Leviton, JUNG, Berker, Be Lichtregler, etc.

h. Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.

Item No.	Input Voltage	Output Current	Output Voltage	Output Power	Cross flow accuracy
HE018-01	100-240VAC	150-600mA	30-65V	18W	±4%
HE042-01	100-240VAC	550-1300mA	30-42/20-30VDC	46W	±3%
HE042-02	100-240VAC	550-1250mA	30-42V	46W	±3%
HU40-01	100-240VAC	100-1050mA	27-42VDC	40W	±3%
HU50-01	100-240VAC	100-1200mA	30-42VDC	50W	±3%
HS20W-01	100-240VAC	100-500mA	27-42VC	20W	±3%
HW55W-02	100-240VAC	100-1300mA	25-40VDC	50W	±3%
HY12-01	220-240VAC	100-300	27-42VDC	12W	±3%
