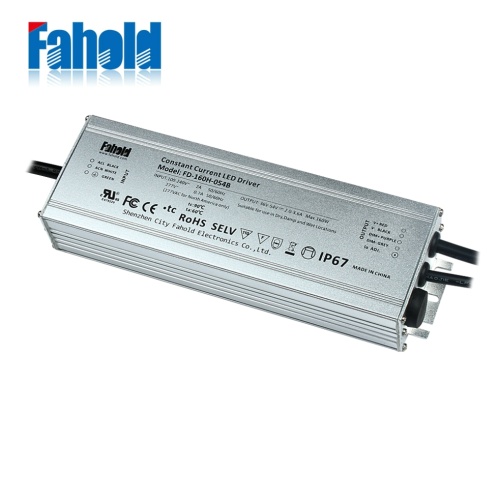

150W LED Linear High Bay Power Supply
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian |
IP67
Max output power 160W.
Constant current design.
3 in 1 dimming mode:0‐10V,PWM,RX.
Smoothly dimming(0‐100%),can dim to off.
TUV CB CE UL FCC Certified.
PROTECTION:Short Circuit,Open Circuit
Application
Street lights.High bay lights.
LED Advertising Sign,LED Architectural Lighting,LED Commercial Industrial Lighting,LED General Luminaries,Commercial Led Wall Lights.
Introduction
The document detail the electrical, mechanical and environmental specifications of a 160W constant current LED driver with 0-10V Dimming. This LED drive power supply is suitable only for LED load.
|
Model |
Wattage(W) |
Output volgag(V) |
output current(A) |
Efficiency(%) <at>100V |
|
FD-160H-038 /B/C/D |
160 |
24-38 |
2.50-5.00 |
89 |
|
FD-160H-042 /B/C/D |
160 |
30-42 |
2.30-4.40 |
90 |
|
FD-160H-054 /B/C/D |
160 |
36-54 |
2.00-3.60 |
90 |
|
FD-160H-076 /B/C/D |
160 |
45-76 |
1.30-2.75 |
91 |
|
FD-160H-143 /B/C/D |
160 |
72-143 |
0.70-1.40 |
90 |
Note
Optional letters A, B, C, D or empty, indicating that the output increases with different optional functions. The default space indicates no other optional function (basic model); A letter indicates that the aluminum shell with three-in-one dimming, B letters that three-in-one dimmable light and fine-tuning current, C letters that plastic shell with three A dimming, D letters that plastic shell base models (no dimming function)
|
Input characteristics |
|||
|
Input Voltage |
100-277Vac |
||
|
Input Frequency |
50-60Hz |
||
|
Input Current (Typ.) |
2A . @ 100-277Vac , 100% load |
||
|
Inrush Current |
60Amax. @ 100-277Vac , 100% load |
||
|
Power factor(Typ.) |
PF>0.95@ 100-277Vac , 100% load |
||
|
THD |
THD<15%@ 100-277Vac , 100% load |
||
|
Output characteristics |
|||
|
Current accuracy |
5%I0 |
||
|
No load Voltage |
2Wmax |
||
|
Efficiency |
89%@ 100-277Vac & 100% load, see efficiency vs. load curve for the details |
||
|
Ripple and Noise |
800mVp-p |
||
|
Line Regulation |
3%Io |
||
|
Load Regulation |
3%Io |
||
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 2 second |
||
|
Protection functions |
|||
|
Open circuit |
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed. |
||
|
Short Circuit |
The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed. |
||
|
Environmental conditions |
|||
|
Operating Temperature |
-40℃ to +60℃ |
||
|
Operating Relative Humidity |
10% to 90% RH, non-condensing |
||
|
Storage Temperature |
-40℃ to +85℃ |
||
|
Storage Relative Humidity |
10% to 90%RH, non-condensing(Sea level to 2,000 m) |
||
|
Vibration |
10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z. |
||
|
Aluminium housing Degrees of Protection |
IP67 |
||
|
Safety compliance |
|||
|
Safety Standard |
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12. |
||
|
Dielectric Strength |
P-S:3750VAC/5mA/60S P-E:1500VAC/5mA/60S P-E:500VAC/5mA/60S |
||
|
Insulation Resistance |
I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH. |
||
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage |
||
|
EMI |
GB17743,GB17625.1; EN55015, EN61000-3-2, EN61000-3-3. |
||
|
EMS |
EN 61000-4-2, 3,4,5,6,8,11, EN 61547. |
||
|
EFT |
Severity Level : Level2/2 line to line 1.0kv |
||
|
Surge Immunity |
Severity Level : Level2/2, 4.0kv Severity Level : Level3/3, 6.0kv Performance Criterion:B |
||
|
Reliability |
|||
|
Life Time |
≥5Years H@230Vac, 100% load. See lifetime vs. Tc curve for the details |
||
|
MTBF |
≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F) |
||
|
Warranty |
5 years |
||
|
Others |
|||
|
Aluminium housing Dimensional |
2158X66X38.2(LxWxH) |
||
|
Aluminium housing Weight |
950±10g |
||
|
Remark |
|||
|
1. The parameters above including the power factor, THD, efficiency are all tested under the ambient temperature 25℃ and humidity 50%, AC input 230V and 90% output load. 2. Io is rate output current. |
|||
