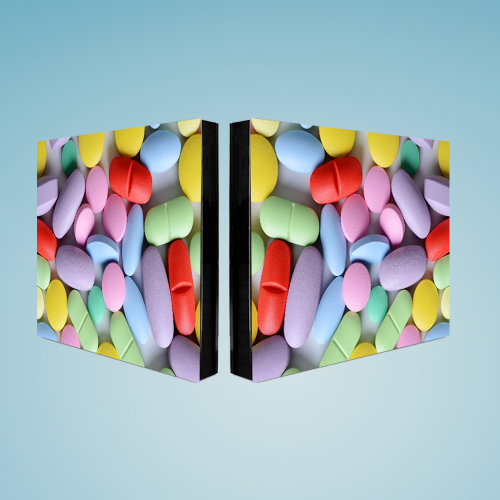

Led Screen For Stage Background
The inherent characteristics of LED determine that it is the most ideal light source to replace the traditional light source, and it has a wide range of uses. Its advantages are: small size, low power consumption, long service life, high brightness, low heat, high brightness, low heat, environmental protection, durable.
As the developing of rental led display, definition is higher and higher, the tendency of Led Screens for Stage Rental on the market at present is to development with high precision cabinet structure for small pixel pitch. Size of Outdoor Rental LED Display Screen cabinet is getting standardization, for example 500mm*500mm cabinet, easy to calculate total panel size.
Fast&safety installation, accessories and cable type, easy to recognize, realize rapid maintenance, can remove and replace the parts fast. self-checking function can real-time monitor power supply and signal working condition of each product, when a product does not display, can quickly judge the problem, quickly make a corresponding measures.
With die casting aluminum cabinet design, light, thin and fast installation are the main features of Cable Free Rental Led Screen. Light weight cabinet , quick installation, dismantling and transportation, suitable for large size of rental and fixed installation applications. And processing adopts synchronous control system, an acceptable DVI, VGA, HDMI, S - video, compound, YUV video input signal, can broadcast video, graphic program at will, in real-time, synchronous, clear information dissemination way play all kinds of information. Color is clear, strong ability to adapt. Privaled's PH6.6 outdoor led display with die casting cabinet has the following advantages:
Product features
High stability
High water protection of IP65, suitable for a verity of outdoor environment, adopt the beehive design on the back of cabinet with higher rigidity.
Easy installation
Special location pins working with flywheel fast lock realize seamless connection and faster installation.
Flywheel connectors make the locking fast
Working without noise, check the working status at any time.
Easy maintenance
Installation of RO series of rental led display:Support fixed and hanging system
High refresh rate
parameter:
| Model | Items | PH6.6 |
| Unit Module | Model number | Psc-6.6 |
| Pixel pitch | 6.6mm | |
| Size of pixel | SMD3030(3 in 1) | |
| Pixel configuration | 1R1G1B | |
| Size of block module | 320mm×160mm | |
| Resolution of module | 48×24 | |
| Density | 22500dots/m² | |
| Module power | 34w | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h*t) | 640mm×640mm×125mm | |
| Weight of cabinet | 12.5KG | |
| Support hanging or not | Yes | |
|
Main Parameter |
Best viewing distance | >6m |
| Driving method | 1/8 scanning | |
| Best viewing angle | ≤140° | |
| Max power consumption | 800W/m² | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Frame frequency | 60Hz | |
| Refresh frequency | 1400-4800Hz | |
| Brightness | >5500cd/m² | |
| Working voltage | AC220V/110V±10% | |
| Working temperature | -20℃~50℃ ±10% | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| IP grade | IP65 | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
