High resolution P1.56 P1.875 indoor led screen panel

High resolution P1.56 P1.875 indoor led screen panel

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500m2/month
Supply Ability:	500m2/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,FCA
Certificate:	ISO2004
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

What does a small pixel pitch LED display screen requires

Visual effect. Piva LED screen are always under the high-definition camera`s test, the refresh and color depth requirements is stringent. So the configuration is higher.

Priva LED PV series of HD led display screen has lighter cabinet weight. Front& back maintenance function. Also with modular accessories, it is much convenience for Maintenance. PV series LED display has following features and function.

LED screen project

Features and benefits

1, lightweight, weighs 6 kg, installation up easily; ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;

2, Support front & back maintenance. with modular accessaries.

1 Jpg

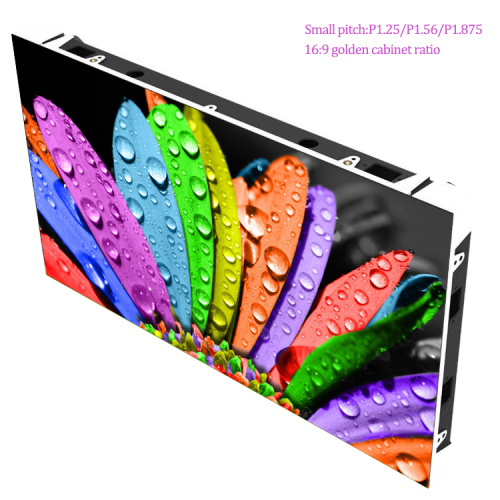

3, 16:9 golden cabinet ratio ；High precision cabinet

8 2 Small Pixel Pitch Led Screen

4, Smart module with calibration data ；power Redundancy&Signal dual backup

5, High refresh rate and nature color，Vivid picture effective

LED display screen 10

parameter:

Model	PV1.25	PV1.56	PV1.875
Pixel Pitch	1.25mm	1.5625mm	1.875mm
Pixel Confguration	SMD1010	SMD1010	SMD1515
Pixel Matrix Per Panel(dots/m2)	120*135 dots	96*108 dots	80*90 dots
Pixel Density	640000dots/m2	360000dots/m2	284444dots/m2
Panel Dimension(WxHxD)	600x337.5mm
Panel Material	Die-casting Aluminum
Panel Weight(Kg/panel)	6kg
Color Depth(Bit)	14bit
refresh Rate	≥3840Hz
Scan	Scan 1/30	Scan 1/32	Scan 1/30
Brightness	>800cd/m2
Viewing angle	140℃
Viewing distance	>1.5Meters	>2Meters	>2Meters
display color	16.7M
IP Rating	IP30
AC Power input(V)	AC110V~220V±10%
AC Power Frenquency(Hz)	50~60Hz
Max power (W/m2)	700w/m2
Avg power (W/m3)	240w/m2
Control Mode	Synchronization controlled by PC
Date transmission	CAT5/Optic Fiber
Controlling system	linsn,Nova,Mooncell
Video signal input	Composite,DVI,VGA,HDMI,HDSDI
Working Temperature(℃)	-20℃~-65℃
Humidity(RH)	10%~90%RH
Life span	100,000Hrs
Pixel failing Rate	0.0001
Working Environment	Indoor
