pH3.9 Indoor Full Color Rental LED Display

pH3.9 Indoor Full Color Rental LED Display

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: CIF, FCA

Delivery Time:: 25 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	4000m2/month
Supply Ability:	50000m2/year
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	CIF,FCA
Certificate:	ISO2004
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

pH3.9 Indoor Full Color Rental LED Display

Electronic screen operation steps: Open the screen: Please turn on the computer first, and then open the electronic screen. Turn on the power for each device (make sure that the input voltage meets the product requirements) Turn on the LED screen (the screen will flash regionally when the screen is powered up, indicating that the screen is powered), turn on the computer, and make sure that the graphics card is set correctly (if it is incorrect, no display Screen (ie black screen), open the control software, and set the basic pixel size and display area settings (this setting does not affect the display of the LED display screen).

Advanced Version,Thinking what you want.

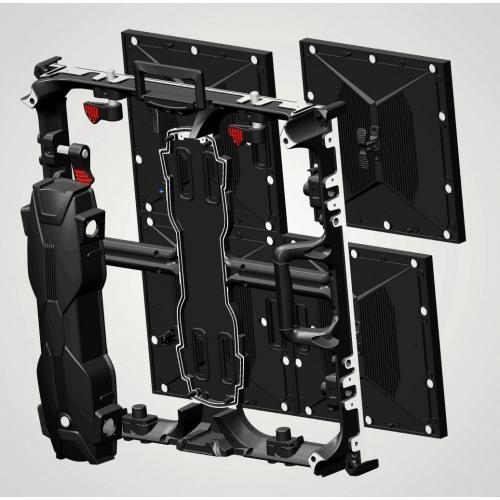

With die casting aluminum cabinet design, light, thin and fast installation are the main features of Rental LED display screen. Light weight cabinet , quick installation, dismantling and transportation, suitable for large size of rental and fixed installation applications. And processing adopts synchronous control system, an acceptable DVI, VGA, HDMI, S - video, compound, YUV video input signal, can broadcast video, graphic program at will, in real-time, synchronous, clear information dissemination way play all kinds of information. Color is clear, strong ability to adapt. Privaled's LED rental display Screen has the following advantages:

Lock design

Good heat dissipation

Seamless splicing

Great consistence

PH3.9 Outdoor Rental LED Display

Product features and benefits

1, lightweight, weighs 7 kg, installation up easily;

2, ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;
3, high precision, mechanical processing precision is around 0.1 mm;

4, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;

5, reliable - strength, high hardness, good heat dissipation effect.
6, compatibility, one cabinet can be used for indoor and outdoor modules. One time investment for led cabinet body,

parameter:

Model	Items	PH3.9	PH4.8
Unit Module	Model number	PR3.9O	PR4.8O
	Pixel pitch	3.9mm	4.8mm
	Size of pixel	SMD1921	SMD1921
	Pixel configuration	1R1G1B	1R1G1B
	Size of block module	250mm×250mm	250mm×250mm
	Resolution of module	64×64	52×52
	Density	65536dots/m²	43264dots/m²
	Module power	15w	50w
Cabinet	Cabinet material	Die casting Alu	Die casting Alu
	Size of cabinet(lht)	500mm×500mm×70mm
	Weight of cabinet	8.5KG	8.5KG
	Support hanging or not	Yes	Yes
Main Parameter	Best viewing distance	>3m	>4m
	Driving method	1/16 scanning	1/12 scanning
	Best viewing angle	≤140°
	Max power consumption	<950W/m²	<950W/m²
	Average power consumption	<450W/m²	<450W/m²
	Support front removeable or not	Yes	Yes
	Colors	>16.7M
	Gray scale	16bits
	Color temperature	6500K
	Control method	Synchronization
	Driving device	Constant current
	Frame frequency	60Hz
	Refresh frequency	1000-4800Hz
	Brightness	>6000cd/m²	>6000cd/m²
	Working voltage	AC100/220V 50/60HZ
	Working temperature	- 20℃~+50℃
	Out-of control point	<0.0001
	Brightness Control	256 grade
	IP grade	IP65/55
	Mtbf	10,000Hours
	Life span	100,000Hours
