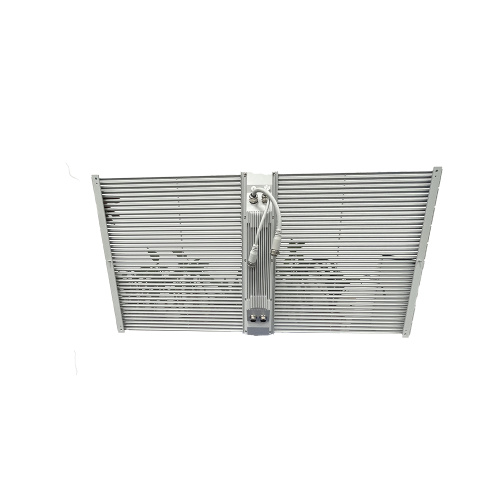

P10 Outdoor Curtain LED Display with High Brightness

What is the difference between DIP and SMD LED grille curtain screen?

The DIP LED grille curtain screen has a built -in single -color chip, which is assembled by one pixel of a full color display by the three different colors of red, green, and blue.

The SMD outdoor transparent led screen display uses an RGB LED chip. There are three very small cores in a single node welded on the surface of the circuit board, which is the three -light core of red, green and blue in each lamp.

The difference between the two is different crafts. One is SMD (table sticker) and the other is DIP (direct insertion). Straightenly insertion should be stable. DIP are generally used for outdoor, and SMD are generally used indoors. However, with the technical breakthrough, the brightness of the tablet LED has been greatly improved, and the waterproof treatment can be solved well. Therefore, there are more and more SMD outdoor transparent LED display applications for outdoor. Table stickers have higher brightness and brightness, broader perspectives, and expensive prices are not more expensive than direct insertion. At present, the format packaging method is mainstream.

Advantage

1.High Transparency

The high transparency of the adhesive led transparent screen will not affect the indoor and outdoor lighting and will not affect the original design.

2.Super Thin & Light

The weight is 8kg/Sets The thickness is 1mm

3.High brightness

Up to 7000cd/㎡ for day time use, it’s clearly visible even under direct sunlight,which greatly extend the application time.

4.High refresh rate

3840Hz high refresh rate for immediate dynamic response to present vivid display, meeting the requirements of high visual quality for commercial use.

5.Waterproof IP65

Cabinet has IP65 from back and front,No need extro protection.
