P1515 grille Curtain Outdoor Transparent Led screen
- Transportation:
- Ocean, Air
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500 square meter/month |
| Supply Ability: | 500 square meter/month |
| Payment Type: | L/C,T/T |
| Certificate: | ISO2015:9001/CE/FCC/CB/EMC |
| Transportation: | Ocean,Air |
| Port: | SHENZHEN |
What is an grille curtain LED screen?
The LED grille display screen has the product form of strip, hollow and light transmission, also known as curtain led screen, curtain led wall screen, etc.
Due to its light weight, small wind load and flexible installation, it has a more flexible application approach.

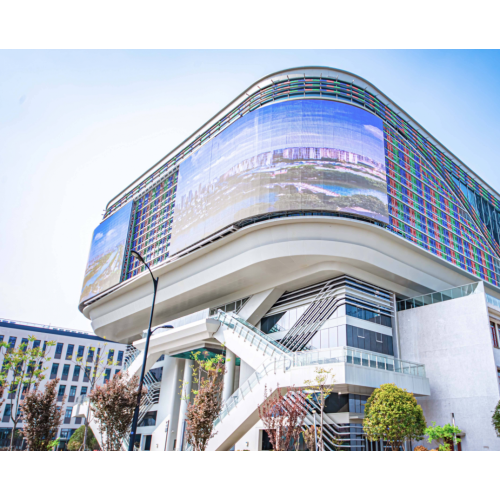

It is usually used for building exterior walls and stage LED rental displays, etc. It is a new generation of outdoor LED screen products.
Especially suitable for building extra large outdoor led displays.
Product advantage:
1、Super light weight-The weight as light as 7.5-11KG/m²
2、High transparency-Beautiful wind and light through design. Transparency up to 67-80%
3、Low power consumption,high heat dissipation-Led media facade is energy saving
4、Hight IP grade-Cabinet has IP66 from back and front
5、Real front& back service-No need to reserve space at back of led display
1
Movable structure design
Easy installation
Items
P15.625 (Double LED lamp)
P15.625 （High transparency）
Module number
PH15.625
PH15/25
PH15/31.
PH15/41.6
PH15/50
Pixel pitch
15.625mm
15.625/25mm
15.625/31.2mm
15.6/41.6mm
15.6/50mm
Size of pixel
DIP346
DIP346
Pixel configuration
1R1G1B
1R1G1B
Size of block module
23.8mm*1000mm
10*1000mm
Resolution of module
2*64
64×1
Density
4096dots/m²
2560dots/m²
2048dots/m²
1536dots/m²
1280dots/m²
Module power
15W
12W
12W
12W
12W
Cabinet material
Alu cabinet
Alu cabinet
Alu cabinet
Alu cabinet
Alu cabinet
Size of cabinet(l*h*t)
500mm×1000mm
500mm×1000mm
500mm×1000mm
500mm×1500mm
500mm×1500mm
Weight of cabinet
13.5KG
9KG
7.5KG
7KG
6.5KG
Support hanging or not
Yes
Yes
Yes
Yes
Yes
Best viewing distance
>16m
>15m
>20m
>25m
>30m
Driving method
Static scanning
Static scanning
Best viewing angle
≤140°
≤140°
Max power consumption
<680W/㎡
<700W/㎡
<600W/㎡
<500W/㎡
<380W/㎡
Ave power consumption
<272W/㎡
<280W/㎡
<240W/㎡
<200W/㎡
<152W/㎡
Colors
>16.7M
>16.7M
Gray scale
16bits
16bits
Color temperature
6500K
6500K
Control method
Synchronization
Synchronization
Driving device
Constant current
Constant current
Frame frequency
60Hz
60Hz
Refresh frequency
3840Hz
>2000Hz
Brightness
9000cd/m²
11000cd/m²
10000cd/m²
8700cd/m²
7500cd/m²
Working voltage
AC220V/110V±10％
AC220V/110V±10％
Working temperature
-20℃~50℃ ±10％
-20℃~50℃ ±10％
Brightness Control
256 grade
256 grade
IP grade
IP65
IP65
Mtbf
10,000Hours
10,000Hours
Life span
100,000Hours
100,000Hours
Transparency
32%
58.00%
68.00%
75.00%
80.00%
