Product Description

PH2.97 indoor led display

Some of the most common problems with LED displays: The display is confusing, but the signal output to the next board is normal. Check whether the STB latch output corresponding to 245 is connected to the latch terminal of the driver IC or the signal is shorted to other lines. The display is confusing and the output is abnormal. Check whether the STB signal latched by the clock CLK is shorted. Check whether the clock CLK of 245 has input or output. Check whether the clock signal is shorted to other lines.

What does a Led stage rental display requires

Visual effect. Piva LED stage rental screens are always under the high-definition camera`s test, the refresh and color depth requirements is stringent. So the Indoor Led Display configuration is higher. Cabinet structure and installation. Led Displays for Stage Rental, it is always installed dismantled and transported frequently , so the Indoor High Definition Led Screen cabinet structure need to be easy for installation, demolition and light weight for transportation . So the rental led display usually uses die-cast aluminum cabinet , thin structure , high stability, more convenient to install and dismantle at any time suitable for concerts, stage events.

Priva Led PR series indoor rental led displays are professional products for rental application. With rich experience in LED display Industry, Priva LED Display for Stage Event will meet customer`s variety needs.

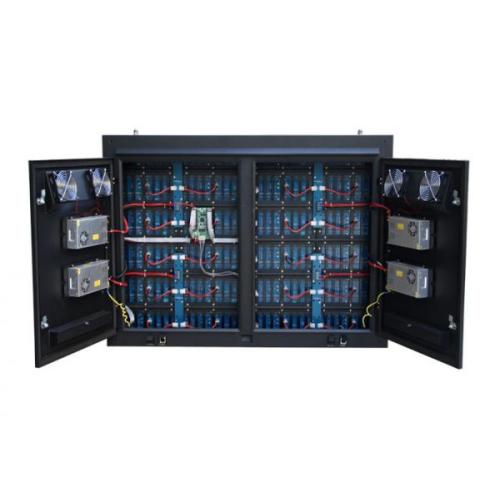

Priva PH2.97 LED Display for Stage Event

Features and benefits

1, lightweight, weighs 7 kg, installation up easily;

2, ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;
3, high precision, mechanical processing precision is around 0.1 mm;

4, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;

5, reliable - strength, high hardness, good heat dissipation effect.
6, compatibility, one cabinet can be used for indoor and outdoor modules. One time investment for led cabinet body,

parameter:

Unit Module	Model number	PR2.5I	PR2.9I	PR3.9I
	Pixel pitch	2.5mm	2.9mm	3.9mm
	Size of pixel	SMD1921	SMD1921	SMD1921
	Pixel configuration	1R1G1B	1R1G1B	1R1G1B
	Size of block module	250mm×250mm	250mm×250mm	250mm×250mm
	Resolution of module	100×100	84×84	64×64
	Density	160000dots/m²	112896dots/m²	65536dots/m²
	Module power	50w	50w	50w
Cabinet	Cabinet material	Die casting Alu	Die casting Alu	Die casting Alu
	Size of cabinet(lht)	500mm×500mm×70mm
	Weight of cabinet	8.5KG	8.5KG	8.5KG
	Support hanging or not	Yes	Yes	Yes
Main Parameter	Best viewing distance	>3m	>3m	>4m
	Driving method	1/25 scanning	1/28 scanning	1/16 scanning
	Best viewing angle	≤140°
	Max power consumption	<950W/m²	<950W/m²	<950W/m²
	Average power consumption	<450W/m²	<450W/m²	<450W/m²
	Support front removeable or not	Yes	Yes	Yes
	Colors	>16.7M
	Gray scale	16bits
	Color temperature	6500K
	Control method	Synchronization
	Driving device	Constant current
	Frame frequency	60Hz
	Refresh frequency	1000-4800Hz
	Brightness	>1000cd/m²	>1000cd/m²	>1000cd/m²
	Working voltage	AC100/220V 50/60HZ
	Working temperature	- 20℃~+50℃
	Out-of control point	<0.0001
	Brightness Control	256 grade
	IP grade	IP43
	Mtbf	10,000Hours
	Life span	100,000Hours
