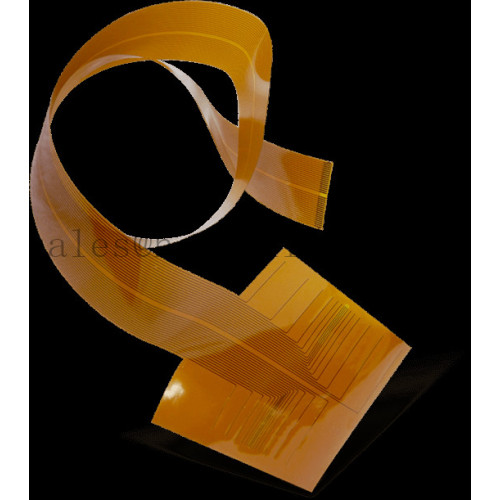

flexible printed circuit boards

flexible printed circuit boards are arrangement of components and printed circuitry made from flexible materials. These PCBs are also referred as flex circuits or flexible circuits. Flexible circuit boards comprise of metallic layer of traces, which are bonded to a dielectric layer. Hemeixinpcb is one of the leading flex PCB manufacturers, and we can provide you flexible circuits in a wide range of capabilities and specifications.

HemeixinPCB has created the option of checking the required impedance on the customer's circuit board, so as to modify the circuit board, or the tracks and the layer structure if necessary. The impedance is largely determined by the track geometry, the structure of the layers and the dielectric constant (Er) of the materials used.

After making the circuit board, the impedances are checked and recorded. The results of the measurements are available on request at any time.
