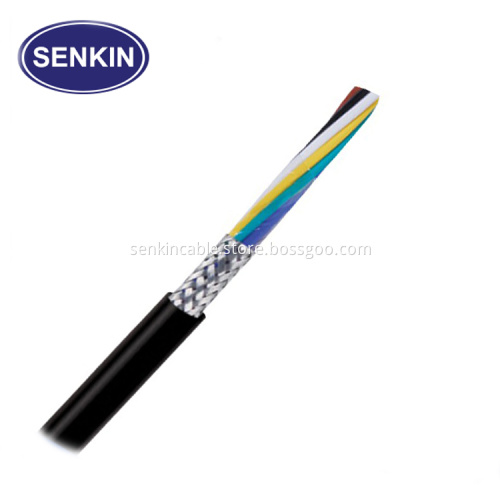

TPU Jacket Multi-conductor Round Cable

Get Latest Price

Payment Type:: T/T, Western Union, Cash

Incoterm:: FOB, CIF, EXW

Min. Order:: 10000 Meter

Min. Order:: 10000 Meter

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air, Express

Port:: Yantian Shenzhen, Shekou Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen,Guangdong
Productivity:	5000000 M/Month
Supply Ability:	500000 M/Week
Payment Type:	T/T,Western Union,Cash
Incoterm:	FOB,CIF,EXW
Certificate:	TS16949;ISO13485;ISO9001
HS Code:	85441100
Transportation:	Ocean,Land,Air,Express
Port:	Yantian Shenzhen,Shekou Shenzhen

Product Description

For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.Color: black , Red, Gre en, Blue , Orange , White, different colors can be customized.

Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees

PUR TPU SILICONE TPE TPV SPIRAL CABLE

Main Industry Application Products

Bone Conduction Transduer
Speed Sensor ; Angle Snesor ; Temperture Sensor ; Urea Sensor
CNC Equipment Robot Arm
AED ; Electrocardiograph

Description of TPU Jacket Multi-conductor Round Cable

Conductor structure: see common conductor structure table or customization
Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
Sheath material : general with polyester type TPU or polyether type TPU
Working temperature : -60 ℃--250 ℃
Production range: standard section 0.03-6 square meter or customization
Multiple conductors: 1-37 conductors or customization

Feature Of TPU Jacket Multi-conductor Round Cable

Flexibility
Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times)
Cold Resistance
Flame Retardant
Oil Resistance
Abrasion Resistance.

Details HD Photo Of TPU Jacket Multi-conductor Round Cable

TPU Jacket Multi-conductor Round Cable

The Application Of Our TPU Jacket Multi-conductor Round Cable

TPU/PUR Cable's Application On CNC Equipment,Sencor And Connector Such Like Those Connector Production By Lemo,ODU:

Base On The Features Of Our PUR/TPU Cable--Flexibility&Oil Resistance,Many Industry Choose Our TPU Jacket Multi-conductor Round Cable

PUR TPU TPE SILICONE TPV SPIRAL CABLE SUPPLIER

TPU/PUR Cable's Application On Medical Equipmet:

Base On The Features Of Our PUR/TPU Cable--Flexibility&Oil Resistance,Medical Industry Choose TPU Jacket Multi-conductor Round Cable

TPU TPE PUR PU SILICONE SPIRAL CABLE SUPPLIER

Specification Data Sheet Of Our Normal TPU Jacket Multi-conductor Round Cable

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor(Option)	Filling(Option)
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper	Kevlar/Nylon
12	65/0.254 1/2.05	2.05	<7	2.65		Kevlar/Nylon
14	41/0.254 1/1.63	1.63	<10	2.2		Kevlar/Nylon
16	26/0.254 1/1.29	1.29	<15	1.9		Kevlar/Nylon
18	41/0.16 165/0.08 105/0.11	1.02	<25	1.6		Kevlar/Nylon
20	20/0.16 110/0.08 70/0.1	0.81	<35	1.4		Kevlar/Nylon
22	17/0.16 65/0.08 41/0.1	0.64	<55	1.2		Kevlar/Nylon
24	26/0.1 41/0.08 120/0.05	0.58	<90	1		Kevlar/Nylon
26	7/0.16 24/0.08 65/0.05	0.48	<125	0.9		Kevlar/Nylon
28	11/0.1 19/0.08 45/0.05	0.38	<210	0.85		Kevlar/Nylon
30	7/0.1 19/0.06 28/0.05 1/0.3	0.3	<320	0.7		Kevlar/Nylon
32	1/0.254 7/0.08 18/0.05	0.2	<500	0.55		Kevlar/Nylon
34	1/0.2 7/0.06	0.2	<560	0.45		Kevlar/Nylon
36	1/0.16 7/0.05	0.16	<870			Kevlar/Nylon
38	1/0.127 7/0.04	0.12	<1400			Kevlar/Nylon
40	1/0.08	0.08	<3500			Kevlar/Nylon

Specification Data Sheet Of Our High Temperature Resistant TPU Jacket Multi-conductor Round Cable

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor(Option)	Filling(Option)
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper	NO
12	65/0.254 1/2.05	2.05	<7	2.65		NO
14	41/0.254 1/1.63	1.63	<10	2.2		NO
16	26/0.254 1/1.29	1.29	<15	1.9		NO
18	41/0.16 165/0.08 105/0.11	1.02	<25	1.6		NO
20	20/0.16 110/0.08 70/0.1	0.81	<35	1.4		NO
22	17/0.16 65/0.08 41/0.1	0.64	<55	1.2		NO
24	26/0.1 41/0.08 120/0.05	0.58	<90	1		NO
26	7/0.16 24/0.08 65/0.05	0.48	<125	0.9		NO
28	11/0.1 19/0.08 45/0.05	0.38	<210	0.85		NO
30	7/0.1 19/0.06 28/0.05 1/0.3	0.3	<320	0.7		NO
32	1/0.254 7/0.08 18/0.05	0.2	<500	0.55		NO
34	1/0.2 7/0.06	0.2	<560	0.45		NO
36	1/0.16 7/0.05	0.16	<870			NO
38	1/0.127 7/0.04	0.12	<1400			NO
40	1/0.08	0.08	<3500			NO

Senkin Company's Info:

Shenzhen SenKin Electronic Co.,Ltd. has more than 10 years of experience in manufacturing cable and our major products are Silicone Cable/PTEE Cable/PUR /TPU Cable which used in the Auto,Sensors,High temperature resistance which use in Special Industry,Military Industry,Medical Industry,Robot Industry,Aerospace Industry with the monthly turnout of 500,000 meters.

TPU Jacket Multi-conductor Round Cable

We handle tooling,production and packaging with the use of our eight production lines,supported by 150 staff members in our 2500 sqm factory.Our resources including production equipment and testing facilities from Taiwan and Japan enable us to turn out up to 500,000 meters monthly and provide major professional OEM service.We are always concentrate on what your request,could make the very professional suggestion and useful solution for your cable project.
