26AWG Varnished Wire KEVLAR Filling TPU Cables
- Payment Type:
- T/T, Western Union, Cash
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 10000 Meter
- Min. Order:
- 10000 Meter
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian Shenzhen, Shekou Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,Guangdong |
|---|---|
| Productivity: | 5000000 M/Month |
| Supply Ability: | 500000 M/Week |
| Payment Type: | T/T,Western Union,Cash |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | TS16949;ISO13485;ISO9001 |
| HS Code: | 85441100 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian Shenzhen,Shekou Shenzhen |
Polyurethane (PUR, PU) is a durable polymer which is used as a coating for sensor cabling and as a sealing compound to keep out water and as a potting compound to protect electronics components from damage.
26AWG Varnished Wire KEVLAR Filling TPU Cables
- Flexible Waterproof TPU Cable
- 26AWG Tinned Copper TPU Cable
- TPU Cable For M8 Connector
Main Industry Application Products
Bone Conduction Transduer
Speed Sensor ; Angle Snesor ; Temperture Sensor ; Urea Sensor
CNC Equipment Robot Arm
AED ; Electrocardiograph
Description of Senkin 26AWG Varnished Wire KEVLAR Filling TPU Cables
- Conductor structure: see common conductor structure table or customization
- Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
- Sheath material : general with polyester type TPU or polyether type TPU
- Working temperature : -60 ℃--250 ℃
- Production range: standard section 0.03-6 square meter or customization
- Multiple conductors: 1-37 conductors or customization
Feature Of 26AWG Varnished Wire KEVLAR Filling TPU Cables
- Flexibility
- Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times)
- Cold Resistance
- Flame Retardant
- Oil Resistance
- Abrasion Resistance.

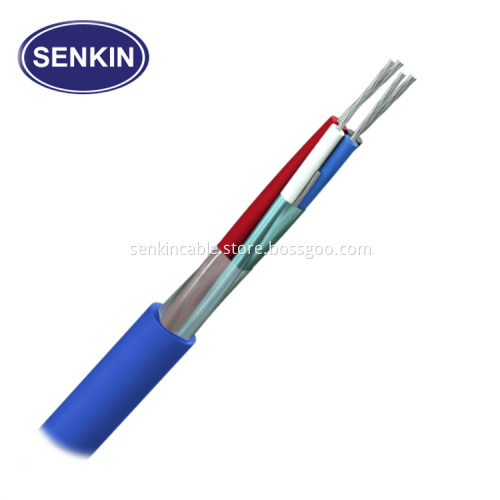

Details HD Photo Of 26AWG Varnished Wire KEVLAR Filling TPU Cables
The Application Of Our 26AWG Varnished Wire KEVLAR Filling TPU Cables
TPU/PUR Cable's Application On CNC Equipment,Sencor And Connector Such Like Those Connector Production By Lemo,ODU:
Base On The Features Of Our PUR/TPU Cable--Flexibility&Oil Resistance,Many Industry Choose Our 26AWG Varnished Wire KEVLAR Filling TPU Cables
TPU/PUR Cable's Application On Medical Equipmet:
Base On The Features Of Our PUR/TPU Cable--Flexibility&Oil Resistance,Medical Industry Choose Our 26AWG Varnished Wire KEVLAR Filling TPU Cables
Specification Data Sheet Of Our Normal 26AWG Varnished Wire KEVLAR Filling TPU Cables
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper |
Kevlar/Nylon |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | Kevlar/Nylon | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | Kevlar/Nylon | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | Kevlar/Nylon | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | Kevlar/Nylon | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | Kevlar/Nylon | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | Kevlar/Nylon | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | Kevlar/Nylon | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | Kevlar/Nylon | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | Kevlar/Nylon | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | Kevlar/Nylon | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | Kevlar/Nylon | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | Kevlar/Nylon | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | Kevlar/Nylon | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | Kevlar/Nylon | ||
| 40 | 1/0.08 | 0.08 | <3500 |
Kevlar/Nylon |
Specification Data Sheet Of Our High Temperature Resistant 26AWG Varnished Wire KEVLAR Filling TPU Cables
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper |
NO |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | NO | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | NO | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | NO | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | NO | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | NO | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | NO | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | NO | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | NO | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | NO | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | NO | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | NO | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | NO | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | NO | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | NO | ||
| 40 | 1/0.08 | 0.08 | <3500 |
NO |
Senkin Company's Info:
Shenzhen SenKin Electronic Co.,Ltd. has more than 10 years of experience in manufacturing cable and our major products are Silicone Cable/PTEE Cable/PUR /TPU Cable which used in the Auto,Sensors,High temperature resistance which use in Special Industry,Military Industry,Medical Industry,Robot Industry,Aerospace Industry with the monthly turnout of 500,000 meters.
26AWG Varnished Wire KEVLAR Filling TPU Cables
We handle tooling,production and packaging with the use of our eight production lines,supported by 150 staff members in our 2500 sqm factory.Our resources including production equipment and testing facilities from Taiwan and Japan enable us to turn out up to 500,000 meters monthly and provide major professional OEM service.We are always concentrate on what your request,could make the very professional suggestion and useful solution for your cable project.
FAQ:
Q: Where Is Your Factory Located In?
A: Our Factory Located In Shenzhen City,Near to Shekou Port or Yantian Port
Q: What Can You Do For Client?
A: 1. Provide Very Useful And Professional Solution For Client's Request
2. OEM According With Client's Drawing or Design
3. 100% Quality Inspect
Q: What Is Your Payment Way?
A: We Accept T/T,Cash,Westerm Union And L/C
Q: What's The Business Step With Your Factroy?
A: Pls Feel Your Free Time To See The Below Info:
Our Shipping Service:
We provide shipping by sea,shipping by air,shipping by train,shipping by truck and express.
All the way will be choosed by client.
All Details if you cannot understand very well pls feel your free time to contact the sales man online by Skype or by Email.
Skype : allenkiko214914
