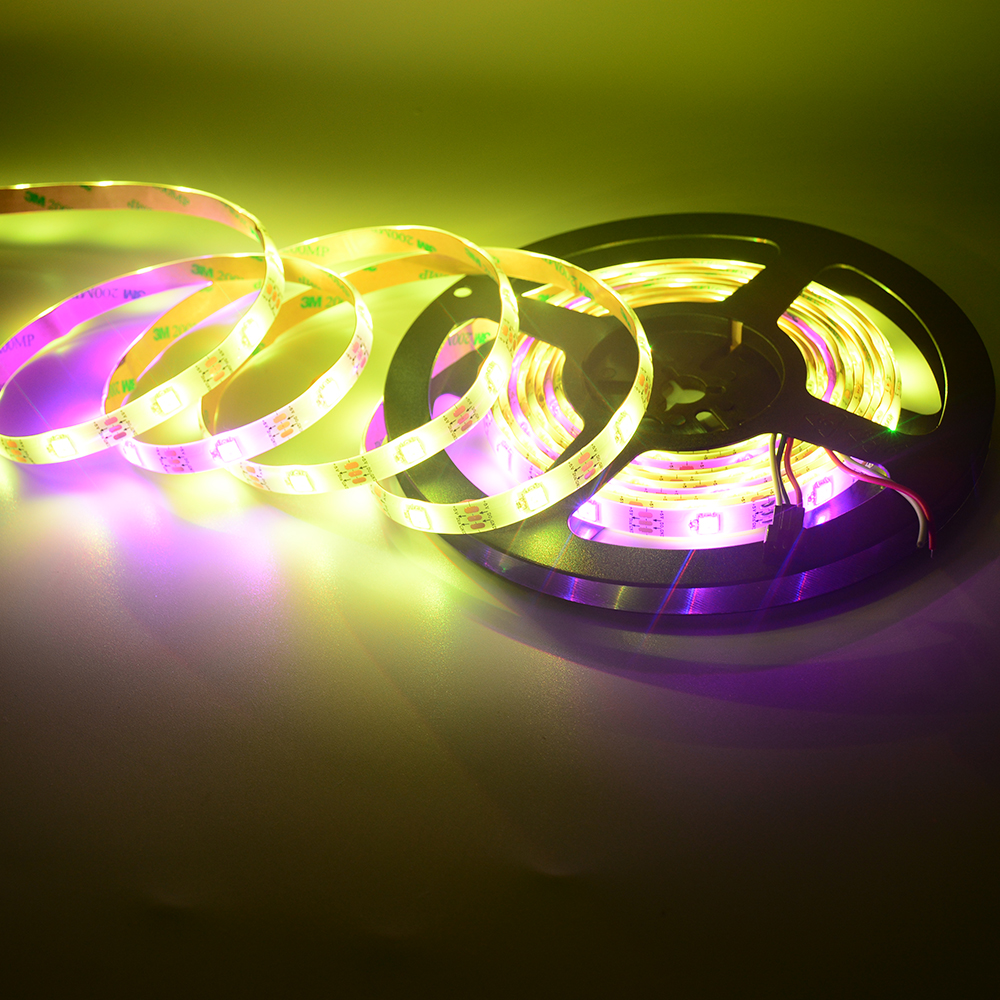

5050RGBWWA warm white light bead, SK6812 built-in IC, 60l-60led casing waterproof

Product information

Name: SK6812WWA

Brand: new technology

Item no. : SM5050 SK6812WWA

Color: Amber + Warm White + Natural White + Blue White

Product features

SK6812WWA is an intelligent external LED light source with a set control circuit and a luminous body.The outer type is the same as a 5050LED light bulb, each of which is a pixel point.Pixel contains internal intelligent digital interface data latch signal shaping amplifier drive circuit, power regulating circuit, the built-in constant current circuit, high precision, RC oscillator output driver USES the patent PWM technology, effectively ensure the pixel color of light in high consistency.Set data protocol adopts single polarity size zero communication method, the pixel points in the electrical after reset, DIN side accept from control machine transmission of data, first of all the 24 bit data is sent after the first pixel extraction, sent to the data latch pixels interior, the rest of the data through the internal plastic processing circuit plastic enlarged through the DO output port began to forward to the next cascaded pixel, every pixel of transmission, signal reduce 24 bit.The pixel point adopts the automatic shaping and forwarding technology, so that the cascade data of the pixel point is restricted by the signal transmission, and only the transmission speed requirement of the restricted signal is limited.

LED has low voltage drive, environmental energy saving, brightness high, scattering Angle, good consistency, ultra-low power consumption, super long life etc.The control circuit is integrated with the LED and the circuit becomes simpler, smaller and easier to install.

LED light string, LED module, LED soft and hard light bars, LED guardrails, LED appearance/scene lighting

LED light source, LED pixel screen, LED alien screen, various electronic products, electrical equipment running lamp.

Top SMD internal integrated high quality external control single line serial cascade IC;

Electricity?Integrated with RGB chip in the SMD 5050 components, it forms a complete external control pixel, and the mixing effect is uniform and high.

Internal data plastic?, any pixels that receive a signal and then go through the waveform shaping and reoutput to ensure the line?Waveform distortion?Will be?Gal.

Internal power reset and power off?You can't light up the lights;

Gray adjustment circuit (256 gradable grayscale adjustable),

Red light drive special treatment, color matching,

Single line data transmission, infinite cascade.

Reconstructive and forward strengthening technology, the transmission distance between two points is more than 10M.

The data transmission frequency can be up to 800Kbps.30 frames per second, cascade?It's less than 1024.

The built-in power invert protection module, the ac power supply will not damage IC.
