The 353535mini is built with integrated IC lamp full color drive chip 3535RGB integrated IC SK6812

XT1505 (SK6812)

The external control group is an LED light source

XT1505 (6812) product overview:

SK6812 is a set control charge?And the light electricity?An integrated intelligent external LED light source.Its exterior is the same as a 3535LED light bulb, each of which is a pixel.What is inside the pixels?Intelligent multiword interface data lock and plastic amplification drive power?The power stabilized circuit, the built-in constant current circuit, the high accuracy RC oscillator, the output drive adoption patent PWM technology, the valid guarantee?The color of the light within pixels is highly consistent.

Does the data protocol take a single polarity?Yards of communication methods, pixels in electricity after reset, DIN side accept from control machine transmission of data, first of all the 24 bit data is sent after a pixel extraction, data latch to pixels interior, the rest of the data through the internal plastic?Electricity?When the plastic is enlarged, the output is transferred from the DO port to the next level of pixels, each passing by a single pixel, and the signal is reduced by 24bit.The pixels point is the auto-shaping forward technique, which is the number of cascades in the pixels.Restricted by signal transmission, only limited transmission speed?Requirements.

LED has low voltage drive, environmental protection energy saving,??High, scattering Angle?Big, consistent, super low?The advantages of super long life.Will control the electricity?Integrated with LED, electricity?Become?Simple, small, installation?With Jane?It is.

The main areas of application:

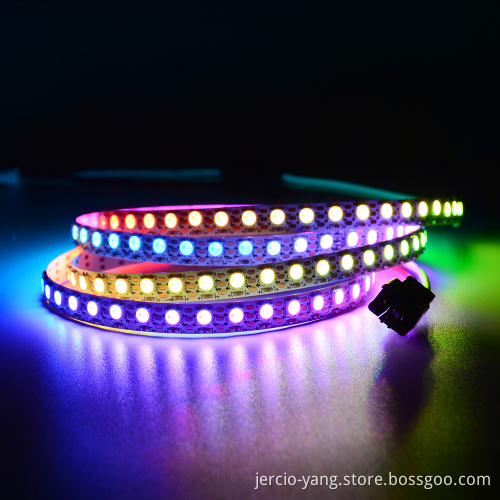

LED full-color luminescent lamp string, LED full color module, LED, light bar, LED guardrail, LED appearance/scene lighting

LED point light source, LED pixel screen, LED screen, various electronic products, electrical equipment running lamp.

The features of XT1505 (SK6812) :

Top SMD is integrated with high quality external single-strand serial cascade IC;

Control the electricity?Integrated with RGB chips in the SMD 5050 components, a full external control pixel is formed, and the mixing effect is uniform and consistent.

A built-in data plastic?Any pixels that receive a signal and then go through the waveform and reprint to ensure the line?Waveform distortion?Will be?Gal.

The built-in power reset and power reduction?You don't have any lights on.

Gray adjustment circuit (256 gray-scale adjustable),

The red light drives the special treatment, the color is more balanced,

Single line data transmission, infinite cascade.

Reconstructive retweeting technology, the transmission distance between two points exceeds 10M.

The data transmission frequency can be up to 800Kbps, when the speed is refreshed.30 frames per second, cascading?Less than 1024 points.

The built-in power back-up protection module is not damaged by the power supply.
