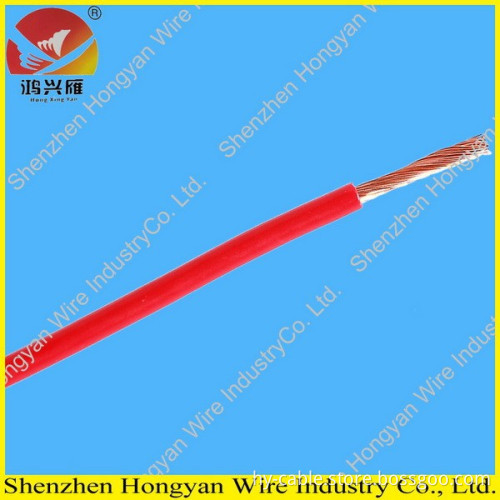

single core 0.75mm2 300/500V RV flexible electrical wire
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
single core 0.75mm2 300/500V RV flexible electrical wire
PVC insulated, non-sheathed, 300/500V, internal wiring cable
- Application: internal wiring
- Structure drawing:
3. Specification Data(Standard: GB/T 5023.3, IEC 60227-3):
|
Product Code |
Nominal cross-sectional |
Class of conductor |
Thickness of insulation |
Mean overall diameter |
|
|
Lower limit |
Upper limit |
||||
|
mm2 |
mm |
mm |
mm |
||
|
HY-GB-RV-1C0.5 |
1X0.5 |
5 |
0.6 |
2.1 |
2.5 |
|
HY-GB-RV-1C0.75 |
1X0.75 |
5 |
0.6 |
2.2 |
2.7 |
|
HY-GB-RV-1C1.0 |
1X1.0 |
5 |
0.6 |
2.4 |
2.8 |
- 4. Operating Characteristics:
- A. Working Temperature: 0oC ~ 70oC
- B. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
90oC PVC insulated, non-sheathed, 300/500V, internal wiring cable
Application: internal wiring
Specification Data(Standard: GB/T 5023.3, IEC 60227-3):
|
Product Code |
Nominal cross-sectional |
Class of conductor |
Thickness of insulation |
Mean overall diameter |
|
|
Lower limit |
Upper limit |
||||
|
mm2 |
mm |
mm |
mm |
||
|
HY-GB-RV-90-1C0.5 |
1X0.5 |
5 |
0.6 |
2.1 |
2.5 |
|
HY-GB-RV-90-1C0.75 |
1X0.75 |
5 |
0.6 |
2.2 |
2.7 |
|
HY-GB-RV-90-1C1.0 |
1X1.0 |
5 |
0.6 |
2.4 |
2.8 |
|
HY-GB-RV-90-1C1.5 |
1X1.5 |
5 |
0.7 |
2.8 |
3.4 |
|
HY-GB-RV-90-1C2.5 |
1X2.5 |
5 |
0.8 |
3.4 |
4.1 |
- 4. Operating Characteristics:
- A. Working Temperature: 0oC ~ 90oC
- B. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
PVC insulated, non-sheathed, 450/750V, general purpose flexible cable
Application: electric power, lighting and internal wiring
Structure drawing:
3. Specification Data(Standard: GB/T 5023.3, IEC 60227-3):
|
Product Code |
Nominal cross-sectional |
Class of conductor |
Thickness of insulation |
Mean overall diameter |
|
|
Lower limit |
Upper limit |
||||
|
mm2 |
mm |
mm |
mm |
||
|
HY-GB-RV-1C1.5 |
1X1.5 |
5 |
0.7 |
2.8 |
3.4 |
|
HY-GB-RV-1C2.5 |
1X2.5 |
5 |
0.8 |
3.4 |
4.1 |
|
HY-GB-RV-1C4.0 |
1X4.0 |
5 |
0.8 |
3.9 |
4.8 |
|
HY-GB-RV-1C6.0 |
1X6.0 |
5 |
0.8 |
4.4 |
5.3 |
|
HY-GB-RV-1C10 |
1X10 |
5 |
1.0 |
5.7 |
6.8 |
|
HY-GB-RV-1C16 |
1X16 |
5 |
1.0 |
6.7 |
8.1 |
|
HY-GB-RV-1C25 |
1X25 |
5 |
1.2 |
8.4 |
10.2 |
|
HY-GB-RV-1C35 |
1X35 |
5 |
1.2 |
9.7 |
11.7 |
|
HY-GB-RV-1C50 |
1X50 |
5 |
1.4 |
11.5 |
13.9 |
|
HY-GB-RV-1C70 |
1X70 |
5 |
1.4 |
13.2 |
16.0 |
|
HY-GB-RV-1C95 |
1X95 |
5 |
1.6 |
15.1 |
18.2 |
|
HY-GB-RV-1C120 |
1X120 |
5 |
1.6 |
16.7 |
20.2 |
|
HY-GB-RV-1C150 |
1X150 |
5 |
1.8 |
18.6 |
22.5 |
|
HY-GB-RV-1C185 |
1X185 |
5 |
2.0 |
20.6 |
24.9 |
|
HY-GB-RV-1C240 |
1X400 |
5 |
2.2 |
23.5 |
28.4 |
- 4. Operating Characteristics:
- A. Working Temperature: 0oC ~ 70oC
- B. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
