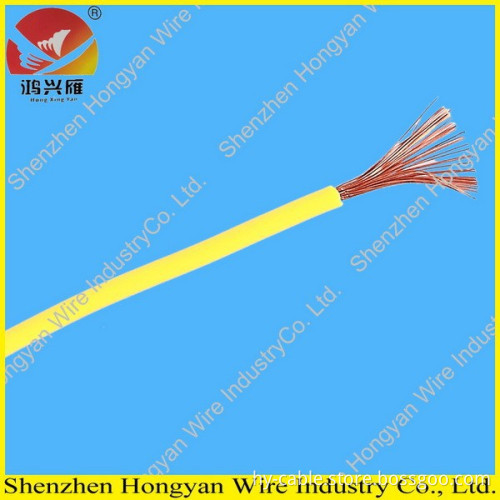

H05V-K 0.75mm flexible electrical wire
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
H05V-K 0.75mm flexible electrical wire
1.Application:
1.Uo/U:300/500V,450/750V
2.Standard applied: IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734
3.Max.working temperature: 70°C, can be 90°C,105°C as per requirement
4.Conductor: Class 5 fine annealed copper wires
5.Insulation: PVC
6.Cores:Single core
7.Cross section: 0.50 mm2~ 120 mm2
8.Armoure:no armore
9.Sheath:no sheath
10.Color: Brown, Grey, Black, Blue, Green/Yellow or others on request
11.Flame retardant or Fire resistance or LSOH are available.
12.Wooden Drum or as per request
13.Certification:CE/ ISO9001/ISO14001/OHSMS18001/ CCC/CB ETC
14.OEM can be available
15.Shenzhen Hongyan cable now runs pretty well all over the world,enjoy a very good reputation based on top quality and most competetive price and best service.
2.Structure drawing:
Class 5 Flexible Copper Conductor
PVC Insulation
3.Specification Data:
|
Nominal cross-sectional |
Class of conductor |
Radial Thickness of insulation |
overall diameter |
Weight |
|
|
mm2 |
mm |
mm |
KG |
||
|
1X0.5 |
16 |
0.6 |
2.2 |
8.8 |
|
|
1x0.75 |
24 |
0.6 |
2.4 |
12.1 |
|
|
1x1.0 |
32 |
0.6 |
2.5 |
14.7 |
|
|
1x1.5 |
48 |
0.7 |
3.1 |
21.3 |
|
|
1X2.5 |
77 |
0.8 |
3.7 |
33.0 |
|
|
1X4.0 |
56 |
0.8 |
4.3 |
53.3 |
|
|
1X6.0 |
84 |
0.8 |
5 |
74.9 |
|
|
1X10 |
84 |
1 |
6.4 |
122.9 |
|
|
1X16 |
126 |
1 |
8.5 |
182.8 |
|
|
1X25 |
196 |
1.2 |
10.1 |
284.0 |
|
|
1X35 |
276 |
1.2 |
12.4 |
395.0 |
|
|
1X50 |
396 |
1.4 |
14.2 |
545.1 |
|
|
1X70 |
360 |
1.4 |
15.7 |
747.5 |
|
1,100m/roll,200m/roll or according to customer's requirement
2,100m/drum,500m/drum or according to customer's requirement
# Big Factory with more than 15 years experience and 120 well trained workers
# Fast Delivery
# Strict ISO9001 Quality Control Process
# Manufacturer Price and delivery
# Professional International Sales Team with feedback for sure within 24 hours
