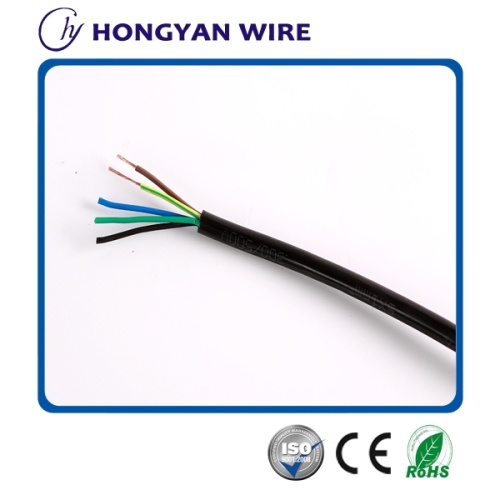

insulated pvc multicore cable
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
1. Application: use with appliances and equipment intended for domestic, office and similar environments
2. Structure drawing:
3. Specification Data(Standard: GB/T 5023.5, IEC 60227-5):
|
Product Code |
Nominal |
Class of |
Thickness of insulation |
Thickness of |
Mean overall diameter |
|
|
Lower limit |
Upper limit |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
||
|
HY-GB-RVV-2C0.75-5 |
2X0.75 |
5 |
0.6 |
0.8 |
5.7 |
7.2 |
|
HY-GB-RVV-2C0.75-5b |
2X0.75 |
5 |
0.6 |
0.8 |
3.7X6.0 |
4.5X7.2 |
|
HY-GB-RVV-2C1.0 |
2X1.0 |
5 |
0.6 |
0.8 |
5.9 |
7.5 |
|
HY-GB-RVV-2C1.0-b |
2X1.0 |
5 |
0.6 |
0.8 |
3.9X6.2 |
4.7X7.5 |
|
HY-GB-RVV-2C1.5 |
2X1.5 |
5 |
0.7 |
0.8 |
6.8 |
8.6 |
|
HY-GB-RVV-2C2.5 |
2X2.5 |
5 |
0.8 |
1.0 |
8.4 |
10.6 |
|
|
|
|
|
|
|
|
|
HY-GB-RVV-3C0.75 |
3X0.75 |
5 |
0.6 |
0.8 |
6.0 |
7.6 |
|
HY-GB-RVV-3C1.0 |
3X1.0 |
5 |
0.6 |
0.8 |
6.3 |
8.0 |
|
HY-GB-RVV-3C1.5 |
3X1.5 |
5 |
0.7 |
0.9 |
7.4 |
9.4 |
|
HY-GB-RVV-3C2.5 |
3X2.5 |
5 |
0.8 |
1.0 |
9.2 |
11.4 |
|
|
|
|
|
|
|
|
|
HY-GB-RVV-4C0.75 |
4X0.75 |
5 |
0.6 |
0.8 |
6.6 |
8.3 |
|
HY-GB-RVV-4C1.0 |
4X1.0 |
5 |
0.6 |
0.9 |
7.1 |
9.0 |
|
HY-GB-RVV-4C1.5 |
4X1.5 |
5 |
0.7 |
1.0 |
8.4 |
10.5 |
|
HY-GB-RVV-4C2.5 |
4X2.5 |
5 |
0.8 |
1.1 |
10.1 |
12.5 |
|
|
|
|
|
|
|
|
|
HY-GB-RVV-5C0.75 |
5X0.75 |
5 |
0.6 |
0.9 |
7.4 |
9.3 |
|
HY-GB-RVV-5C1.0 |
5X1.0 |
5 |
0.6 |
0.9 |
7.8 |
9.8 |
|
HY-GB-RVV-5C1.5 |
5X1.5 |
5 |
0.7 |
1.1 |
9.3 |
11.6 |
|
HY-GB-RVV-5C2.5 |
5X2.5 |
5 |
0.8 |
1.2 |
11.2 |
13.9 |
4. Operating Characteristics:
A. Working Temperature: 0oC ~ 70oC
B. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
5. Warmly welcome to contact us if you want to know more details, thanks !
