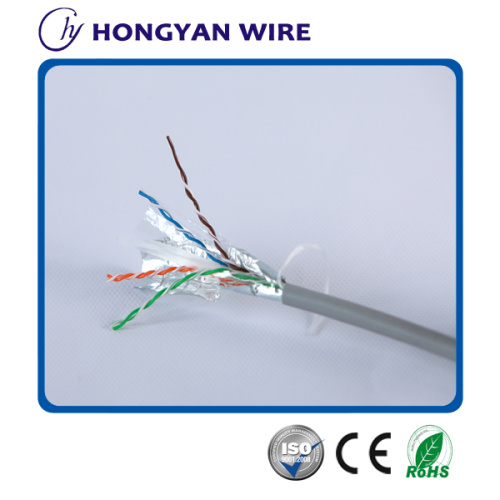

Cat 6 FTP Single Shielded Cable
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Pack/Packs
- Min. Order:
- 100 Pack/Packs
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 20 kilometer/ day |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | RoHs, ISO9001,CCC |
| Transportation: | Ocean,Land,Air |
Description
Category 6 Cable (Cat 6) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 25MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
Standards
ISO/IEC11801
ANSI/EIA/TIA-568-B.2-1
Conductor
Class 1 solid plain copper
Conductor Size:
4 x 2 x 0.57mm (23AWG)
Insulation:
HDPE (High Density Polyethylene)
Drain Wire:
Tinned Copper
Jacket:
PVC (Polyvinyl Chloride)
LSZH (Low Smoking Zero Halogen)
Core Identification:
Blue, white/blue;
Orange, white/orange;
Green, white/green;
Brown, white/brown
Construction
Specification
Conductor
Thick.
of Insulation
mm
Nominal
O.D.
mm
Nominal
Weight
Kgs/305m
box
23AWG
1.10±0.005
8.0±0.2
17.5
Electrical Characteristics:
Max. Conductor Resistance: 7.0Ω/100m
Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.3%
Min. Propagation Velocity: 0.622C m/s
Min. Conductor Elongation: 20%
Characteristic Impedance: 100±15Ω
Min. Insulation Resistance: 7000MΩ/km
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
1 |
1.9 |
74.0 |
72.3 |
20.0 |
68.0 |
65.0 |
|
4 |
3.7 |
65.0 |
63.3 |
23.0 |
56.0 |
53.0 |
|
8 |
5.3 |
60.7 |
48.8 |
24.5 |
49.9 |
46.9 |
|
10 |
5.9 |
59.0 |
57.3 |
25.0 |
48.0 |
45.0 |
|
16 |
7.5 |
56.0 |
54.2 |
25.0 |
43.9 |
40.9 |
|
20 |
8.4 |
55.0 |
52.6 |
25.0 |
42.0 |
39.0 |
|
25 |
9.5 |
53.3 |
41.3 |
24.3 |
40.0 |
37.0 |
|
31.25 |
10.6 |
52.0 |
49.9 |
23.6 |
38.1 |
35.0 |
|
62.50 |
15.4 |
47.0 |
45.4 |
21.5 |
32.1 |
29.1 |
|
100 |
19.8 |
44.0 |
42.3 |
20.1 |
28.0 |
25.0 |
|
200 |
29.0 |
40.0 |
37.8 |
18.0 |
22.0 |
19.0 |
|
250 |
32.8 |
38.0 |
36.3 |
17.3 |
20.0 |
17.0 |
Packing:
305 meters per inner box,
2 boxes per out box
